Κεραία Δικτύου Allnet 868MHz 14dbi (N-Female) YAGI ANT-868-14dbi-Yagi LoRA HELIUM IoT
| Installment plan | Amount / month |
|---|---|
| 2 | 95,90 € |
| 4 | 48,20 € |
| 6 | 32,31 € |
| 8 | 24,36 € |
| 10 | 19,59 € |
| 12 | 16,41 € |
| 18 | 11,11 € |
| 24 | 8,47 € |
| 36 | 5,82 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

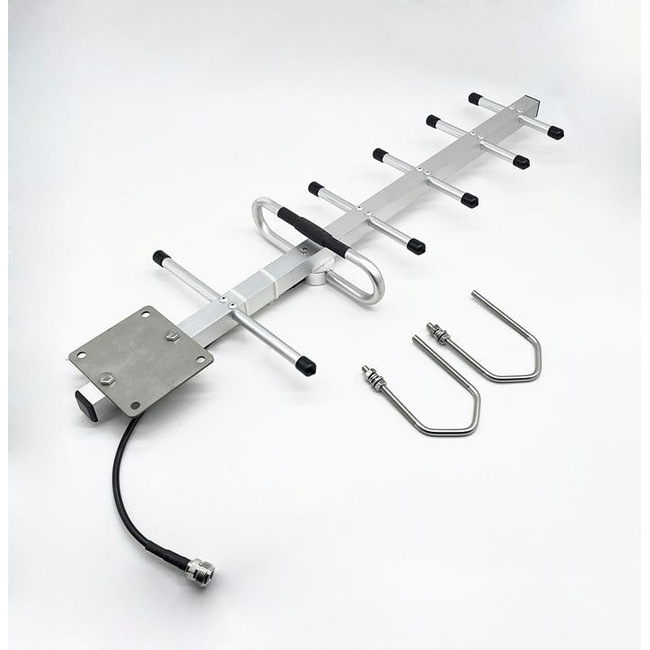

The ALLNET Antenne 868MHz 14dbi Antenne (N-Female) YAGI ANT-868-14dbi-Yagi LoRA HELIUM IoT is a high-gain Yagi antenna specially designed for use in LoRa, Helium Network, and IoT applications. This advanced antenna offers several outstanding features that enhance its performance.
The ALLNET 868MHz 14dbi Yagi antenna operates within the 860-896MHz frequency band, making it perfect for applications requiring effective signal transmission and reception. Its robust construction ensures durability under various environmental conditions.
- High Gain: With a gain of 14dbi, this antenna excels at long-range communication.
- Narrow Beam Angle:
- Horizontal Beamwidth: 33°
- Vertical Beamwidth: 30°
Additional features include:
- Impedance: 50 Ohm
- VSWR: ?1.4 for optimal signal transfer
- Max Power: 100 watts, suitable for high-power applications
With a working temperature range of -45°C to +75°C and a wind load capacity of up to 200km/h, the ALLNET Yagi antenna is engineered for reliability in challenging outdoor settings.
Specifications
-
Frequency Range
- 860-896MHz
-
Gain
- 14dbi
-
Horizontal Beamwidth
- 33°
-
Vertical Beamwidth
- 30°
-
Impedance
- 50 Ohm
-
VSWR
- ?1.4
-
Max Power
- 100 watts
-
Working Temperature Range
- -45°C to +75°C
-
Storage Temperature Range
- -50°C to +75°C
-
Wind Load
- 200km/h
-
Dimensions
- 1297x202x55mm
-
Weight
- 1.2kg
-
Connector
- N-Type Female
-
Radome
- Fiberglass, Dia 20mm
