The SPARKLE Intel® Arc™ B580 ROC Luna OC Ultra graphics card is designed for high-performance graphics tasks with cutting-edge specifications.

It boasts a remarkable 12GB GDDR6 memory that operates on a robust 192-bit memory interface, ensuring a memory bandwidth of 456 GB/s. This powerful card features a GPU that reaches a peak clock speed of 2800 MHz, making it ideal for demanding applications.

Key Technical Specifications:

• GPU Clock Speed: 2800 MHz (OC Ultra Design)
• Memory: 12GB GDDR6
• Memory Interface: 192-bit
• Memory Bandwidth: 456 GB/s
• Ray Tracing Units: 20
• Intel XMX Engines: 160
• GPU Peak TOPS (Int8): 233
• PCI Express: PCIe 4.0 x8
• Total Board Power (TBP): 210 Watts

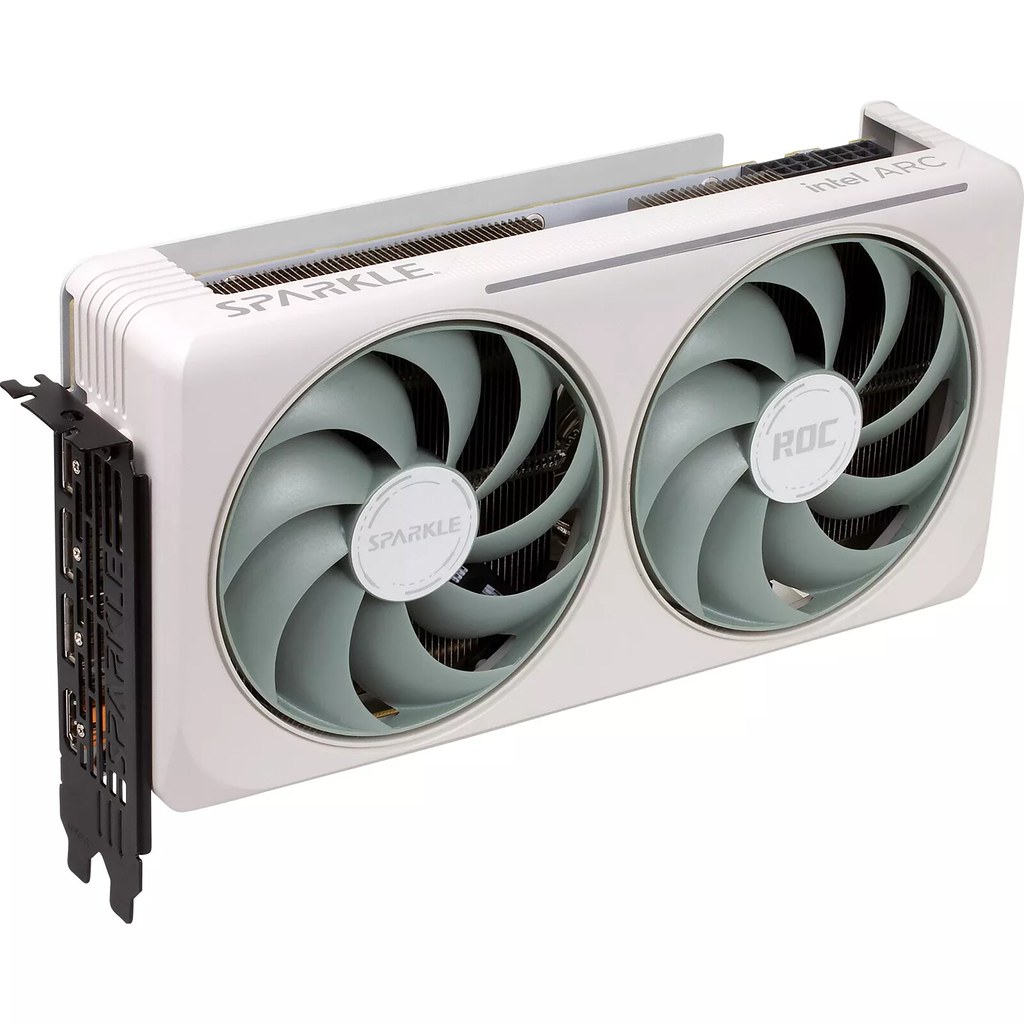

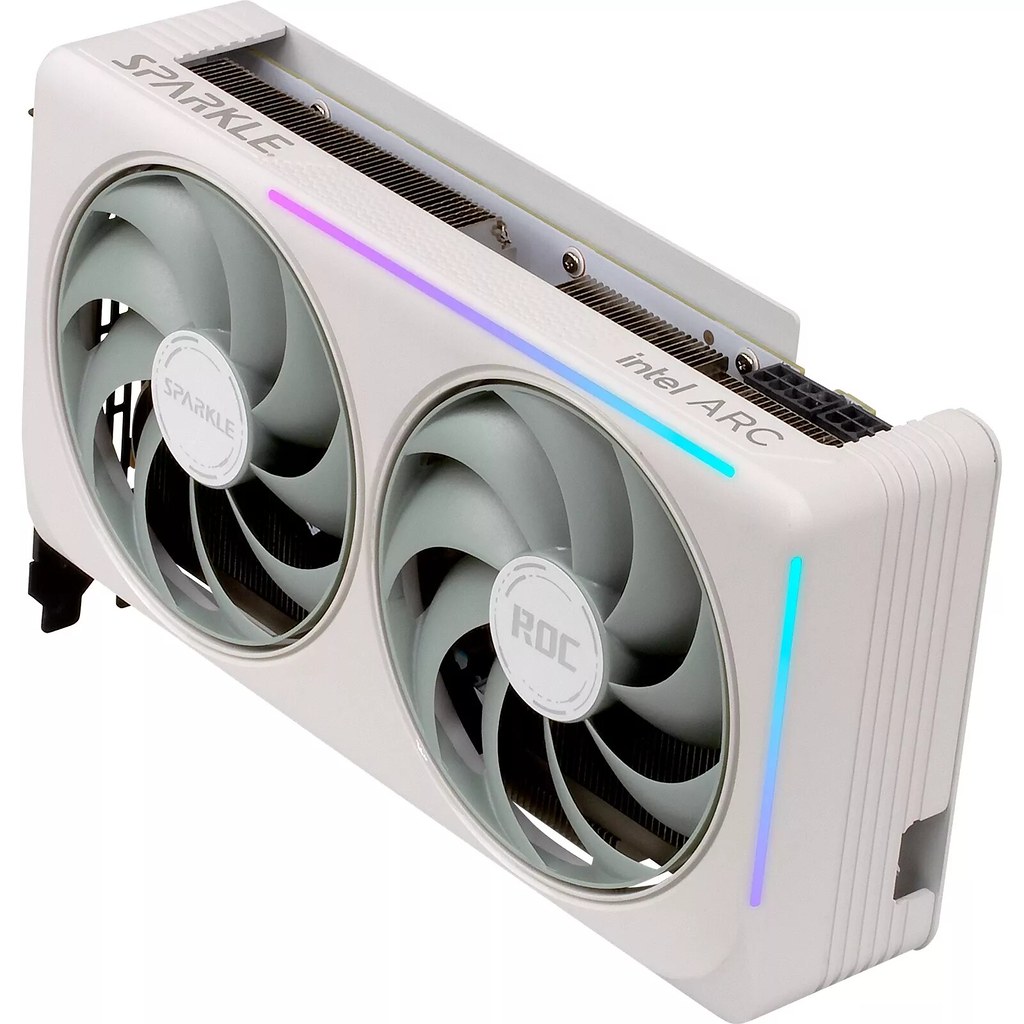

The innovative cooling solution features 2x 105mm Fluid Dynamic Bearing (FDB) fans and a 2.2-slot cooler design, ensuring effective heat dissipation. Additionally, it is adorned with customizable ARGB lighting that can be controlled via SPARKLE software, enhancing its aesthetic appeal.

This graphics card supports a variety of APIs including DirectX 12 Ultimate and Vulkan 1.3, and offers maximum resolution capabilities of 8K at 120Hz HDR with DSC.
