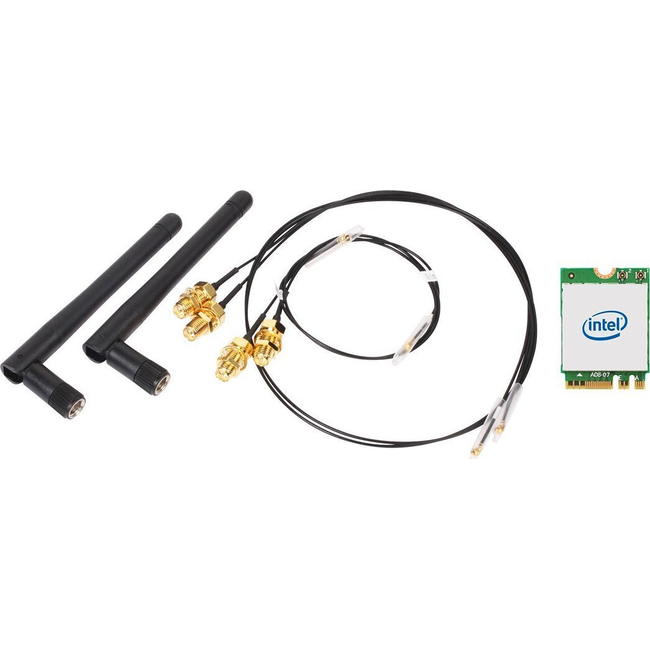

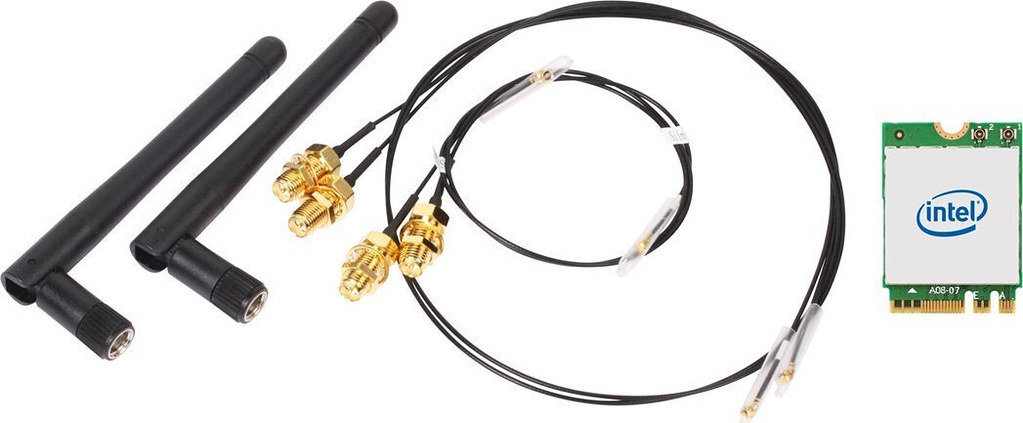

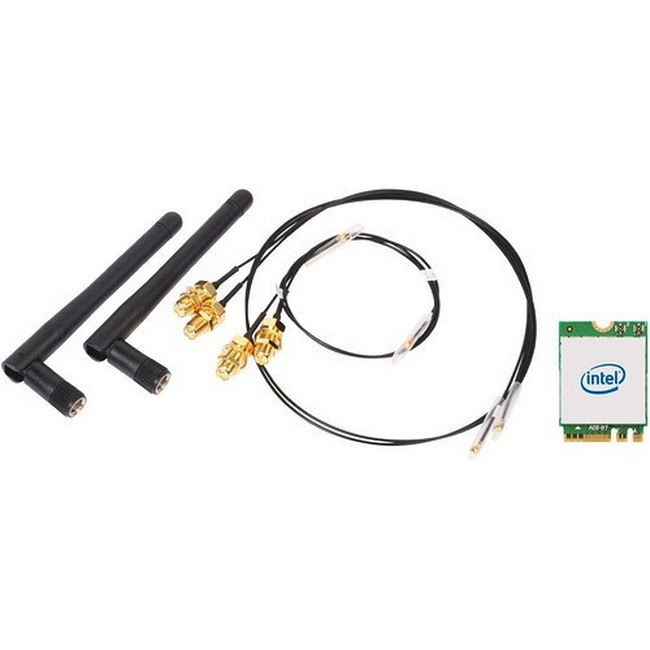

The Shuttle WLN-M3 Wlan Kit M.2 is an exceptional wireless networking solution designed to enhance connectivity for devices using the M.2 2230 interface. This comprehensive kit comprises of an Intel AX200 M.2-2230 Wi-Fi 6 (802.11ax) card, two external dipole antennas, and 10 cm antenna cables.

Technical specifications and features include:

• Wireless Standard: Wi-Fi 6 (802.11ax) certification, enabling high-efficiency wireless communication.
• Maximum Data Rate: Up to 2400 Mbps using 2x2 MU-MIMO technology and 1024QAM modulation with 160 MHz bandwidth.
• Frequency Bands: Functionality across both 2.4 GHz and 5 GHz bands, providing flexibility and enhanced performance.
• Security Features: Supports a range of wireless security protocols including WPA2 Personal and Enterprise, WPA3, and AES encryption.
• Bluetooth Support: Includes Bluetooth 5.1 functionality for seamless integration.
• Physical Connections:
  • M.2 2230 A and E Key interface for easy compatibility.
  • Connector types: RP-SMA Pigtail male and MHF IV (I-PEX4).
• Antennas: Two external omnidirectional dipole antennas measuring approximately 108 mm in length with a diameter of 7.8 to 10 mm.
• Cable Length: Each antenna is equipped with a 10 cm cable for optimal signal positioning.

This wireless LAN kit is perfect for Mini PCs and other compact devices, delivering high-performance networking capabilities.
