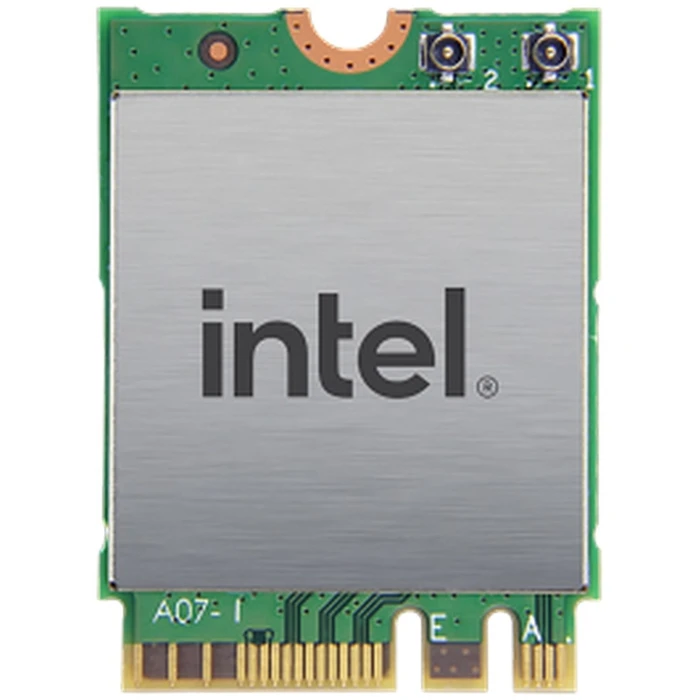

Κάρτα Δικτύου Intel Wi-Fi 6 AX200 M.2 2230 / M.2 1216
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Κάρτα Δικτύου Planet 2-Port 10/100/1000T 802.3at PoE+ PCI-E (60W PoE)
Κάρτα Δικτύου Mercusys Wifi & Bluetooth Ma30E, Ac1200, PCIe, Ver 1.0
Κάρτα Δικτύου TP-Link TP-Link WL 1300 USB Dual Band Archer T4U v3 AC1300
Κάρτα Δικτύου Fujitsu PLAN CP Intel I350-T2 - PCIe 2.1 x4 - Gigabit Ethernet x 2
Κεραία WiFi BrightSign Dual Antenne WiFi/Bluetooth Modul for Series 5
The Intel Wi-Fi 6 AX200 M.2 2230 / M.2 1216 is a high-performance wireless networking module designed to support the latest Wi-Fi 6 (802.11ax) standard. This module is optimized for delivering faster speeds, lower latencies, and improved network capacity in dense environments.
Key Features
- Wi-Fi 6 Technology: The AX200 module supports 2x2 Wi-Fi 6 technology, enabling data rates of up to 2.4 Gbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band.
- Dual-Band Support: Operates on both 2.4 GHz and 5 GHz bands for broader coverage and better performance.
- MU-MIMO Support: Provides simultaneous data transmission to multiple devices for enhanced network efficiency.
- Bluetooth 5.2: Integrated support for wireless connectivity with various peripherals.
- Form Factors: Available in M.2 2230 and M.2 1216, suitable for many device configurations.
The module operates reliably within a temperature range of 0°C to 80°C, ensuring performance in diverse environments. Security features include support for WPA3 and other protocols to ensure robust connections. Compatible with major operating systems such as Microsoft Windows and Linux, it proves versatile for different setups.
-
Antenna2x2
-
TX/RX Streams2x2
-
Bands2.4 GHz, 5 GHz (160 MHz)
-
Max SpeedUp to 2.4 Gbps (5 GHz)
-
Wi-Fi CertifiedWi-Fi 6 (802.11ax)
-
BluetoothBluetooth 5.2
-
Form FactorM.2 2230; M.2 1216
-
DimensionsM.2 2230: 22 x 30 x 2.4 mm; M.2 1216: 12 x 16 x 1.65 mm
-
WeightM.2 2230: 2.83 g ± 0.3 g; M.2 1216: 0.67 g ± 0.1 g
-
Operating Temperature0°C to 80°C
-
Supported Operating SystemsWindows 11, Windows 10, Linux, Google Chrome OS
-
Security MethodsWPA3 (pending OS support), WPA2, WPA3, 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2
-
Advanced TechnologiesMU-MIMO, OFDMA, Target Wake Time (TWT), Spatial Reuse
Ratings
Description
The Intel Wi-Fi 6 AX200 M.2 2230 / M.2 1216 is a high-performance wireless networking module designed to support the latest Wi-Fi 6 (802.11ax) standard. This module is optimized for delivering faster speeds, lower latencies, and improved network capacity in dense environments.
Key Features
- Wi-Fi 6 Technology: The AX200 module supports 2x2 Wi-Fi 6 technology, enabling data rates of up to 2.4 Gbps on the 5 GHz band and up to 574 Mbps on the 2.4 GHz band.
- Dual-Band Support: Operates on both 2.4 GHz and 5 GHz bands for broader coverage and better performance.
- MU-MIMO Support: Provides simultaneous data transmission to multiple devices for enhanced network efficiency.
- Bluetooth 5.2: Integrated support for wireless connectivity with various peripherals.
- Form Factors: Available in M.2 2230 and M.2 1216, suitable for many device configurations.
The module operates reliably within a temperature range of 0°C to 80°C, ensuring performance in diverse environments. Security features include support for WPA3 and other protocols to ensure robust connections. Compatible with major operating systems such as Microsoft Windows and Linux, it proves versatile for different setups.
Technical Specifications
-
Antenna2x2
-
TX/RX Streams2x2
-
Bands2.4 GHz, 5 GHz (160 MHz)
-
Max SpeedUp to 2.4 Gbps (5 GHz)
-
Wi-Fi CertifiedWi-Fi 6 (802.11ax)
-
BluetoothBluetooth 5.2
-
Form FactorM.2 2230; M.2 1216
-
DimensionsM.2 2230: 22 x 30 x 2.4 mm; M.2 1216: 12 x 16 x 1.65 mm
-
WeightM.2 2230: 2.83 g ± 0.3 g; M.2 1216: 0.67 g ± 0.1 g
-
Operating Temperature0°C to 80°C
-
Supported Operating SystemsWindows 11, Windows 10, Linux, Google Chrome OS
-
Security MethodsWPA3 (pending OS support), WPA2, WPA3, 802.1X EAP-TLS, EAP-TTLS/MSCHAPv2
-
Advanced TechnologiesMU-MIMO, OFDMA, Target Wake Time (TWT), Spatial Reuse
