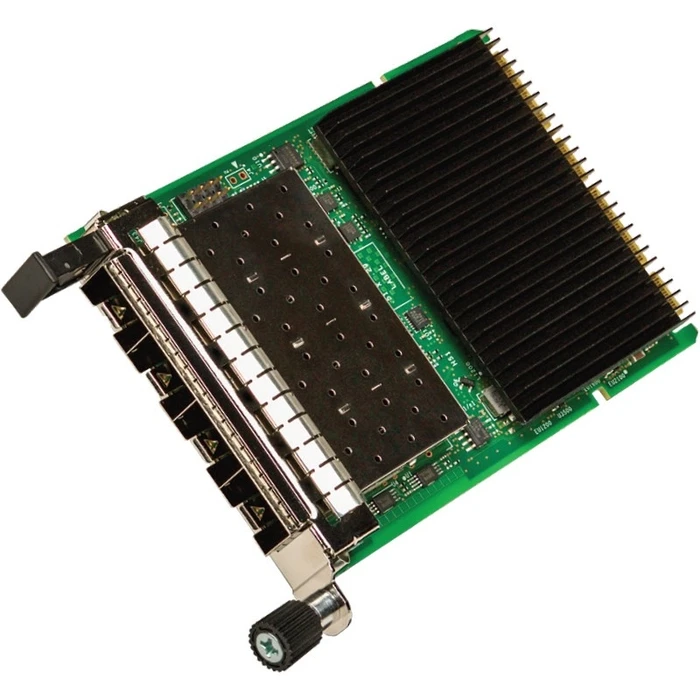

The Intel E810-XXVDA4 OCP 3.0 Mezzanine Network Adapter is a high-performance network adapter meticulously crafted for server applications, particularly optimized for Cloud, Enterprise, and Communications settings. This overview elucidates its key technical specifications and features.

Product Overview
The Intel E810-XXVDA4, a part of the Intel Ethernet 800 Series, is designed to enhance application efficiency and elevate network performance through innovative capabilities. It is geared towards various sectors, utilizing the OCP NIC 3.0 specification for standardized design and seamless deployment.

Key Features:

• Quad Port Configuration: Four 25GbE SFP28 ports offering multiple high-speed links, supporting data rates of 25/10/1GbE.
• PCIe 4.0 Compatibility: Functions seamlessly on a PCIe 4.0 x16 slot, ensuring optimal data transfer speeds.
• Intel Virtualization Technology for Connectivity (VT-c): Improves network performance in virtualized settings.

Advanced Technologies:

• iWARP/RDMA: Facilitates high-speed, low-latency connections for Cloud storage.
• Dynamic Device Personalization (DDP): Elevates packet processing efficiency and lessens CPU load.
• Application Device Queues (ADQ): Minimizes latency while boosting application throughput.
• IEEE 1588 PTP v2 Support: Ensures clock synchronization across 5G networks.

Manageability and Power Consumption:

• Manageability: Supports efficient monitoring through RBT and MCTP protocols.
• Power Consumption: Typical consumption is 14.6 W for DACs and 22.3 W for optics.

Compliance and Certifications
This adapter adheres to multiple international standards, ensuring reliability and quality.

Form Factor and Dimensions
Designed to fit the OCP NIC 3.0 Small Form Factor, dimensions are 116.6 mm x 76 mm.

Summary:
The Intel E810-XXVDA4 is an exemplary choice for modern data center demands, offering high-speed connectivity and efficient network management.
