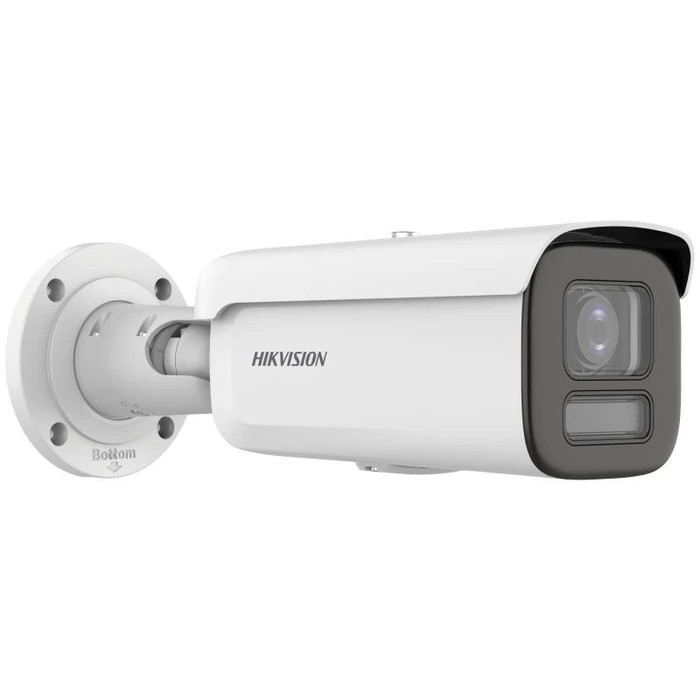

Κάμερα Παρακολούθησης Hikvision DS-2CD2647G2HT-LIZS(2.8-12mm Bullet 2688 x 1520

Technical Specifications

• Iris
  Yes
• Form factor
  Bullet
• IK code
  IK10
• Housing material
  Metal
• International Protection (IP) code
  IP67
• Protection features
  Water resistant
• Product colour
  White
• Mounting type
  Wall
• Power source type
  DC, PoE
• Power consumption (max)
  14.5 W
• DC output current
  1.21 A
• DC output voltage
  12
• Power consumption (Power over Ethernet (PoE))
  18 W
• Audit log
  Yes
• Security algorithms
  EAP-TLS
• Pixel counter
  Yes
• Network access storage (NAS)
  Yes
• Password reset via email
  Yes
• Digest authentication
  Yes
• Human and vehicle targets classification
  Yes
• IP address filtering
  Yes
• Automatic Network Replenishment (ANR)
  Yes
• Alarm input channels
  1
• HTTPS encryption
  Yes
• Video motion detection
  Yes
• Alarm output channels
  1
• Password protection
  Yes
• Privacy protection
  Yes
• Digital watermark
  Yes
• Mirror
  Yes
• Active tampering alarm
  Yes
• Heartbeat
  Yes
• Storage temperature (T-T)
  -30 - 60 °C
• Storage relative humidity (H-H)
  0 - 95%
• Operating temperature (T-T)
  -30 - 60 °C
• Operating relative humidity (H-H)
  0 - 95%
• Reset button
  Yes
• Web-based management
  Yes
• Behavior analysis
  Intrusion detection, Line crossing detection, Region entrance detection, Region exiting detection
• Height
  95.7 mm
• Length
  298 mm
• Width
  97.9 mm
• Weight
  1.08 kg
• Ethernet interface type
  Fast Ethernet
• Number of simultaneous live view channels
  6 channels
• User access level
  Administrator, Operator, User
• Ethernet LAN
  Yes
• Wi-Fi
  No
• Quality of Service (QoS) support
  Yes
• Bluetooth
  No
• Client interoperability
  iVMS-4200, Hik-Connect, Hik-Central
• Number of users
  32 user(s)
• Live view
  Yes
• Built-in light
  Yes
• Type
  IP security camera
• Wide Dynamic Range (WDR)
  Yes
• Day/night mode
  Yes
• Infrared (IR) cut-off filter
  Yes
• Placement supported
  Outdoor
• Alarm input/output
  Yes
• Connectivity technology
  Wired
• Number of languages
  33
• Dynamic range
  130 dB
• Languages support
  Multi
• Package width
  386 mm
• Package weight
  1.64 kg
• Package depth
  190 mm
• Package height
  180 mm
• Number of cameras
  1
• Audio formats supported
  G.711
• Audio output channels
  1.0 channels
• Bit rate range
  8 - 320 Kbit/s
• Built-in microphone
  Yes
• Sample rates
  8 - 48 kHz
• Audio input channels
  1.0 channels
• Signal-to-Noise Ratio (SNR)
  52 dB
• Compatible memory cards
  MicroSD (TransFlash)
• Card reader integrated
  Yes
• Built-in HDD
  No
• Maximum memory card size
  512 GB
• Ethernet LAN (RJ-45) ports
  1
• Terminal block port
  Yes
• Pan range
  0 - 355°
• Minimum illumination
  0 lx
• Tilt angle range
  0 - 90°
• Angle of rotation
  360°
• Lens viewing angle, horizontal
  114.6 - 41.8°
• Number of Privacy masking areas
  4
• Camera shutter speed
  1/3 - 1/100000 s
• Lens viewing angle, vertical
  59.3 - 23.6°
• Lens viewing angle, diagonal
  141.3 - 48.1°
• Optical sensor size
  25.4 / 1.8 mm (1 / 1.8")
• Sensor type
  CMOS
• Progressive scan
  Yes
• Number of sensors
  1
• Supported graphics resolutions
  2688 x 1520
• Total megapixels
  4 MP
• Frame rate
  30 fps
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Video compression formats
  H.265+
• Noise reduction technology
  3D noise reduction
• Region of Interest (ROI) encoding
  Yes
• Image quality adjustment
  Contrast
• Maximum resolution
  2688 x 1520 pixels
• Bit rate
  32 Kbps - 8 Mbps
• Privacy masking
  Yes
• Bit rate control
  Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
• Video streaming
  Yes
• Noise reduction
  Yes
• LED type
  IR
• Night vision distance
  60 m
• Night vision
  Yes
• Infra-red wavelength
  850 nm
• Identify distance (tele)
  14.9 m
• Detect distance (tele)
  149 m
• Identify distance (wide)
  6 m
• Detect distance (wide)
  60 m
• Focal length range
  2.8 - 12 mm
• Recognize distance (tele)
  29.8 m
• Recognize distance (wide)
  12 m
• Observe distance (tele)
  59.1 m
• Observe distance (wide)
  23.8 m
• Maximum aperture number
  1.2
• Number of lenses
  1
• Warnings
  The product contains electronic components; do not dispose of with the normal household waste.
• Sustainability compliance
  Yes
• Compliance certificates
  RoHS
