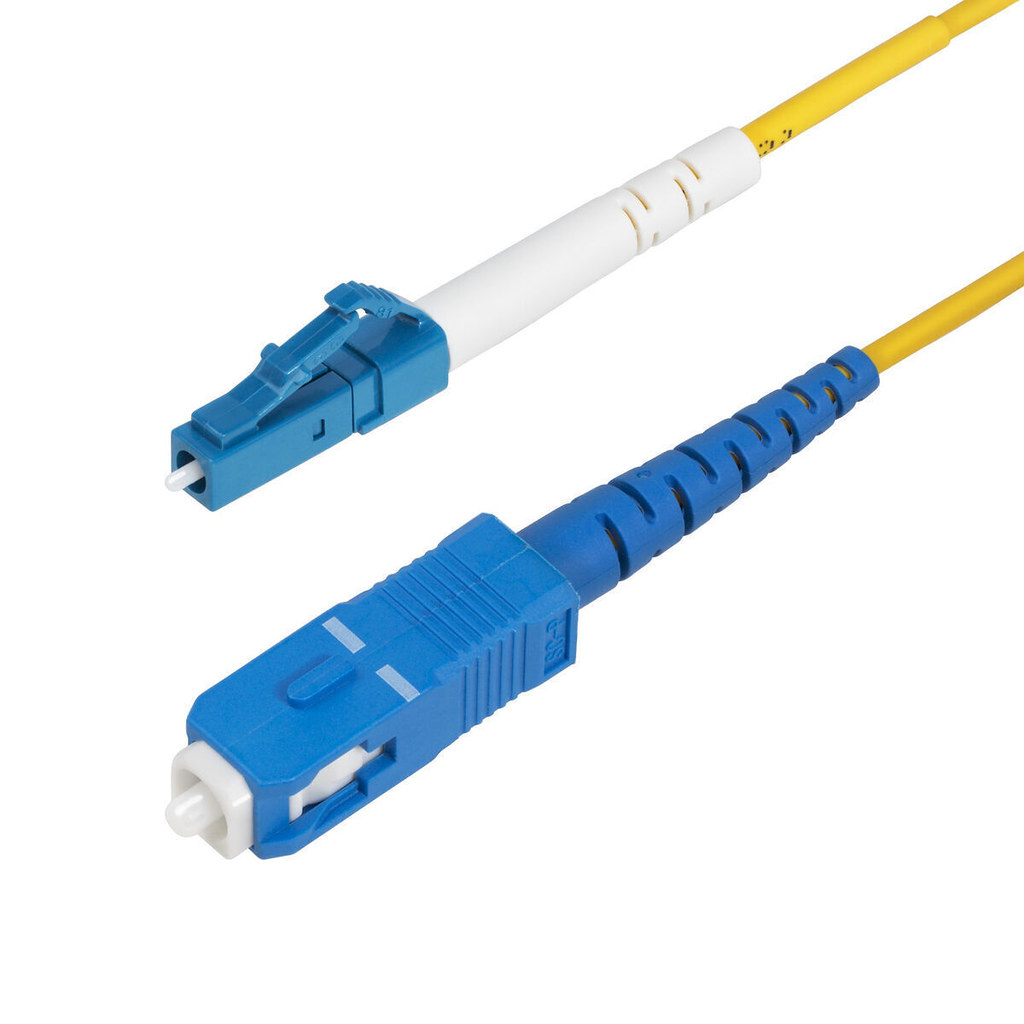

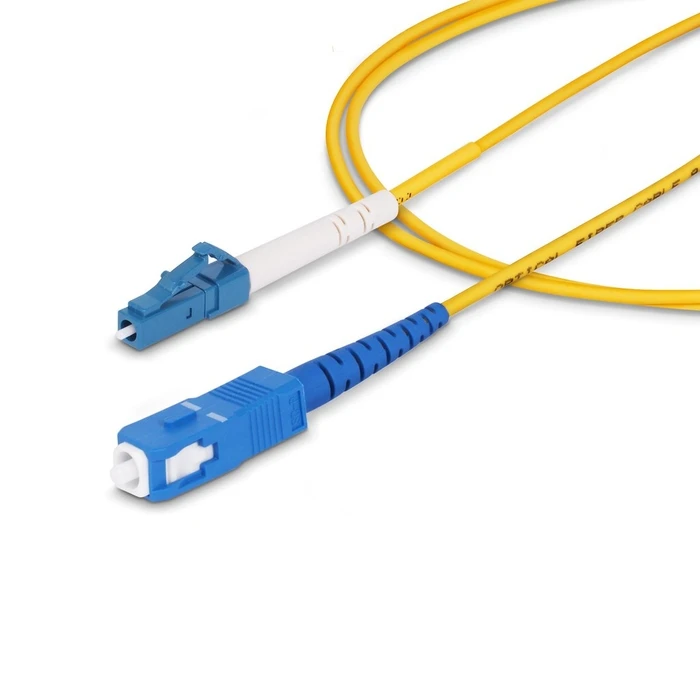

The 5M LC TO SC OS2 Fiber Cable is a high-performance singlemode fiber optic patch cable designed for optimal data transmission in various environments. With a focus on reliability and efficiency, this cable is ideal for telecommunications and data center applications.

Key Features:

• Cable Length: 5 meters (16.4 feet) ensures flexibility for network setups.
• Fiber Type: OS2 singlemode with a 9/125 µm core/cladding diameter, perfect for long-distance applications.
• Connector Types: LC Duplex and SC Duplex connectors, utilizing Ultra Physical Contact (UPC) polish for superior performance.
• Performance: The cable supports 10 Gigabit Ethernet up to 10 km at 1310 nm and up to 40 km at 1550 nm wavelengths.

Loss Specifications:

• Typical connector insertion loss: 0.30 dB
• Maximum connector loss: 0.50 dB
• Typical return loss: -55 dB to minimize signal reflection.

Construction:

The cable jacket is typically rated LSZH or OFNR for compliance with safety standards, often featuring a yellow color for easy identification. Its durable construction enhances longevity, making it a reliable choice for high-speed connections.
