Sku: 1117503784

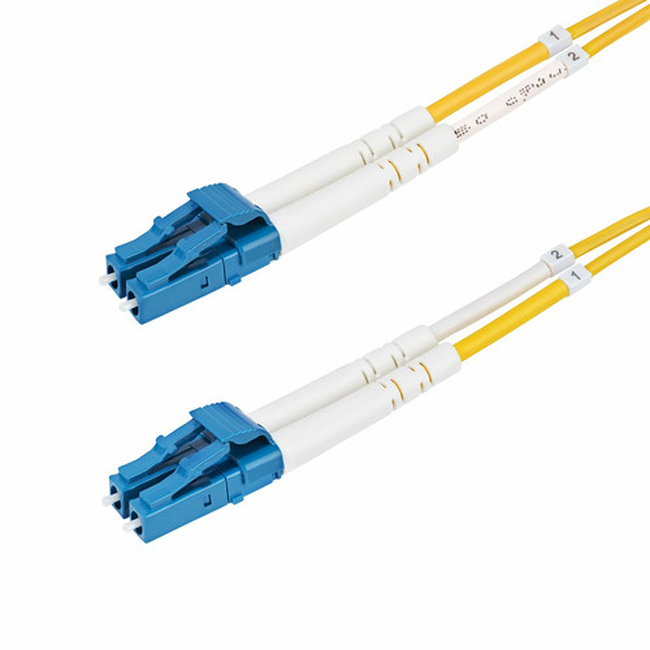

Καλώδιο Οπτικής Ίνας StarTech 5M Lc To Lc Os2 Fiber
46,57 €
Up to 36 instalments by credit card x 1,45€ / month
| Installment plan | Amount / month |
|---|---|
| 2 | 23,95 € |
| 4 | 12,04 € |
| 6 | 8,07 € |
| 8 | 6,08 € |
| 10 | 4,89 € |
| 12 | 4,10 € |
| 18 | 2,78 € |
| 24 | 2,11 € |
| 36 | 1,45 € |
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description
The 5M LC to LC OS2 Fiber Cable is a high-performance solution designed for optimal data transmission over long distances in networking applications.
This cable offers remarkable features:
- Length: 5 meters (16.40 feet) suitable for moderate to long-distance connections.
- Fiber Type: Utilizes Corning 9/125 OS2 single-mode fiber, providing high bandwidth and minimal signal loss.
- Connectors: Dual LC duplex connectors with ultra-physical contact (UPC) polish to enhance signal quality.
Technical specifications make this cable stand out:
- Core and Cladding: 9 micron core diameter and 125 micron cladding ensuring efficient data transfer.
- Connector Loss: Maximum loss is 0.50 dB and typical loss is 0.30 dB, maintaining signal integrity.
- Return Loss: -55 dB for high signal quality with minimal reflections.
- Jacket Material: OFNR rated PVC jacket with a diameter of 2.0 mm.
- Bend Radius: Recommended bend radius is 50 mm for protection during installation.
This cable is ideally suited for high-speed applications such as Fibre Channel, fast Ethernet, and 10 Gigabit Ethernet, making it a versatile choice for various environments.
Specifications
-
Length
- 5 meters
-
Fiber Type
- Corning 9/125 OS2 single-mode
-
Core Diameter
- 9 microns
-
Cladding Diameter
- 125 microns
-
Maximum Connector Loss
- 0.50 dB
-
Typical Connector Loss
- 0.30 dB
-
Typical Return Loss
- -55 dB
-
Jacket Material
- OFNR rated PVC
-
Jacket Diameter
- 2.0 mm
-
Bend Radius
- 50 mm
-
Installation Tensile Load
- 100 N
-
Long-term Tensile Load
- 50 N
