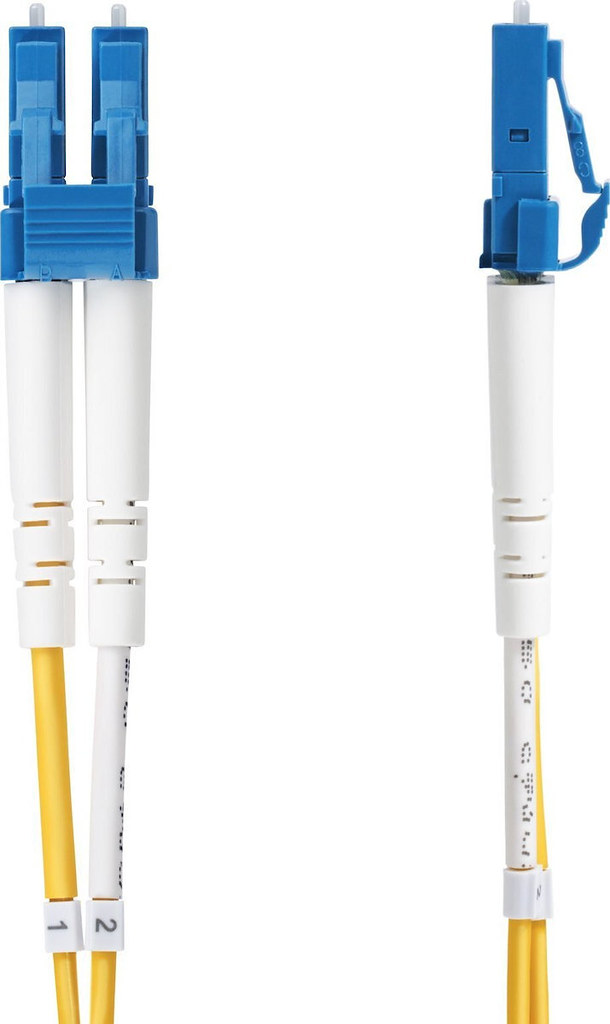

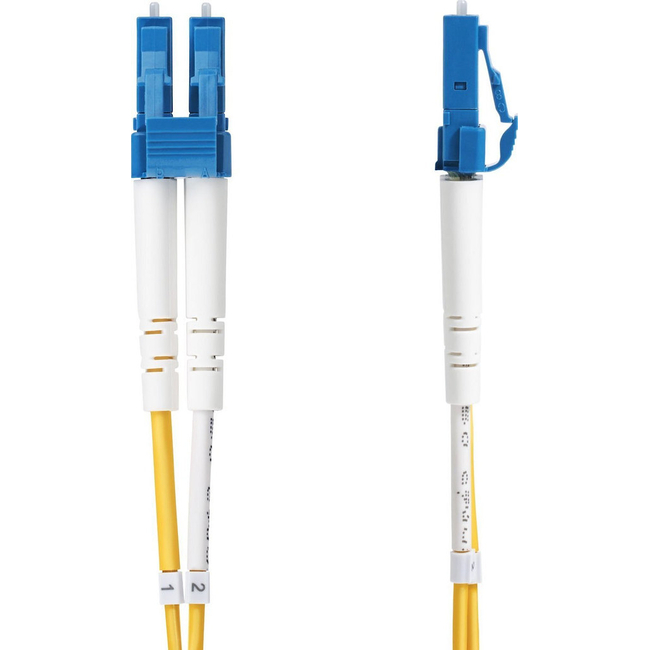

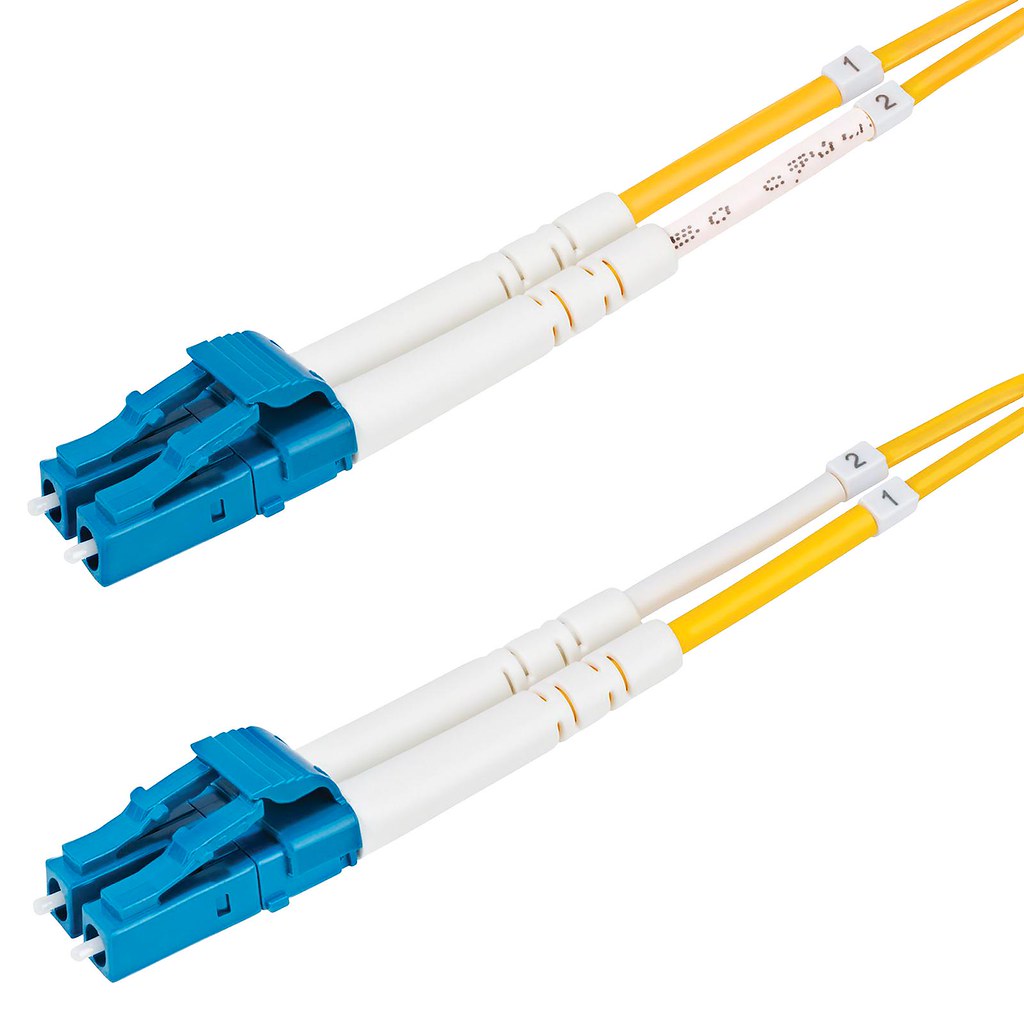

The 1M LC TO LC OS2 FIBER CABLE is a high-quality, single-mode fiber optic patch cable designed for efficient and reliable data transmission over long distances, particularly suitable for gigabit Ethernet and other high-bandwidth applications.
This cable features LC to LC connectors, which are compact connectors with 1.25mm ceramic ferrules, ensuring accurate alignment and minimal optical loss. The fiber core is made of 9/125 microns single-mode OS2 bend-insensitive fiber, compliant with ITU-T G.657.A2/B2 standards. This bend insensitivity allows the cable to maintain high performance, even when routed in tight spaces and around corners.
Key features include:
- Simplex design, with a yellow outer jacket indicating single-mode fiber.
- Low insertion loss and high return loss, enhancing overall signal quality.
- Durable LSZH jacket, which reduces toxic fumes in case of fire.
This fiber optic cable is designed for single-mode optical transmission at typical wavelengths of 1310 nm and 1550 nm, making it ideal for long-distance communications. Its standard design offers flexibility for diverse patching scenarios, making it perfect for network engineers and IT professionals looking for high-quality fiber connectivity.
-
Fiber TypeSingle-mode OS2 (9/125 µm)
-
Cable Length1 Meter
-
Connector TypeLC to LC Duplex
-
Connector Ferrule Size1.25 mm Ceramic
-
Polish TypeUPC to UPC
-
Fiber Grade/StandardsITU-T G.657.A2/B2 Bend Insensitive
-
Jacket ColorYellow
-
Cable Jacket DiameterApprox. 3.0 mm LSZH
-
Bend Radius7.5 mm
-
Operating Temperature Range-20 to +70 °C
-
Typical Connector Loss~0.30 dB
-
Max Connector Loss0.50 dB
-
Return Loss~-55 dB
-
PolarityA (Tx) to B (Rx)
-
ApplicationGigabit Ethernet, Telecom, Data Centers
Ratings
Description
The 1M LC TO LC OS2 FIBER CABLE is a high-quality, single-mode fiber optic patch cable designed for efficient and reliable data transmission over long distances, particularly suitable for gigabit Ethernet and other high-bandwidth applications.
This cable features LC to LC connectors, which are compact connectors with 1.25mm ceramic ferrules, ensuring accurate alignment and minimal optical loss. The fiber core is made of 9/125 microns single-mode OS2 bend-insensitive fiber, compliant with ITU-T G.657.A2/B2 standards. This bend insensitivity allows the cable to maintain high performance, even when routed in tight spaces and around corners.
Key features include:
- Simplex design, with a yellow outer jacket indicating single-mode fiber.
- Low insertion loss and high return loss, enhancing overall signal quality.
- Durable LSZH jacket, which reduces toxic fumes in case of fire.
This fiber optic cable is designed for single-mode optical transmission at typical wavelengths of 1310 nm and 1550 nm, making it ideal for long-distance communications. Its standard design offers flexibility for diverse patching scenarios, making it perfect for network engineers and IT professionals looking for high-quality fiber connectivity.
Technical Specifications
-
Fiber TypeSingle-mode OS2 (9/125 µm)
-
Cable Length1 Meter
-
Connector TypeLC to LC Duplex
-
Connector Ferrule Size1.25 mm Ceramic
-
Polish TypeUPC to UPC
-
Fiber Grade/StandardsITU-T G.657.A2/B2 Bend Insensitive
-
Jacket ColorYellow
-
Cable Jacket DiameterApprox. 3.0 mm LSZH
-
Bend Radius7.5 mm
-
Operating Temperature Range-20 to +70 °C
-
Typical Connector Loss~0.30 dB
-
Max Connector Loss0.50 dB
-
Return Loss~-55 dB
-
PolarityA (Tx) to B (Rx)
-
ApplicationGigabit Ethernet, Telecom, Data Centers
