Detailed Description

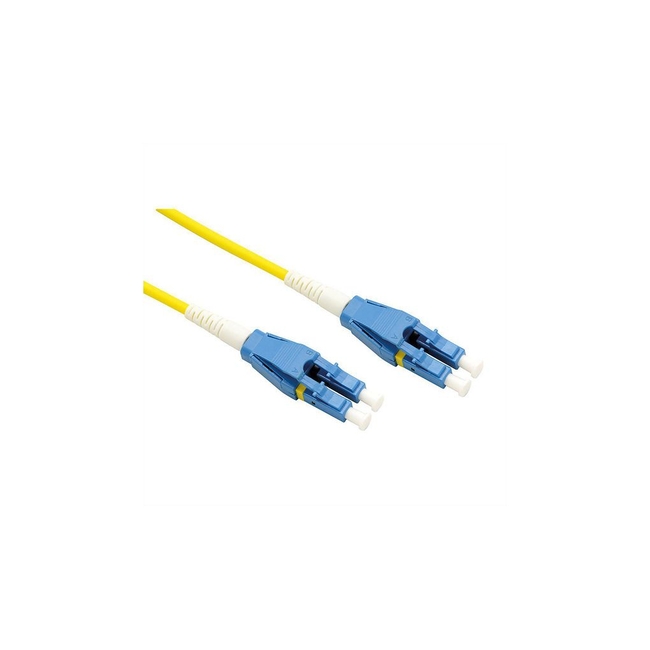

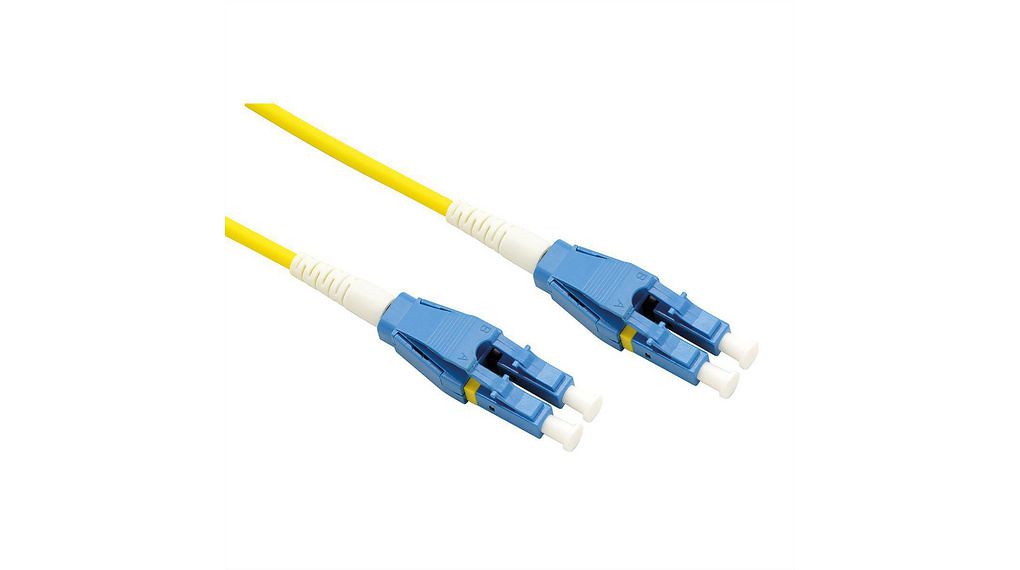

The product LWL-KABEL.SINGLE MODE 9/125.OS2 is a singlemode fiber optic cable designed for high-speed, long-distance data transmission primarily used in telecommunications, data centers, and networking environments.
This OS2 fiber optic cable features significant characteristics:
- Core diameter: 9 microns
- Cladding diameter: 125 microns
- Supports speeds of 10 Gigabit Ethernet
- Typical connection distances: 5-10 kilometers at 1310 nm wavelength and 30-40 kilometers at 1550 nm wavelength
The cable is pre-terminated with various connectors including ST, LC, and SC types with UPC polish, ensuring low insertion loss and stable performance.
It is suited for both indoor and outdoor use, with options for riser or plenum ratings. Additionally, it comes in various colors and jacketing materials such as LSZH (Low Smoke Zero Halogen) or PVC, providing safety in building installations.
Some configurations feature armored sleeving, enhancing durability for industrial or high-traffic environments.
Specifications
-
Fiber Type
- Singlemode OS2 Fiber
-
Core Diameter
- 9 microns
-
Cladding Diameter
- 125 microns
-
Typical Connector Types
- ST to ST, LC to LC, SC to SC (varies)
-
Connector Polish
- UPC (Ultra Physical Contact)
-
Max Connector Loss
- ~0.50 dB
-
Typical Connector Loss
- ~0.30 dB
-
Typical Return Loss
- -55 dB
-
Bandwidth/Speed
- 10 Gb/s up to 5-10 km (1310 nm); 10 Gb/s up to 30-40 km (1550 nm), supports future upgrades up to 100 Gb/s in certain armored configurations
-
Cable Jacket (common)
- LSZH, PVC, Armored (optional)
-
Application
- Telecom, Data Center, Cloud Services, Gigabit Ethernet, 100 GbE compatible
-
Standards & Compliance
- RoHS, REACH compliant
