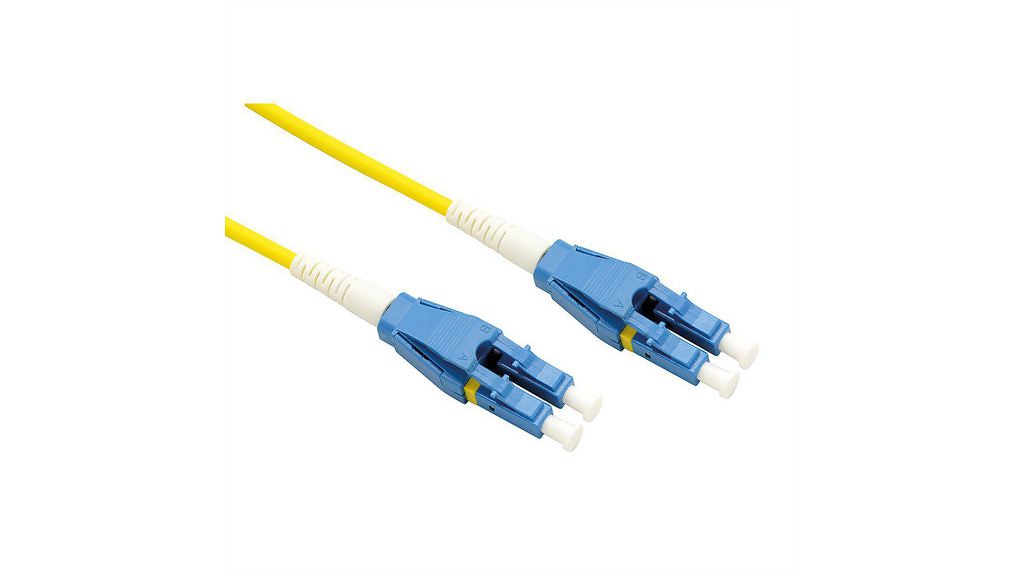

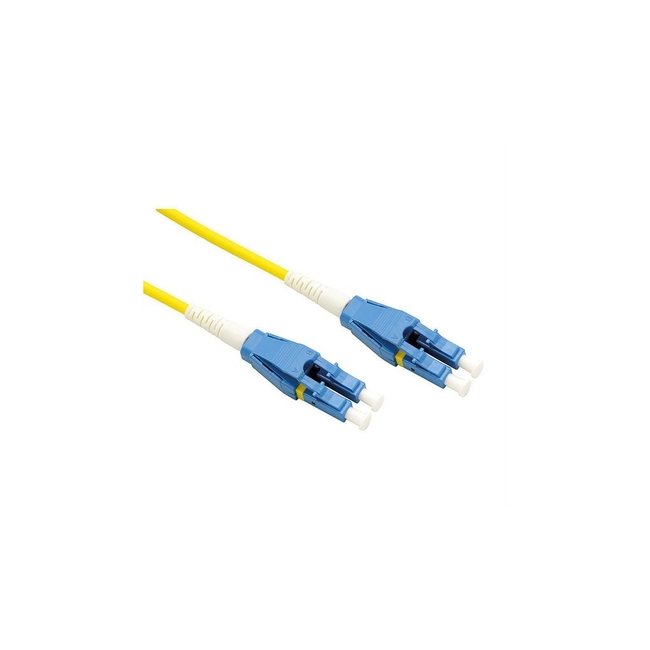

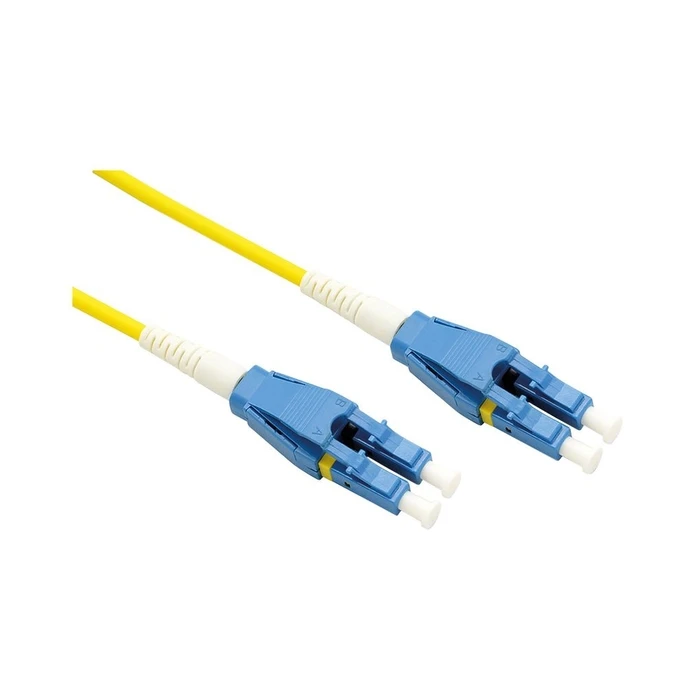

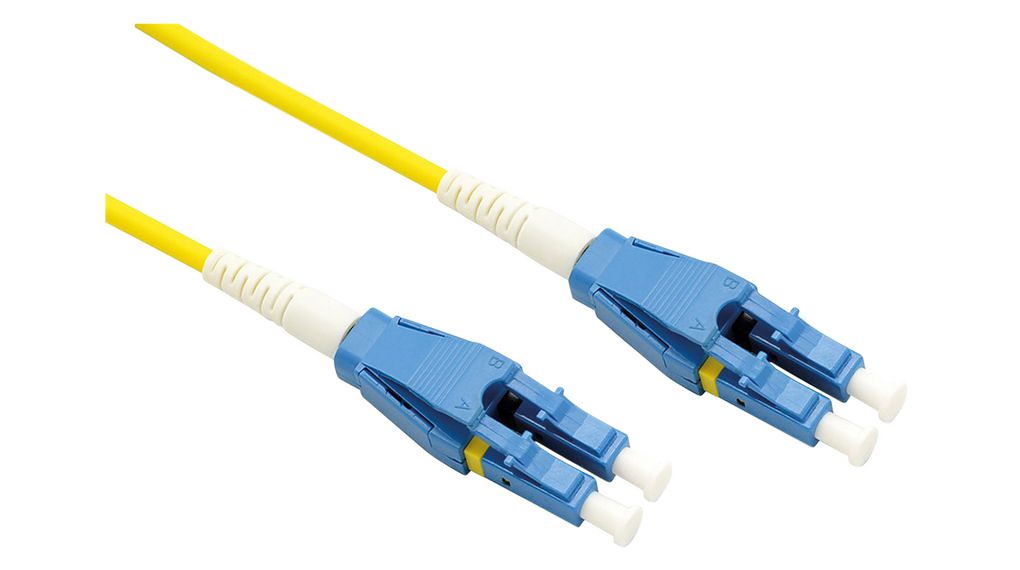

Καλώδιο Οπτικής Ίνας Roline Lwl Single Mode 9/125.Os2 10m
Need Help? Fill in your details so we can call you immediately!
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Related Products
Καλώδιο Δικτύου Digitus CAT 6A S/FTP Patchkabel, PUR (TPU), 3m, Green
Καλώδιο Δικτύου Digitus CAT 6A S/FTP Patchkabel, PUR (TPU), 5m, Green
Καλώδιο Δικτύου Digitus Cat6 U/UTP 2xRJ45 1.0m Yellow Lever Protection Polybeutel
Καλώδιο Δικτύου Digitus Cat6a S/FTP 2xRJ45 5.0m Gray Lever Protection Polybeutel
Καλώδιο Δικτύου Digitus RJ45 U/UTP Cat6A 2.00m grey without lever cover, polybag
The product LWL-KABEL.SINGLE MODE 9/125.OS2 is a single-mode fiber optic cable characterized by a 9 micron core diameter and 125 micron cladding diameter (9/125 µm), classified under the OS2 optical mode. This cable type is widely used for high-speed, long-distance data transmission applications, commonly in networks such as gigabit Ethernet and beyond.
This fiber optic cable is designed primarily for single-mode optical transmission, optimized for long-distance network communications. It typically supports high bandwidth transmission speeds, such as 10 Gigabit Ethernet over distances from 5 to 10 km at 1310 nm wavelength, and up to 30-40 km at 1550 nm wavelength.
It is used extensively in data centers, telecommunications, and enterprise networks where long reach and minimal signal loss are critical. The cable can be configured with various terminations, commonly with ST or LC connectors that use UPC (Ultra Physical Contact) polish for low connector loss.
- Fiber Core/Cladding: 9/125 µm
- Mode Type: OS2 Singlemode fiber
- Bandwidth Support: 10 Gb/s up to 10 km @ 1310 nm, 30-40 km @ 1550 nm
It is essential for enterprise networking and telecom, ensuring high performance and reliability for long-distance communication.
-
Fiber Core/Cladding9/125 µm
-
Mode TypeOS2 Singlemode fiber
-
Bandwidth Support10 Gb/s up to 10 km @ 1310 nm, 30-40 km @ 1550 nm
-
Connector TypesTypically ST or LC connectors with UPC polish
-
Insertion Loss (Connector)Typical loss ~0.30 dB, Max ~0.50 dB
-
Return LossTypically -55 dB
-
Cable ColorUsually yellow (industry standard for single-mode)
-
Applications1G/10G/25G/40G/100G Ethernet, long haul telecom, data centers
-
Cable JacketOptions include Indoor/Outdoor rated, LSZH, armored for protection
Ratings
Description
The product LWL-KABEL.SINGLE MODE 9/125.OS2 is a single-mode fiber optic cable characterized by a 9 micron core diameter and 125 micron cladding diameter (9/125 µm), classified under the OS2 optical mode. This cable type is widely used for high-speed, long-distance data transmission applications, commonly in networks such as gigabit Ethernet and beyond.
This fiber optic cable is designed primarily for single-mode optical transmission, optimized for long-distance network communications. It typically supports high bandwidth transmission speeds, such as 10 Gigabit Ethernet over distances from 5 to 10 km at 1310 nm wavelength, and up to 30-40 km at 1550 nm wavelength.
It is used extensively in data centers, telecommunications, and enterprise networks where long reach and minimal signal loss are critical. The cable can be configured with various terminations, commonly with ST or LC connectors that use UPC (Ultra Physical Contact) polish for low connector loss.
- Fiber Core/Cladding: 9/125 µm
- Mode Type: OS2 Singlemode fiber
- Bandwidth Support: 10 Gb/s up to 10 km @ 1310 nm, 30-40 km @ 1550 nm
It is essential for enterprise networking and telecom, ensuring high performance and reliability for long-distance communication.
Technical Specifications
-
Fiber Core/Cladding9/125 µm
-
Mode TypeOS2 Singlemode fiber
-
Bandwidth Support10 Gb/s up to 10 km @ 1310 nm, 30-40 km @ 1550 nm
-
Connector TypesTypically ST or LC connectors with UPC polish
-
Insertion Loss (Connector)Typical loss ~0.30 dB, Max ~0.50 dB
-
Return LossTypically -55 dB
-
Cable ColorUsually yellow (industry standard for single-mode)
-
Applications1G/10G/25G/40G/100G Ethernet, long haul telecom, data centers
-
Cable JacketOptions include Indoor/Outdoor rated, LSZH, armored for protection
