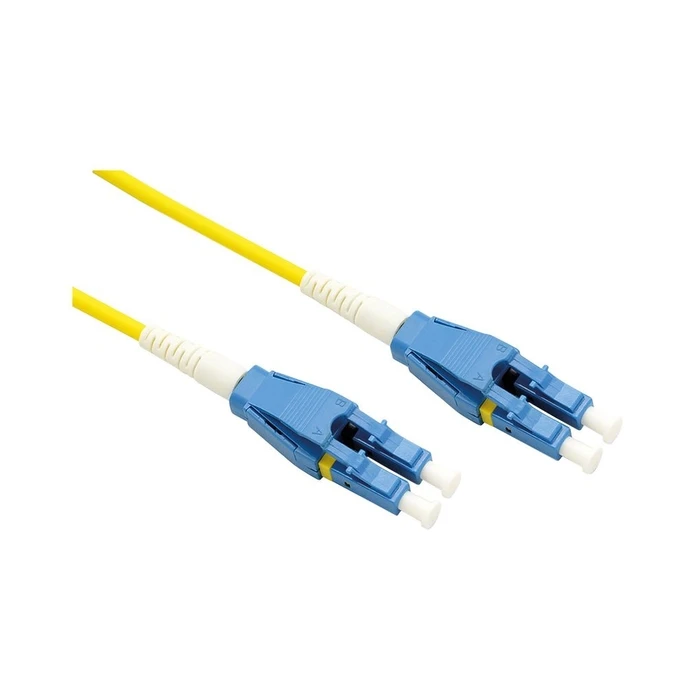

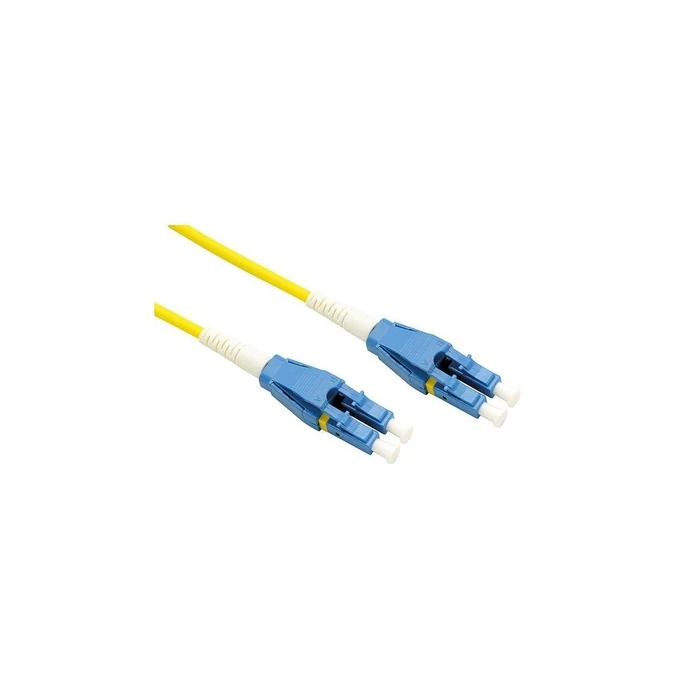

Καλώδιο Οπτικής Ίνας Roline Lwl Single Mode 9/125.Os2 0.5m
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The LWL-KABEL.SINGLE MODE 9/125.OS2 is a cutting-edge optical fiber cable tailored for high-speed and long-distance networking applications. Engineered to fulfill the demands of modern infrastructure, this cable belongs to the OS2 class, renowned for its exceptional performance in various networking environments.
Key Features:
- High-Speed, Long-Distance Performance: Achieves transmission rates of up to 10 Gbps over distances of 40 km!
- Robust Construction: Built with flame-retardant materials and available in low smoke zero halogen (LSZH) options for enhanced safety.
- Customizable Connectivity: Offers a wide range of pre-terminated connectors such as LC, SC, ST, and MT-RJ for versatile network integration.
The LWL-KABEL.SINGLE MODE fiber cable is particularly suitable for installations that require high bandwidth and low attenuation, making it perfect for...
With certified quality ensuring low insertion loss, this cable is designed for environments demanding high signal integrity. It meets pivotal standards such as ITU-T G.652.D and G.657.A1, ensuring compatibility with various networking protocols.
Specifications
-
Fiber Type
- OS2, Single-Mode
-
Core Diameter
- 9 µm
-
Cladding Diameter
- 125 µm
-
Cable Construction
- Duplex (two fibers)
-
Maximum Connector Loss
- 0.50 dB
-
Typical Connector Loss
- 0.30 dB
-
Typical Return Loss
- -55 dB
-
Minimum Bend Radius Jacketed
- 50 mm
-
Minimum Bend Radius Fiber
- 10 mm
-
Jacket Material
- PVC, LSZH, tight-buffered
-
Jacket Rating
- Flame retardant, riser rated
-
Cable Color
- Yellow (standard), custom colors available
-
Data Rate
- Up to 10 Gbps
-
Application
- Backbone, riser, industrial, data center, telecom
