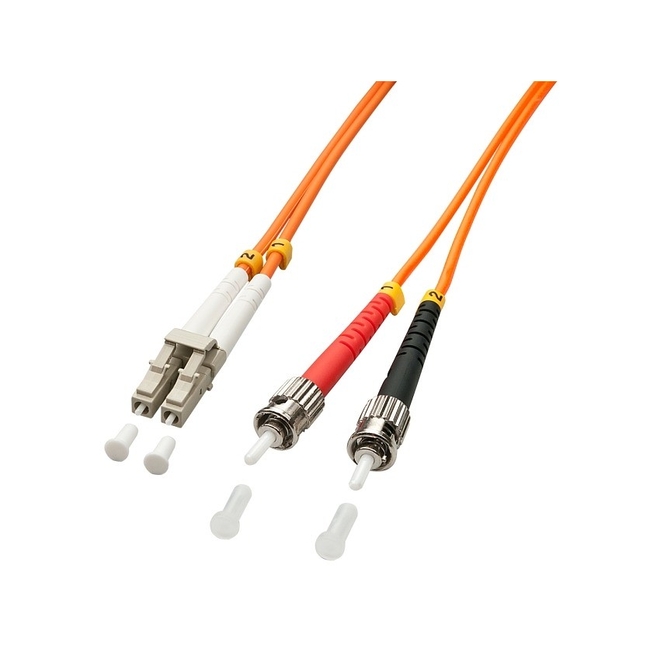

Καλώδιο Οπτικής Ίνας Lindy LWL-DuplexCable LC/ST OM2 1m 50/125?m Multimode
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The LINDY LWL-Duplexkabel LC/ST OM2 1m 50/125΅m Multimode fiber optic patch cable is expertly crafted for high-performance networking solutions. Designed for versatility, this cable is perfect for connecting devices in local area networks (LANs) and various high-speed data transmission systems.
One of the key features of this cable is its multimode fiber structure, which boasts a core diameter of 50 microns and a cladding diameter of 125 microns. This configuration enables efficient data transmission over shorter distances.
Technical Specifications:
- Fiber Mode Structure: Multimode
- Connector 1: LC (1.25mm ferrule with UPC polish)
- Connector 2: ST (2.5mm ferrule with UPC polish)
- Full Duplex: Yes
- Optical Mode Type: OM2 Standard Multimode Fiber
Additionally, this cable is designed with several enhanced features:
- Immunity to EMI: Complete shielding against electrical interference
- Operating Temperature: -40°C to +70°C
Overall, the LINDY LWL-Duplexkabel is a prime choice for data centers and telecommunications, ensuring reliable and efficient data transmissions.
Specifications
-
Fiber Mode Structure
- Multimode
-
Connector 1
- LC
-
Connector 2
- ST
-
Cable Length
- 1 meter
-
Full Duplex
- Yes
-
Core Diameter
- 50 ΅m
-
Cladding Diameter
- 125 ΅m
-
Optical Mode Type
- OM2 Standard Multimode Fiber
-
Distance at 850 nm
- 600 meters
-
Distance at 1310 nm
- 600 meters
-
Bandwidth
- 500 MHz-km
-
Jacket Color
- Orange
-
Jacket Material
- PVC
-
Jacket OD
- 3 mm
-
UL Rating
- OFNR
-
Compliance
- ROHS compliant
