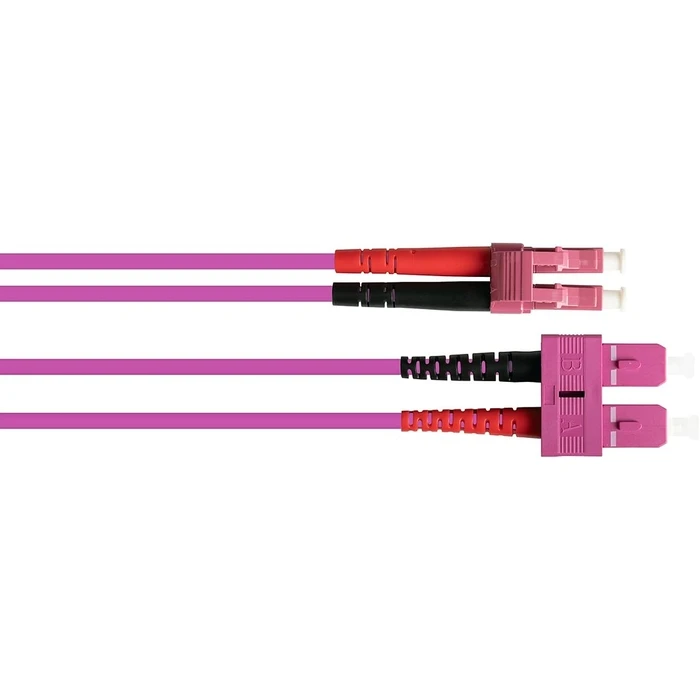

Καλώδιο Οπτικής Ίνας Goodconnections LWL Dpx OM4 MM 50/125? LC/SC 10m
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The Good Connections LWL Duplex OM4 MM 50/125 LC/LC UNIBOOT fiber optic patch cable is an essential tool for achieving high-speed data transmission in a multitude of commercial and industrial environments.
Here are some of its key features:
- Fiber Type: OM4 Multimode Fiber
- Fiber Size: 50/125 μm
- Cable Construction: Duplex
- Minimum Bend Radius: 7.5 mm
- Wavelength: 850/1300 nm
- Sheath Material: Halogen-free (LSZH)
This cable excels in various applications, specifically for connecting high-speed networking equipment like 40G BIDI SR and 10G SR transceivers. It efficiently supports 10/40/100G Ethernet connections, making it ideal for environments that demand both high bandwidth and low latency.
Among its benefits are:
- High-Speed Data Transfer: Delivers data transfer rates of up to 100Gbps.
- Bend Insensitive: Its excellent bend radius protects signal integrity during installations.
- Environmentally Safe: The non-toxic LSZH sheath reduces fire hazards.
- Wide Operating Temperature Range: Functions effectively from -40°C to +85°C.
In conclusion, the Good Connections LWL Duplex OM4 MM 50/125 LC/LC UNIBOOT fiber optic patch cable offers a reliable and efficient solution for various connectivity needs.
Specifications
-
Fiber Type
- OM4 Multimode Fiber
-
Core Diameter
- 50 μm
-
Cladding Diameter
- 125 μm
-
Optical Mode Type
- Laser-Optimized Multimode Fiber (LOMMF)
-
Connector 1
- LC Duplex
-
Connector 2
- LC Duplex
-
Max Connector Loss
- 0.50 dB
-
Typical Return Loss
- -25 dB
-
Cable Length
- 10 m
-
Cable Material
- LSZH
-
Network Speed
- Supports 10 Gb/s, 40 Gb/s, and 100 Gb/s transmission speeds
