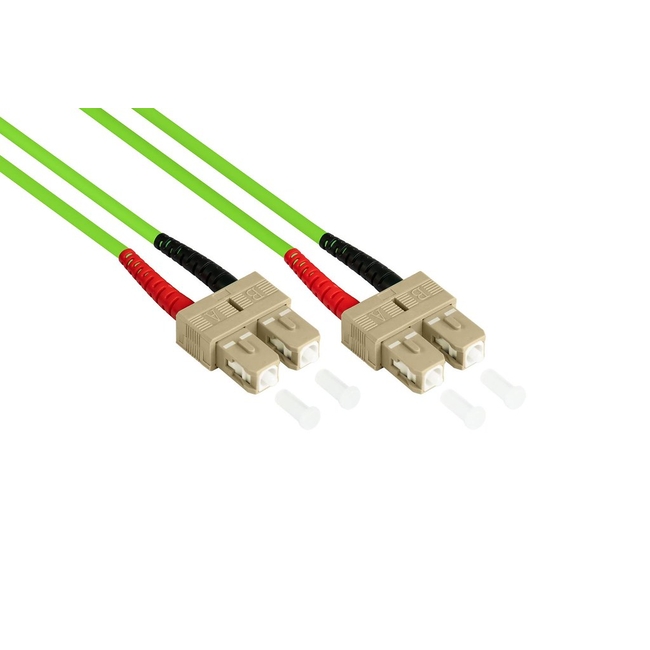

Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx Patchk. OM5 MM 50/125? SC/SC 10m
| Installment plan | Amount / month |
|---|---|
| 2 | 19,75 € |
| 4 | 9,93 € |
| 6 | 6,65 € |
| 8 | 5,02 € |
| 10 | 4,03 € |
| 12 | 3,38 € |
| 18 | 2,29 € |
| 24 | 1,74 € |
| 36 | 1,20 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The Good Connections LWL Dpx Patchk. OM5 MM 50/125μm SC/SC 10m is a state-of-the-art duplex multimode fiber optic patch cable that ensures efficient and reliable data transmission. Designed with advanced OM5 multimode fiber, it supports superior bandwidth capabilities and is perfect for demanding applications.
This patch cable features Shortwave Wavelength Division Multiplexing (SWDM), allowing multiple wavelengths to be transmitted over a single fiber strand.
Key Technical Specifications:
- Fiber Type: OM5 Multimode Fiber
- Core Diameter: 50 μm
- Cladding Diameter: 125 μm
- Bandwidth: At least 28 GHz, suitable for 100GbE and beyond
In terms of connectors, this cable comes equipped with:
- Connector A: SC (Subscriber Connector)
- Connector B: SC (Subscriber Connector)
Its robust construction includes a flame-resistant and halogen-free LSZH jacket, ensuring safety in fire conditions. With a minimum bend radius of 20 mm (dynamic) and 10 mm (static), it offers flexibility for installation.
This patch cable complies with the highest industrial standards, including CE, RoHS, T?V Rheinland, UL, and FCC. It's ideal for various networking applications, including LANs and data centers, ensuring high-speed connections and longevity.
Specifications
-
Fiber Type
- OM5 Multimode Fiber
-
Core Diameter
- 50 μm
-
Cladding Diameter
- 125 μm
-
Bandwidth
- 28 GHz
-
Overfilled Launch Bandwidth
- 3,500 MHz*km at 850 nm
-
Effective Modal Bandwidth
- 4,700 MHz*km at 850 nm
-
Connector A
- SC
-
Connector B
- SC
-
Polish Type
- PC
-
Ferrule Material
- Zirconia Ceramic
-
Cable Type
- Duplex
-
Cable Length
- 10 m
-
Cable Jacket Material
- Flame-resistant, halogen-free LSZH
-
Minimum Bend Radius Dynamic
- 20 mm
-
Minimum Bend Radius Static
- 10 mm
