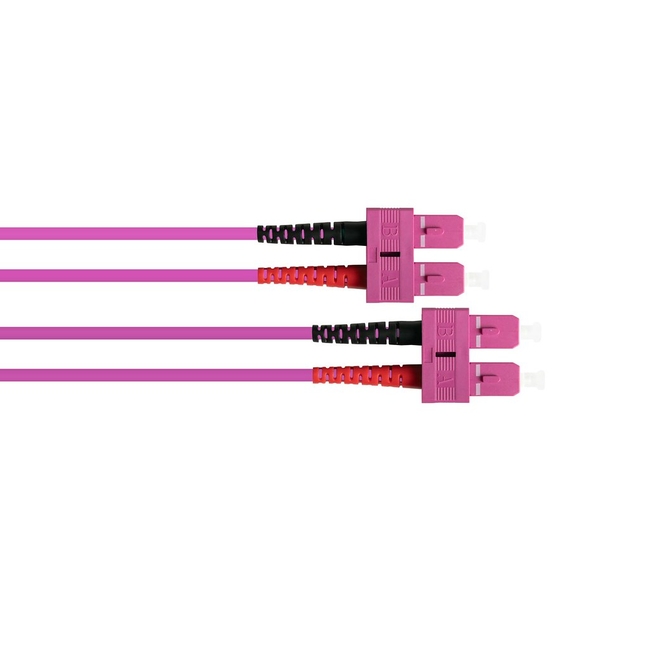

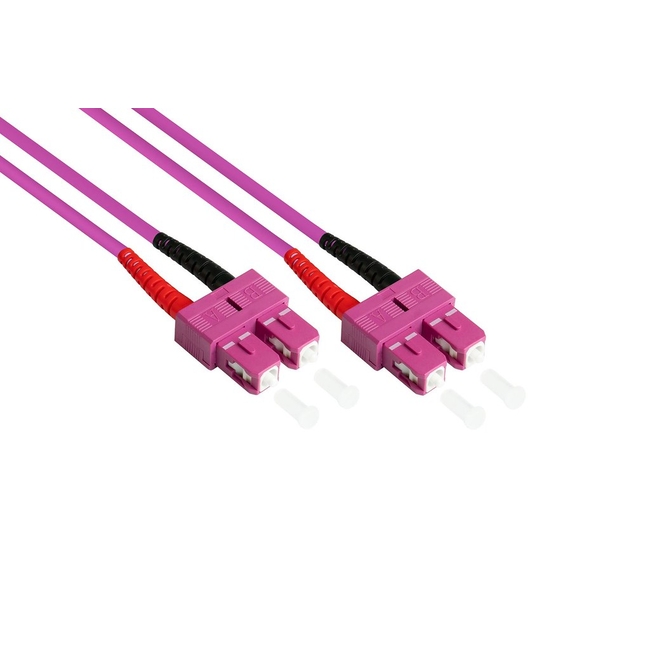

The Good Connections LWL Dpx Patchk. OM4 MM 50/125 SC/SC 10m is a high-performance multimode fiber optic patch cable, specifically designed for demanding network applications. This cable stands out for its optimization with OM4 laser-optimized multimode fiber (LOMMF) that supports impressive data transfer rates up to 10 Gbps, 40 Gbps, and 100 Gbps.

Technical Specifications

• Fiber Type: 50/125 μm multimode fiber, ideal for high-speed networking.
• Connector Type: Features SC (Subscriber Connector) connectors for robust connections.
• Optical Specifications:
  • Effective Modal Bandwidth (EMB): At least 4700 MHz·km at 850 nm.
  • Transmission Speed: Supports Ethernet applications up to 100G.
  • Attenuation: Low insertion loss and return loss for optimal performance.

Jacket and Material

• Jacket Material: Low-smoke zero-halogen (LSZH), flame retardant and UV resistant.
• Jacket Color: Aqua, to easily distinguish from other fiber cables.

Dimensions and Construction

• Core Diameter: 50 ± 2.5 μm; cladding diameter: 125.0 ± 1.0 μm.
• Core Non-circularity: ? 5.0%.
• Cladding Non-circularity: ? 1.0%.
• Primary Coating Diameter: 242 ± 7 μm for uncolored fibers; 250 ± 10 μm for colored fibers.

Quality Assurance

• Testing: 100% tested for performance assurance.
• Standards Compliance: Meets or exceeds industry standards by TIA/EIA.

Key Features

• High Transmission Speed: Supports 10G, 40G, and 100G Ethernet applications.
• Extended Bandwidth: Effective modal bandwidth of at least 4700 MHz·km.
• Reduced Attenuation: Low insertion and return loss.
• Future-Proof: Perfect for high data rate applications across various networking environments.
