Detailed Description

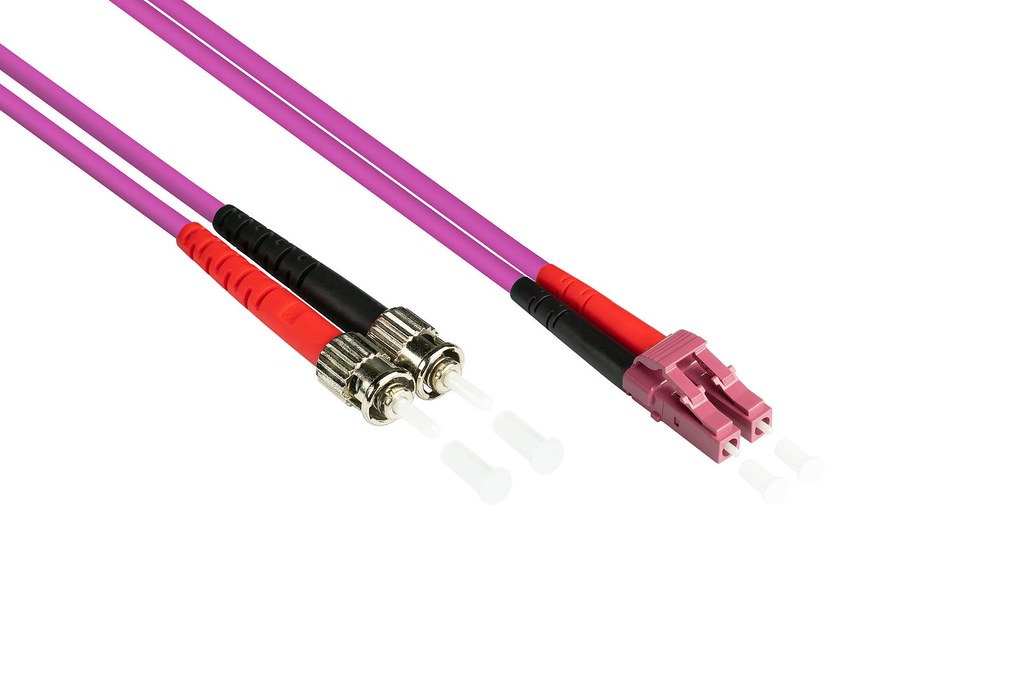

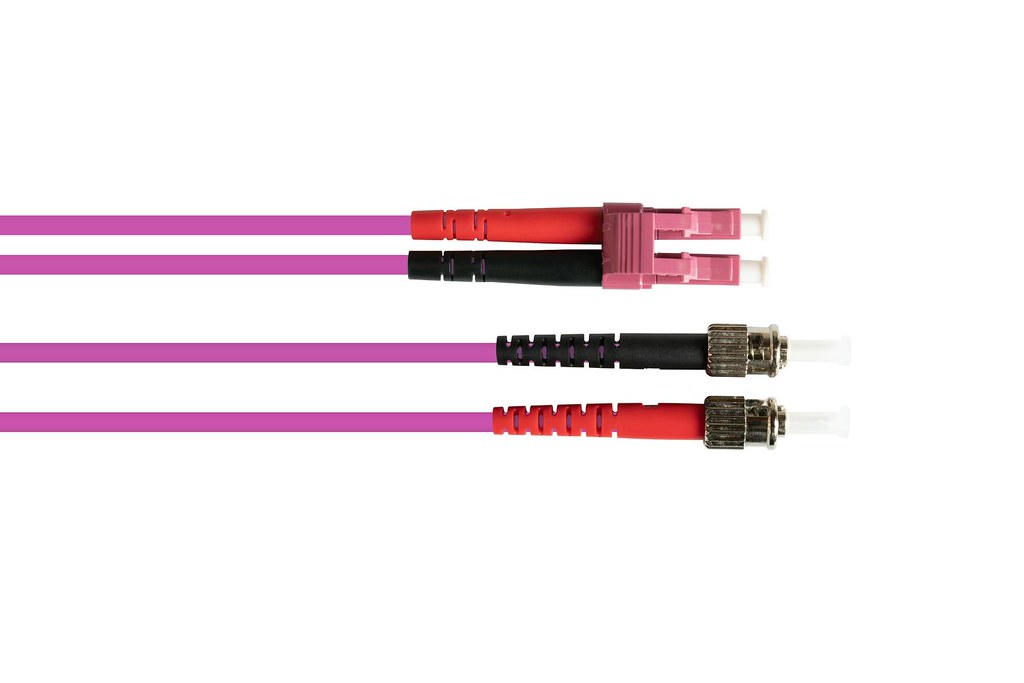

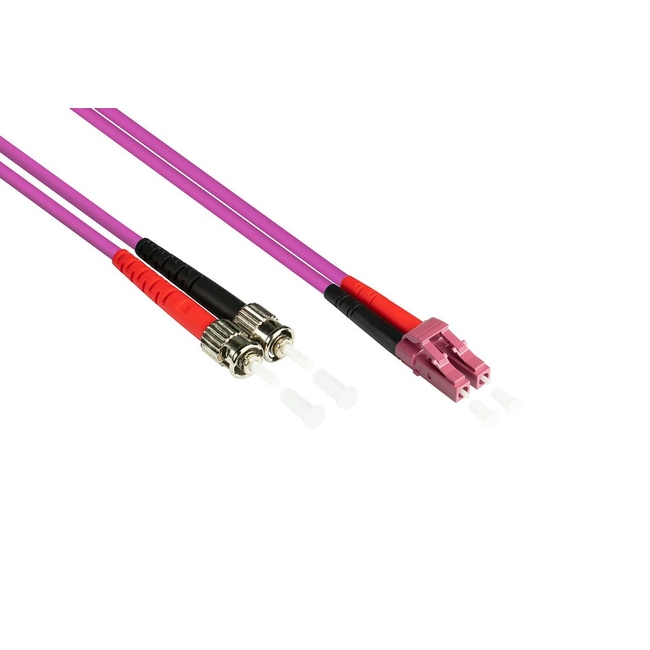

The Good Connections LWL Dpx Patchk OM4 MM 50/125 LC/ST 10m is a high-quality pre-terminated fiber optic patch cable designed specifically for high-speed networking applications.
With its laser-optimized multimode fiber (LOMMF), this cable provides exceptional transmission performance thanks to its 50 micron core diameter and 125 micron cladding diameter. The material of the outer jacket is made from Low Smoke Zero Halogen (LSZH), enhancing its safety features in confined spaces.
Key features include:
- Connectors: Terminated with LC connectors on one end and ST connectors on the other.
- Speed: Supports speeds of 10 Gb/s, 40 Gb/s, and 100 Gb/s.
This patch cable offers high reliability, suitable for various networking environments such as data centers and office buildings, ensuring optimal signal transmission through its Ultra Physical Contact (UPC) polished connectors.
Specifications
-
Fiber Type
- OM4 Laser Optimized Multimode Fiber (LOMMF) 50/125 ΅m
-
Core Diameter
- 50 ± 2.5 ΅m
-
Cladding Diameter
- 125.0 ± 1.0 ΅m
-
Numerical Aperture
- 0.200 ± 0.015
-
Attenuation Coefficient 850 nm
- Typical 2.5 dB/km, Maximum 3.5 dB/km
-
Attenuation Coefficient 1300 nm
- Typical 0.6 dB/km, Maximum 1.5 dB/km
-
Bandwidth Overfilled Launch 850 nm
- ? 3500 MHz·km
-
Bandwidth Overfilled Launch 1300 nm
- ? 500 MHz·km
-
Effective Modal Bandwidth 850 nm
- ? 4700 MHz·km
-
Transmission Length 850 nm
- 550 meters for 10 Gb/s
-
Transmission Length 1300 nm
- 300 meters for 10 Gb/s
-
Zero Dispersion Wavelength
- 1295 1340 nm
-
Zero Dispersion Slope 1295-1310 nm
- ? 0.105 ps/(nm²·km)
-
Zero Dispersion Slope 1310-1340 nm
- ? 0.000375·(1590-l0) ps/(nm²·km)
-
Point of Discontinuity at 1300 nm
- ? 0.2 dB
-
Proof Test Level
- ? 0.69 GPa (? 8.8 N)
-
Coating Strip Force
- 1.9 N
-
Dynamic Fatigue Resistance Parameter
- ? 23
-
Operating Temperature
- -20°C to +70°C
-
Storage Temperature
- -40°C to +70°C
