Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx Patchk. OM3 MM 50/125? LC/LC 10m
| Installment plan | Amount / month |
|---|---|
| 2 | 28,57 € |
| 4 | 14,36 € |
| 6 | 9,62 € |
| 8 | 7,26 € |
| 10 | 5,84 € |
| 12 | 4,89 € |
| 18 | 3,31 € |
| 24 | 2,52 € |
| 36 | 1,73 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

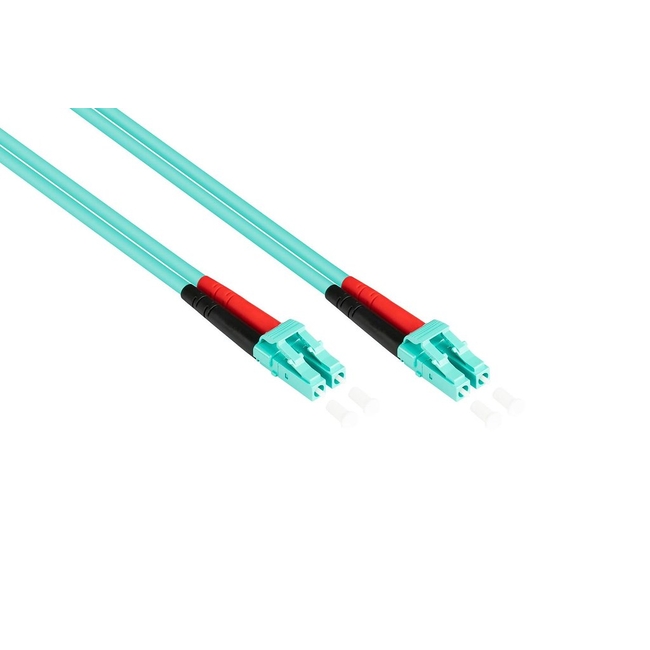

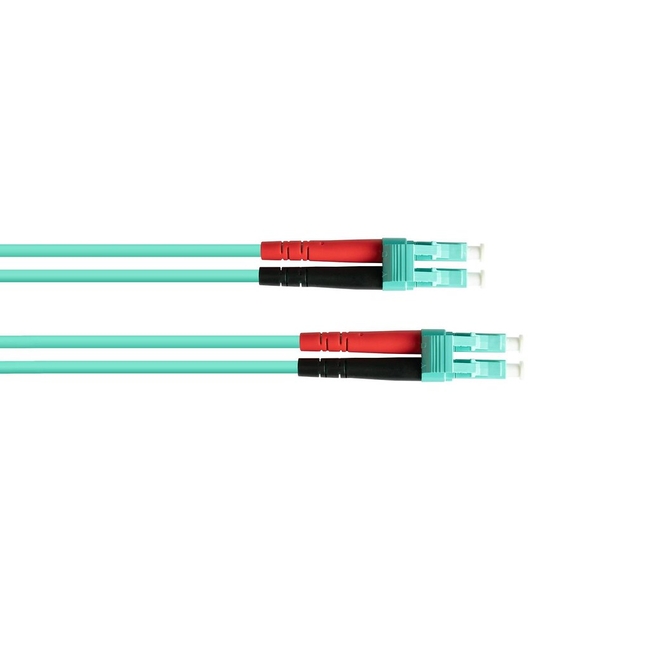

The Good Connections LWL Dpx Patchk. OM3 MM 50/125 LC/LC 10m is a high-performance, pre-terminated fiber optic patch cable tailored for 10 Gigabit Ethernet (10GbE) applications. Its design is optimized for multimode fiber, specifically utilizing OM3 Laser-Optimized Multimode Fiber (LOMMF) which features a core diameter of 50 microns and a cladding diameter of 125 microns.
Key Features:
- Fiber Type: OM3 Laser-Optimized Multimode Fiber (LOMMF)
- Core/Cladding: 50/125 microns
- Core Material: Corning Optical Fiber
- Mode Type: Multimode (MM)
- Network Speed: 10 Gb/s Transmission
This cable can accommodate distances of up to 300 meters at 850 nm and 1310 nm, with a bandwidth capacity of 1500 MHz/km at 850 nm and 2000 MHz/km at 1300 nm.
Additional Specifications:
- Strand Count: 2 Fiber Strands
- Jacket Color: Aqua
- Jacket Material: PVC
- Jacket OD: 2.0 mm
- UL Rating: OFNR Certified
Designed for ease of installation, the cable features LC to LC Duplex connectors that are fully inspected and tested in compliance with national standards.
Specifications
-
Fiber Type
- OM3 Laser-Optimized Multimode Fiber (LOMMF)
-
Core/Cladding
- 50/125 microns
-
Core Material
- Corning Optical Fiber
-
Mode Type
- Multimode (MM)
-
Network Speed
- 10 Gb/s Transmission
-
Distance at 850 nm
- 300 meters
-
Distance at 1310 nm
- 300 meters
-
Bandwidth at 850 nm
- 1500 MHz/km
-
Bandwidth at 1300 nm
- 2000 MHz/km
-
Strand Count
- 2 Fiber Strands
-
Jacket Color
- Aqua
-
Jacket Material
- PVC
-
Jacket OD
- 2.0 mm
-
UL Rating
- OFNR (Optical fiber, nonconductive, riser)
-
Compliance
- ROHS Compliant
-
Termination
- LC to LC Duplex connectors
-
Max Connector Loss
- 0.50 dB
-
Typical Connector Loss
- 0.30 dB
-
Typical Return Loss
- -25 dB
-
Quality Control
- ANSI/TIA/EIA-455-171-A-2001
