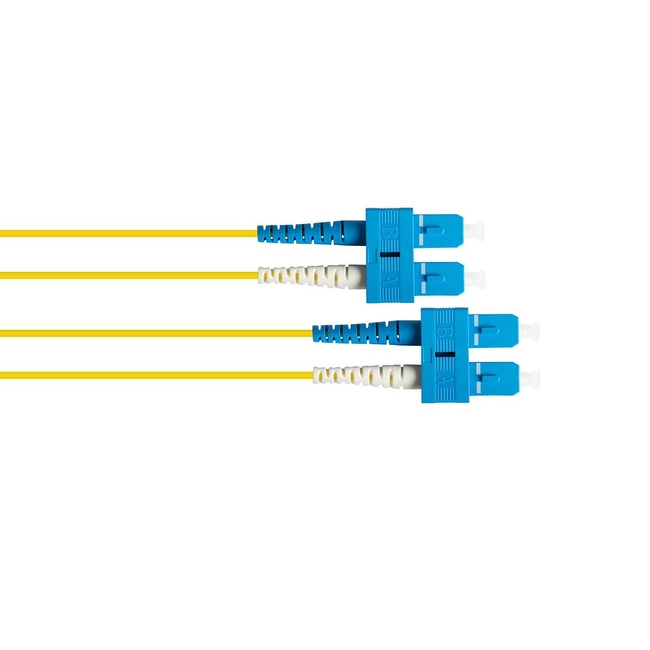

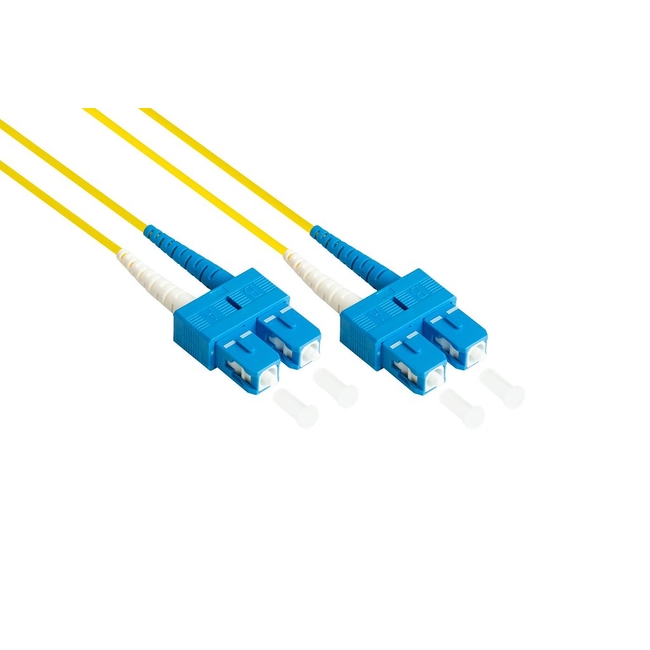

The Good Connections LWL Dpx Patchkabel OS2 SM 9/125? SC/SC 1m is a premium fiber optic patch cable that guarantees exceptional performance in a variety of settings such as data centers and industrial environments.

Technical Specifications:

• Fiber Type: Single-mode (SM), 9 μm core diameter, 125 μm cladding diameter, OS2 classification
• Connectors: SC connectors at both ends, compliant with IEC 61754-4 standards
• Cable Length: 1 meter
• Jacket Material: Low-smoke zero-halogen (LSZH) for enhanced safety
• Color Code: Yellow cable jacket for easy identification
• Cable Diameter: 2 mm
• Operating Temperature: -40°C to 85°C
• Bend Radius: 60 mm (dynamic), 30 mm (static)
• Tensile Strength: 60 N (long-term), 100 N (short-term)

Key Features:

• Duplex Configuration: Supports simultaneous data transmission in both directions
• Cross-Connectors: Adheres to ISO/IEC 11801 and EN 50173 standards
• Halogen-Free: Reduces toxic fume risks during fires
• Individual Testing Protocols: Each cable comes with a unique test protocol

This patch cable is engineered for high-speed data transmission and reliability across diverse networking environments.
