Detailed Description

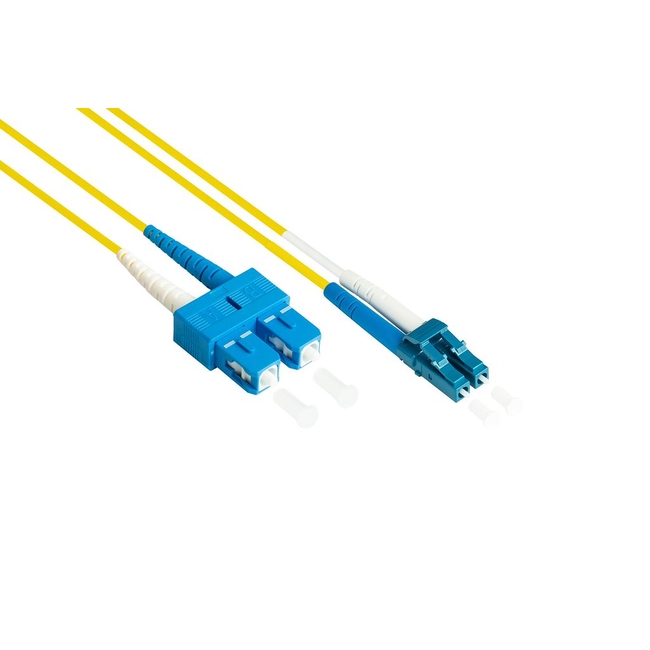

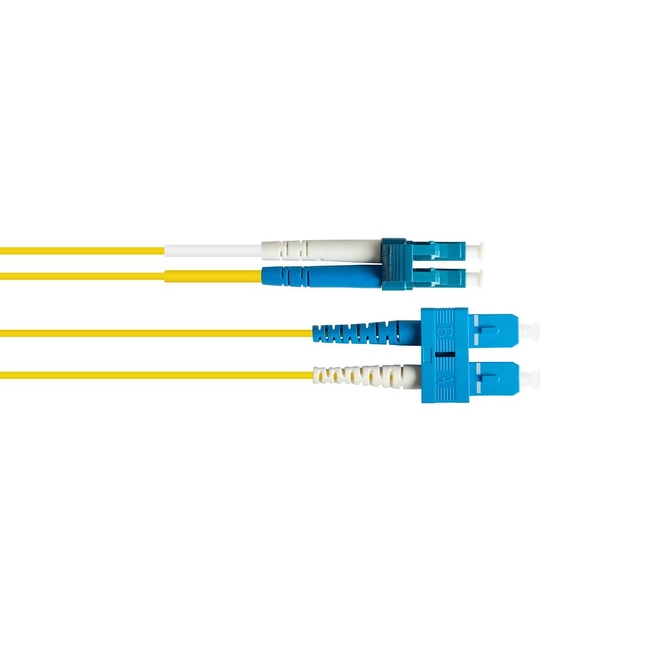

The Good Connections LWL Dpx Patchkabel OS2 SM 9/125? LC/SC 1m is a high-quality, single-mode fiber optic patch cable designed for reliable and efficient data transmission.
This patch cable is a part of the LWL Dpx series renowned for its durability and performance. It features a duplex configuration with LC and SC connectors, ensuring compatibility with various fiber optic equipment.
Key Features:
- Fiber Type: Single-mode (SM) with a 9/125 μm fiber core.
- Connectors: Duplex LC and SC connectors color-coded for easy identification.
- Cable Material: Made from FRNC-LSZH material for fire resistance and minimal smoke emission.
- Length: Standard length of 1 meter, customizable if needed.
The patch cable is designed with low insertion loss and high return loss, ensuring minimal signal degradation and high reliability. Additionally, it operates within a wide temperature range and has specific bend radius requirements for flexibility during installation.
Applications:
The Good Connections LWL Dpx Patchkabel is ideal for:
- Data Centers
- Office Buildings
- Industrial Settings
In conclusion, this patch cable meets the demands of modern data transmission with its excellent specifications.
Specifications
-
Fiber Type
- Single-mode (SM) 9/125 μm
-
Connectors
- Duplex LC/SC
-
Cable Material
- FRNC-LSZH
-
Length
- 1 m
-
Insertion Loss
- < 0.3 dB
-
Return Loss
- > 65 dB
-
Operating Temperature
- -10 to +60 °C
-
Minimum Bend Radius
- 35 mm
-
Static Bend Radius
- 65 mm
