Sku: 1117507039
Καλώδιο Οπτικής Ίνας Good Connections LWL Dpx PatchCable OM5 MM 50/125? SC/SC 5m
38,20 €
Up to 36 instalments by credit card x 1,19€ / month
| Installment plan | Amount / month |
|---|---|
| 2 | 19,65 € |
| 4 | 9,88 € |
| 6 | 6,62 € |
| 8 | 4,99 € |
| 10 | 4,01 € |
| 12 | 3,36 € |
| 18 | 2,28 € |
| 24 | 1,73 € |
| 36 | 1,19 € |
Product Availability
για καλύτερη τιμή!
Need help?
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
Call us now!
Methods of Pickup/Shipment
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Share this:
Detailed Description

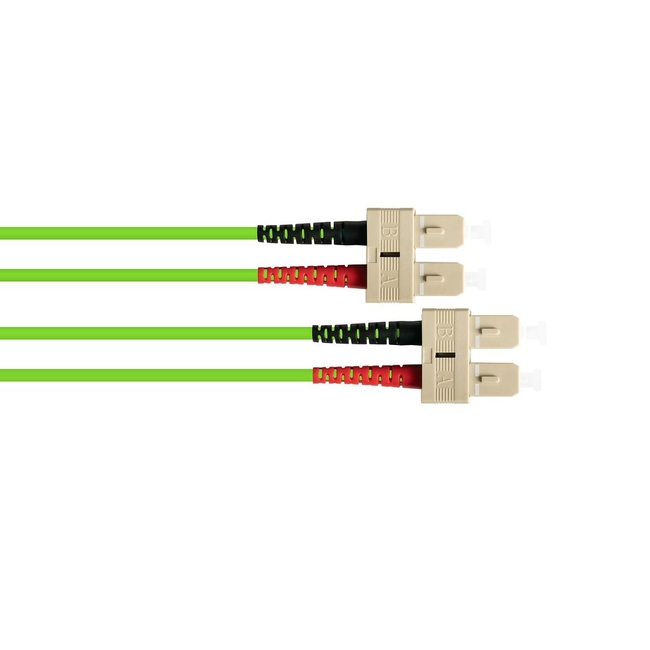

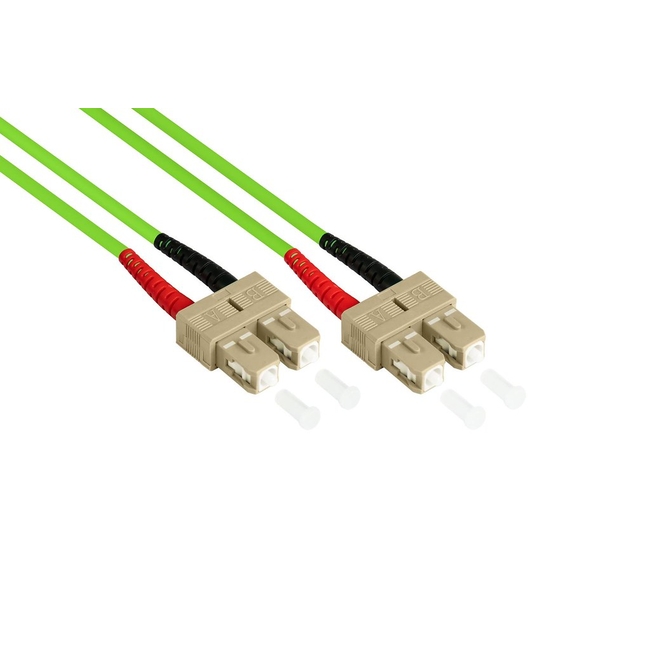

The Good Connections LWL Dpx Patchkabel OM5 MM 50/125΅ SC/SC 5m is a top-tier, pre-terminated fiber optic patch cable, ideal for use in data centers, telecommunications, and high-speed networking environments.
Key Features:
- Fiber Type: OM5 Wideband Multimode Fiber
- Core Diameter: 50 ΅m
- Cladding Diameter: 125 ΅m
This cable ensures optimal optical performance with a minimum Effective Modal Bandwidth (EMB) of 4,700 MHz*km at 850 nm.
Connector Details:
- Termination: SC/SC connectors
- Polish Type: Ultra Physical Contact (UPC)
The quality of the cable is ensured through rigorous inspection and adherence to ANSI/TIA/EIA standards. Additionally, it is offered with a lifetime warranty.
Applications:
- 100GBase-SR10
- 40GBase-eSR4 QSFP+
- 10GBase-SR
- 1GBase-SX Ethernet
With its lime green jacket, the cable is easily identifiable, while its PVC construction allows for flexibility and easy installation.
Specifications
-
EAN Code
- 4014619741427
-
MPN
- LW-805SC5
-
Fiber Type
- OM5 Wideband Multimode Fiber
-
Core Diameter
- 50 ΅m
-
Cladding Diameter
- 125 ΅m
-
Termination
- SC/SC connectors
-
Connector Type
- SC duplex connectors with ceramic ferrules
-
Polish Type
- Ultra Physical Contact (UPC)
-
Effective Modal Bandwidth (EMB)
- Minimum 4,700 MHz*km at 850 nm
-
Overfilled Launch (OFL) Bandwidth
- Minimum 3,500 MHz*km at 850 nm
-
Typical Connector Loss
- 0.30 dB
-
Max Connector Loss
- 0.50 dB
-
Typical Return Loss
- -25 dB
-
Jacket Color
- Lime green
-
Jacket Material
- PVC
-
Jacket OD
- 2.0 mm
-
UL Rating
- OFNR
-
Supported Applications
- 100GBase-SR10, 40GBase-eSR4 QSFP+, 40GBase-SR4, 10GBase-SR, 1GBase-SX Ethernet
-
Supported Distances 100GbE
- Up to 150 meters
-
Supported Distances 40GbE
- Up to 550 meters
-
Supported Distances 10GbE
- Up to 400 meters
-
Supported Distances 1GbE
- Up to 550 meters with mode-conditioning
-
Laser-Optimized
- Yes
-
SWDM Support
- Yes
-
Backward Compatibility
- Yes
-
Quality Control
- Inspected and tested in accordance with ANSI/TIA/EIA-455-171-A
-
Warranty
- Lifetime warranty
