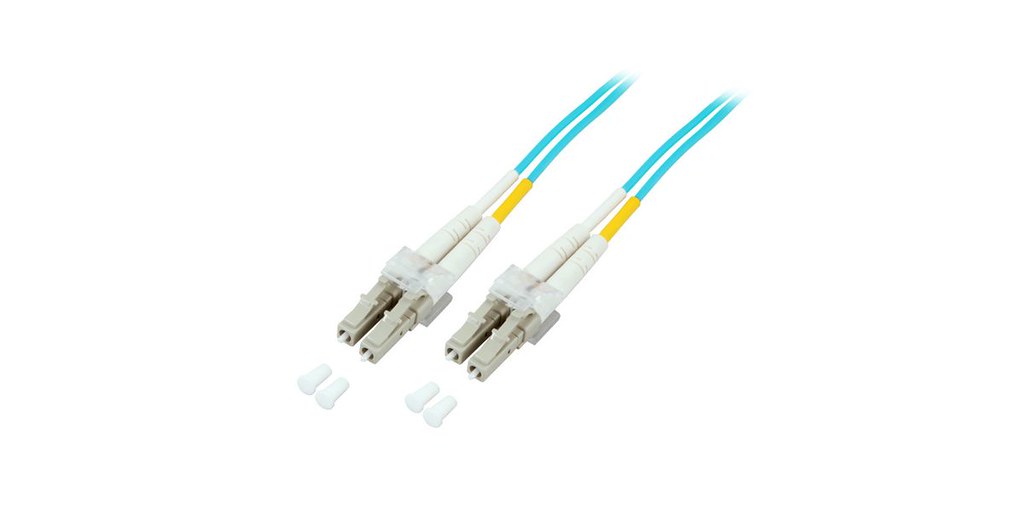

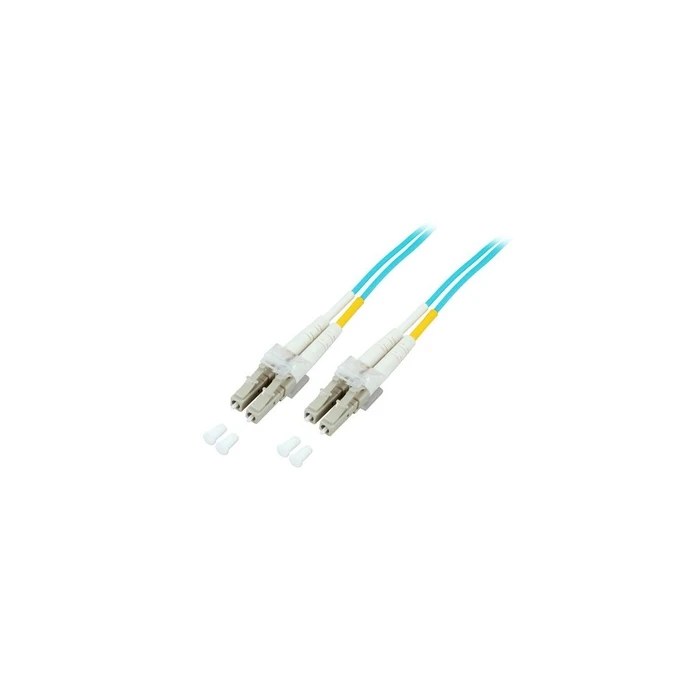

Καλώδιο Οπτικής Ίνας EFB Duplex LC-LC 50/125 OM3 LSZH 2mm 1.0m aqua
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The EFB Duplex LC-LC 50/125 OM3 LSZH 2mm 1.0m aqua is a premium multimode fiber optic patch cable, engineered for optimal performance in contemporary networking environments.
This cable features:
- Two 50/125 µm multimode fibers with durable LC connectors, ensuring robust connections.
- Low-smoke zero-halogen (LSZH) jacket for enhanced safety in sensitive installations.
- Aqua jacket color, indicating its suitability for 850 nm VCSEL lasers.
Optimized for data transfer, the OM3 fiber supports:
- Data rates up to 10 Gb/s over 300 meters.
- Compatible with 40 Gb/s and 100 Gb/s applications over shorter distances.
Designed with high durability, this cable features ceramic ferrules for low insertion loss and high reliability. It meets various international IEC standards and is suitable for use in data centers, server rooms, and enterprise networking.
-
Fiber TypeOM3 Multimode (Laser-Optimized)
-
Core/Cladding Diameter50/125 µm
-
Connector TypeLC (Duplex)
-
Cable Length1.0 m
-
Jacket MaterialLow Smoke Zero Halogen (LSZH)
-
Jacket ColorAqua
-
Outer Diameter2.0 mm
-
Insertion Loss≤ 0.5 dB (typical)
-
Bandwidth1500 MHz·km @ 850 nm, 2000 MHz·km @ 1300 nm
-
ComplianceIEC 60754-2, IEC 60332-1, IEC 61034 (LSZH standards)
-
Operating Temperature-20°C to +70°C
-
Storage Temperature-40°C to +80°C
-
Data Rate SupportUp to 10 Gb/s (up to 300 m), 40 Gb/s (up to 100 m), 100 Gb/s (up to 100 m)
-
StandardsOM3, RoHS, REACH
Ratings
Description
The EFB Duplex LC-LC 50/125 OM3 LSZH 2mm 1.0m aqua is a premium multimode fiber optic patch cable, engineered for optimal performance in contemporary networking environments.
This cable features:
- Two 50/125 µm multimode fibers with durable LC connectors, ensuring robust connections.
- Low-smoke zero-halogen (LSZH) jacket for enhanced safety in sensitive installations.
- Aqua jacket color, indicating its suitability for 850 nm VCSEL lasers.
Optimized for data transfer, the OM3 fiber supports:
- Data rates up to 10 Gb/s over 300 meters.
- Compatible with 40 Gb/s and 100 Gb/s applications over shorter distances.
Designed with high durability, this cable features ceramic ferrules for low insertion loss and high reliability. It meets various international IEC standards and is suitable for use in data centers, server rooms, and enterprise networking.
Technical Specifications
-
Fiber TypeOM3 Multimode (Laser-Optimized)
-
Core/Cladding Diameter50/125 µm
-
Connector TypeLC (Duplex)
-
Cable Length1.0 m
-
Jacket MaterialLow Smoke Zero Halogen (LSZH)
-
Jacket ColorAqua
-
Outer Diameter2.0 mm
-
Insertion Loss≤ 0.5 dB (typical)
-
Bandwidth1500 MHz·km @ 850 nm, 2000 MHz·km @ 1300 nm
-
ComplianceIEC 60754-2, IEC 60332-1, IEC 61034 (LSZH standards)
-
Operating Temperature-20°C to +70°C
-
Storage Temperature-40°C to +80°C
-
Data Rate SupportUp to 10 Gb/s (up to 300 m), 40 Gb/s (up to 100 m), 100 Gb/s (up to 100 m)
-
StandardsOM3, RoHS, REACH
