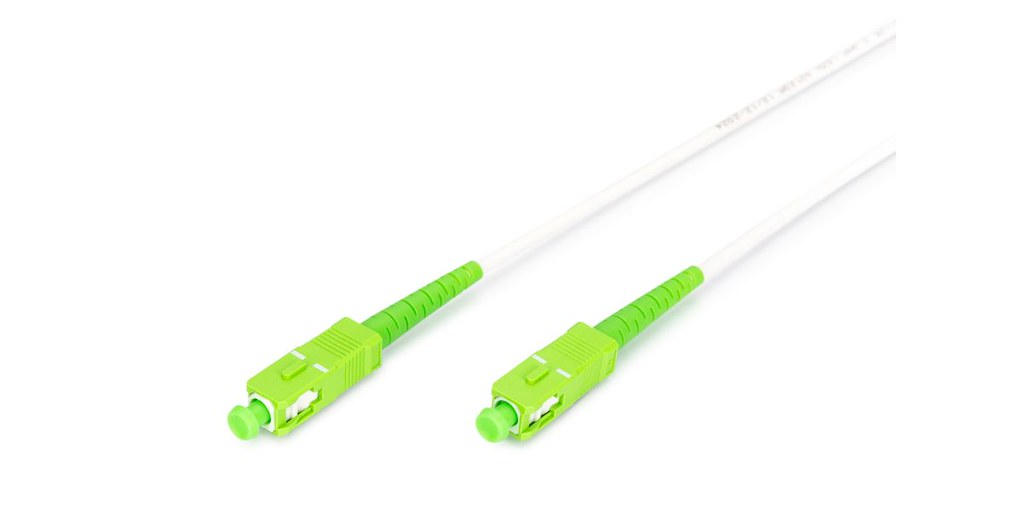

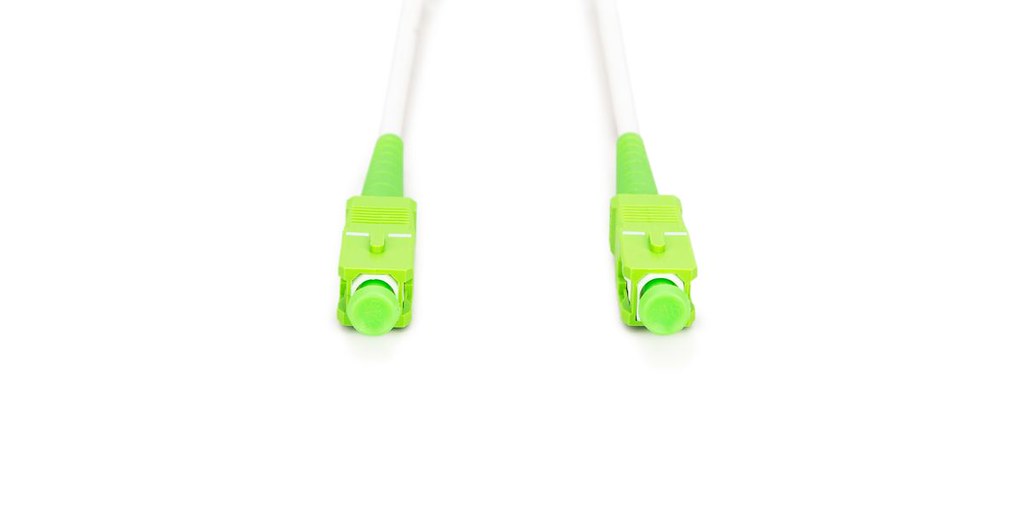

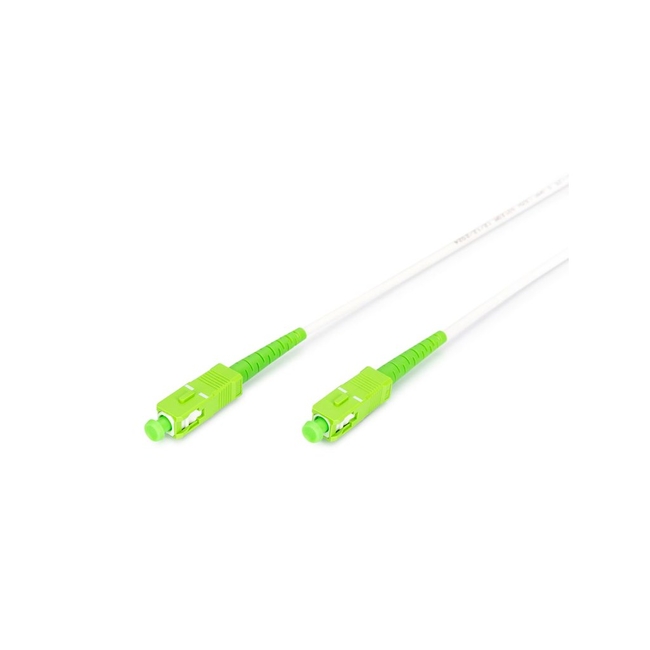

Καλώδιο Οπτικής Ίνας Digitus LWL SCA -> SCA 1.00m Singlemode Simplex
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The Digitus DK-2922A-01-SCA-SX is a high-performance single-mode simplex fiber optic patch cable engineered for critical optical communication applications. This cable combines robust protection with excellent signal integrity, making it ideal for demanding environments.
Cable Construction and Protection
The cable features a steel-armored design that provides exceptional protection against physical damage, crushing, bending, and environmental stress. The outer jacket is made from Low Smoke Zero Halogen (LSZH) material, ensuring fire safety compliance while maintaining flexibility.
Technical Specifications
- Fiber type: Single-mode
- Core diameter: 9 µm
- Fiber category: G.657 series
- Number of fibers: 1
- Cable diameter: 3.0 mm
Performance Metrics
The cable supports high-speed optical communications with a low insertion loss, ensuring superior data transfer efficiency.
Connectors and Compatibility
This cable comes with an SC/APC to SC/APC connection type, designed for easy integration into existing systems.
Environmental Operating Range
Operating between -25 to +70°C, it is suitable for various settings.
This fiber optic cable is marked as plug and play compatible, requiring no additional configuration for immediate deployment.
-
Fiber typeSingle-mode
-
Core diameter9 µm
-
Fiber categoryG.657 series
-
Number of fibers1
-
Cable diameter3.0 mm
-
Insertion loss at 1310 nm< 0.3 dB
-
Return flow resistance≥ 60 dB
-
Operating temperature-25 to +70°C
-
Storage temperature-40 to +80°C
Ratings
Description
The Digitus DK-2922A-01-SCA-SX is a high-performance single-mode simplex fiber optic patch cable engineered for critical optical communication applications. This cable combines robust protection with excellent signal integrity, making it ideal for demanding environments.
Cable Construction and Protection
The cable features a steel-armored design that provides exceptional protection against physical damage, crushing, bending, and environmental stress. The outer jacket is made from Low Smoke Zero Halogen (LSZH) material, ensuring fire safety compliance while maintaining flexibility.
Technical Specifications
- Fiber type: Single-mode
- Core diameter: 9 µm
- Fiber category: G.657 series
- Number of fibers: 1
- Cable diameter: 3.0 mm
Performance Metrics
The cable supports high-speed optical communications with a low insertion loss, ensuring superior data transfer efficiency.
Connectors and Compatibility
This cable comes with an SC/APC to SC/APC connection type, designed for easy integration into existing systems.
Environmental Operating Range
Operating between -25 to +70°C, it is suitable for various settings.
This fiber optic cable is marked as plug and play compatible, requiring no additional configuration for immediate deployment.
Technical Specifications
-
Fiber typeSingle-mode
-
Core diameter9 µm
-
Fiber categoryG.657 series
-
Number of fibers1
-
Cable diameter3.0 mm
-
Insertion loss at 1310 nm< 0.3 dB
-
Return flow resistance≥ 60 dB
-
Operating temperature-25 to +70°C
-
Storage temperature-40 to +80°C
