Sku: 1117569768

Καλώδιο Οπτικής Ίνας Digitus FTTH LC/LC 50.00m Singlemode 1 Faser

36,28 €
TBI Bank
Up to 36 instalments by credit card x 1,13€ / month
Product Availability
call us
Need help?

Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.

Call us now!
Shop now
Methods of Pickup/Shipment
  • Pickup from the store:
    El. Ave. Venizelou 73 (formerly Theseos), Kallithea
  • Pick up from a BoxNow machine:
    With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
  • Shipping to your location (Calculate shipping):

Detailed Description

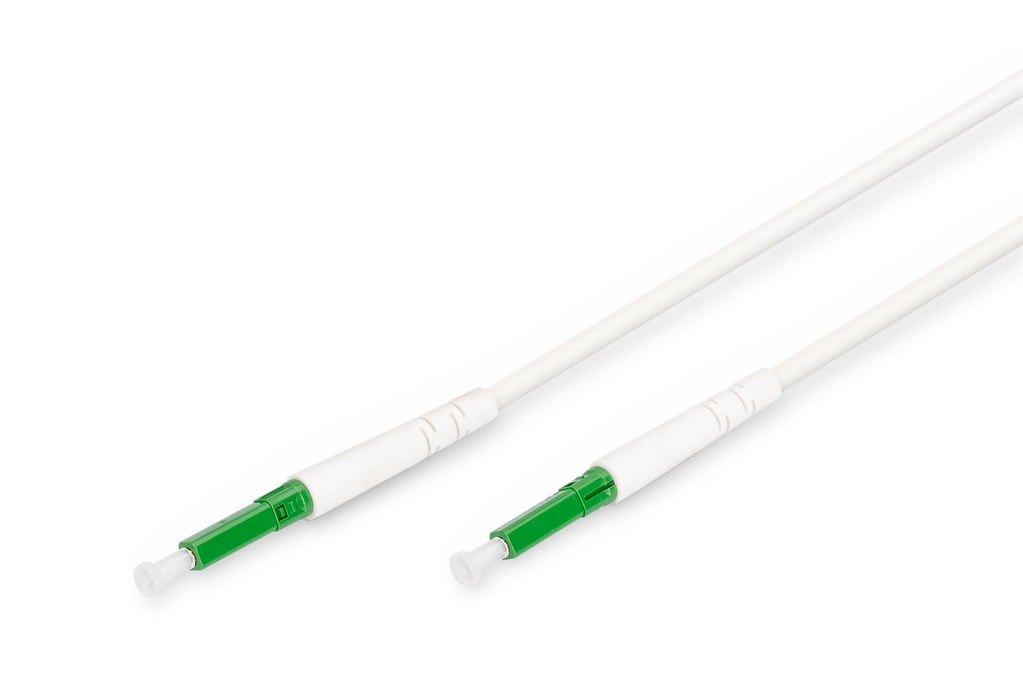

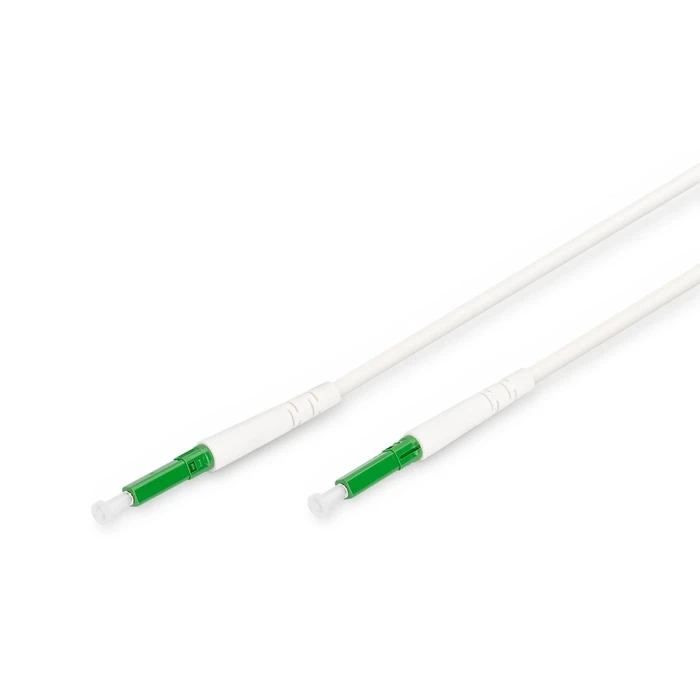

The Καλώδιο Οπτικής Ίνας Digitus FTTH LC/LC 50.00m Singlemode 1 Faser is a high-quality pre-assembled fiber optic drop cable designed specifically for FTTH (Fiber to the Home) applications. This cable features a singlemode fiber type that is optimized for bend insensitivity, ensuring reliability in various installation environments.

Key Technical Specifications:

  • Fiber type: Singlemode ITU-T G.657.A2
  • Number of fibers: 1 fiber core
  • Cable length: 50 meters
  • Outer diameter: 2.8 mm
  • Sheath material: Polyethylene (PE), white color
  • Reinforcement: Aramid yarn (Kevlar)

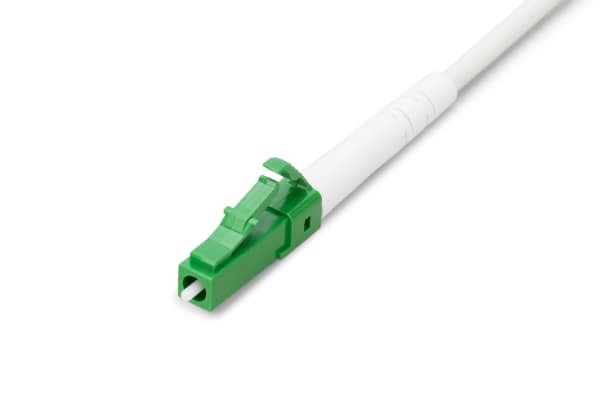

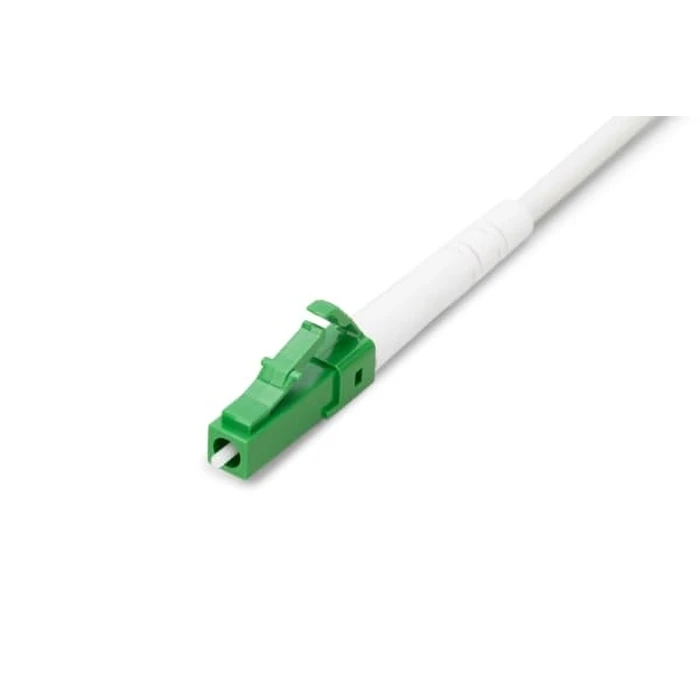

  • Connectors: Pre-terminated LC/APC connectors on both ends
  • Insertion loss: Maximum 0.3 dB
  • Return loss: Minimum 60 dB
  • Minimum bending radius: 10 mm
  • Blow-in capability: Minimum internal diameter 3.5 mm
  • Operating temperature range: -20 °C to +60 °C
  • Storage temperature range: -40 °C to +70 °C

With its compact and robust design, this cable allows for efficient air-assisted blow-in installation into microduct infrastructure. Such features make it extremely suitable for last-mile FTTH network expansions, particularly in environments where space and ease of handling are critical.

In summary, the Digitus DK-3901LCA-50 FTTH LC/LC 50-meter singlemode cable is engineered for ease of use, reliability, and high optical performance in modern fiber optic network deployments.

Specifications

  • Fiber type
    • Singlemode ITU-T G.657.A2
  • Number of fibers
    • 1 fiber core
  • Cable length
    • 50 meters
  • Outer diameter
    • 2.8 mm
  • Sheath material
    • Polyethylene (PE), white color
  • Reinforcement
    • Aramid yarn (Kevlar)
  • Connectors
    • Pre-terminated LC/APC
  • Insertion loss
    • Maximum 0.3 dB
  • Return loss
    • Minimum 60 dB
  • Minimum bending radius
    • 10 mm
  • Blow-in capability
    • Minimum internal diameter 3.5 mm
  • Operating temperature range
    • -20 °C to +60 °C
  • Storage temperature range
    • -40 °C to +70 °C
