Detailed Description

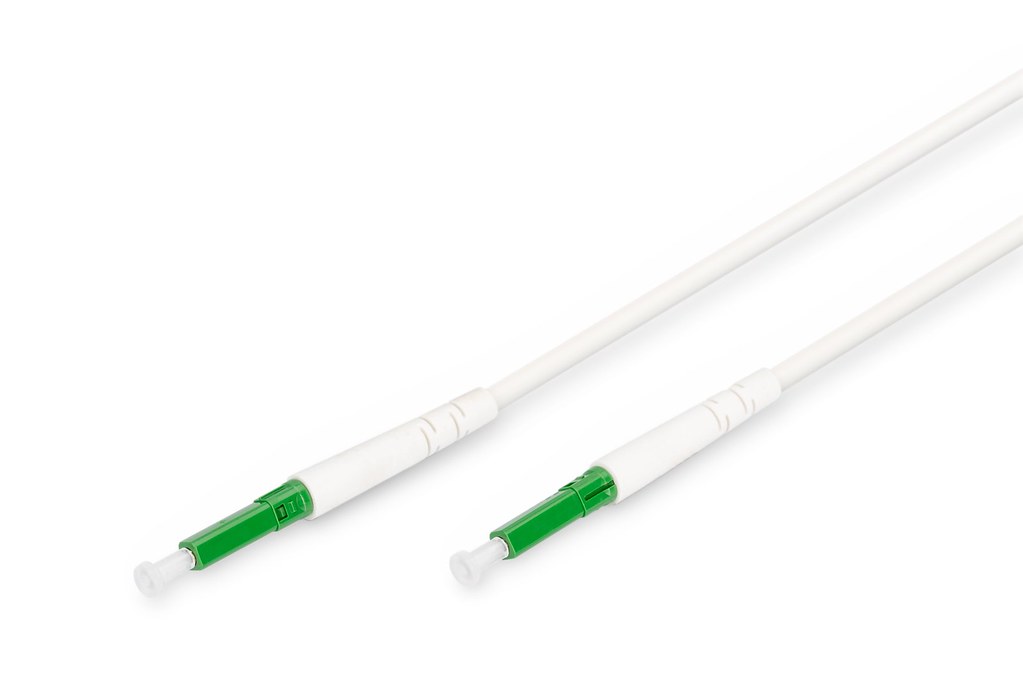

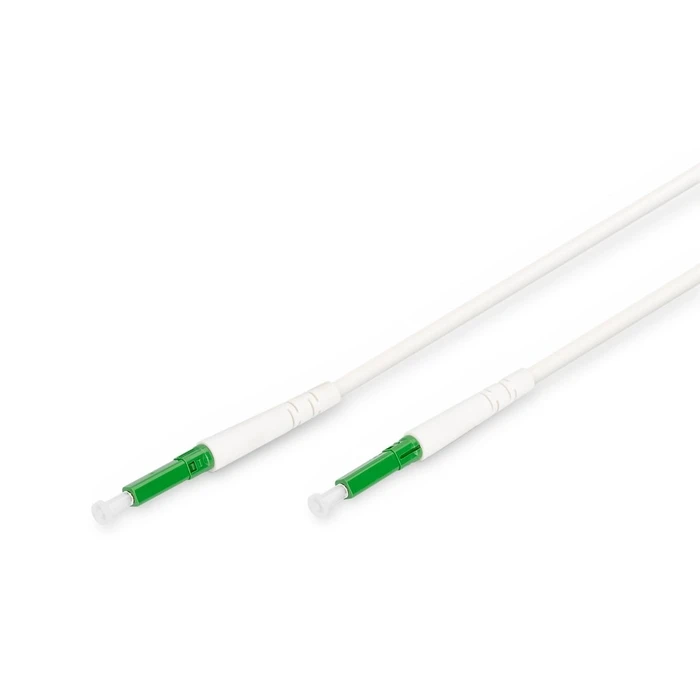

The Digitus FTTH LC/LC 10.00m Singlemode 1 Faser (DK-3901LCA-10) is a pre-assembled fiber optic drop cable designed specifically for Fiber to the Home (FTTH) applications. This cable ensures reliable performance and minimal signal loss even in tight installation spaces.

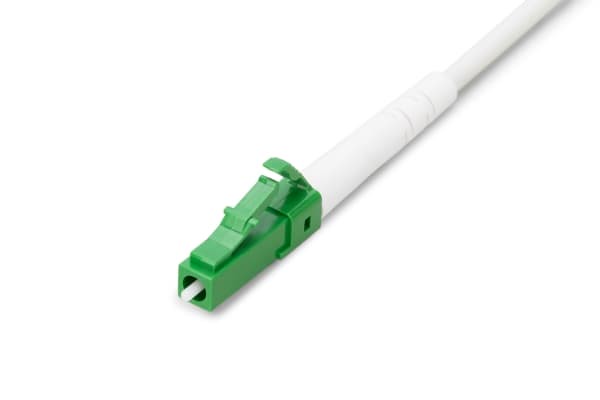

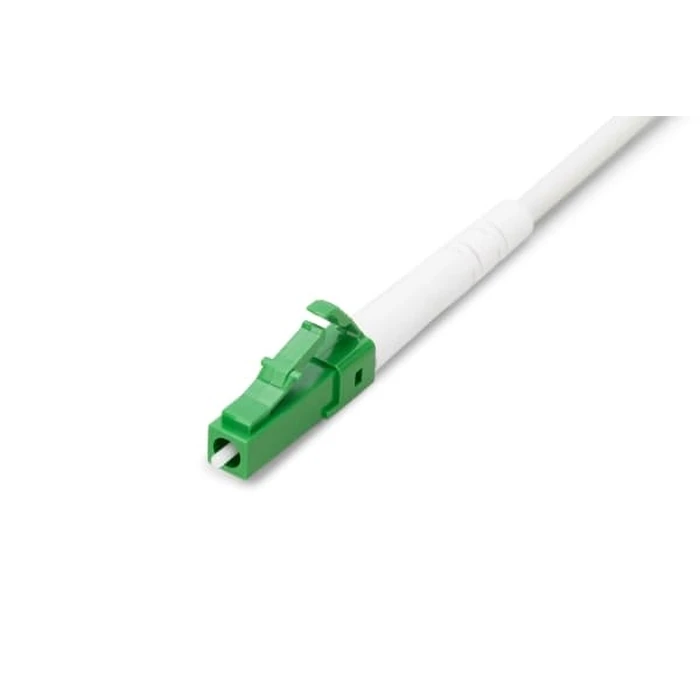

Featuring a singlemode ITU-T G.657.A2 bend-insensitive fiber, this cable comes with factory-fitted LC/APC connectors on both ends, which eliminates the need for on-site splicing. This greatly reduces installation time and potential failure points.
- Insertion Loss: 0.3 dB
- Return Loss: ≥60 dB
- Operating Temperature Range: -20 °C to +60 °C
- Storage Temperature Range: -40 °C to +70 °C
This cable is reinforced with aramid yarn (Kevlar) for added tensile strength and supports air-assisted blow-in installation into microducts.
In summary, the Digitus DK-3901LCA-10 cable is an ideal solution for expanding fiber optic networks efficiently and effectively, making it a reliable choice for broadband infrastructures.
Specifications
-
Fiber Type
- Singlemode ITU-T G.657.A2
-
Number of Fibers
- 1 fiber
-
Cable Length
- 10 meters
-
Outer Diameter
- 2.8 mm
-
Connector Type
- LC/APC to LC/APC
-
Insertion Loss
- 0.3 dB
-
Return Loss
- ≥ 60 dB (APC)
-
Minimum Bending Radius
- 10 mm (operation)
-
Sheath Material
- Polyethylene (PE)
-
Reinforcement
- Aramid yarn (Kevlar)
-
Installation Method
- Blow-in via microduct (≥3.5 mm ID)
-
Operating Temperature Range
- -20 °C to +60 °C
-
Storage Temperature Range
- -40 °C to +70 °C
-
Color
- White
