Καλώδιο Οπτικής Ίνας Cisco 10Gbase Active Optical Sfp+
| Installment plan | Amount / month |
|---|---|
| 2 | 136,46 € |
| 4 | 68,59 € |
| 6 | 45,97 € |
| 8 | 34,66 € |
| 10 | 27,88 € |
| 12 | 23,35 € |
| 18 | 15,82 € |
| 24 | 12,05 € |
| 36 | 8,29 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

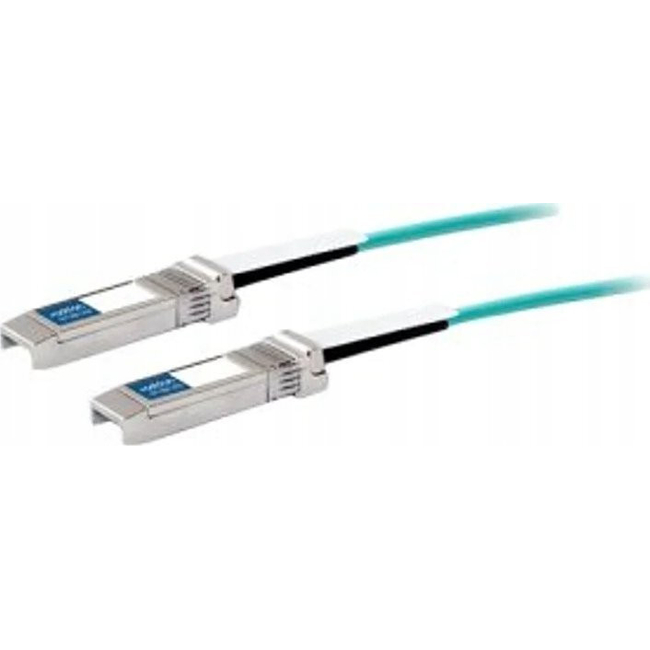

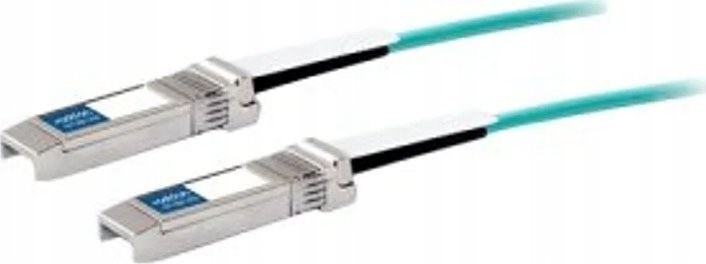

The 10GBASE ACTIVE OPTICAL SFP+ is a high-performance active optical cable assembly specifically engineered for short-range data transmission up to 10 Gbps. This solution is perfect for applications like 10 Gigabit Ethernet (10GbE), InfiniBand, and Fibre Channel in data centers.
Key features include:
- Bi-directional Data Rate: Supports up to 10 Gbps per channel, ensuring high bandwidth.
- Form Factor: SFP+, compliant with industry standards, providing easy installation.
- Optical Technology: Utilizes 850 nm VCSEL transmitters for optimized performance.
This cable is factory-terminated and offers various length options while maintaining reliability with a hot-pluggable design.
Additionally, it is compliant with major switch and router brands, including compatibility with Cisco equipment. Its benefits include low power consumption and a broad operating temperature range, making it suitable for various commercial environments.
Whether connecting servers or expanding storage capabilities, the 10GBASE ACTIVE OPTICAL SFP+ cable stands out as a robust choice for high-speed networking.
Specifications
-
Module Form Factor
- SFP+ (SFF-8431/8432/8472)
-
Supported Protocols
- 10G Ethernet, InfiniBand (QDR/DDR/SDR), 1/2/4/8G Fibre Channel
-
Data Rate
- 1–10.3125 Gbps (per channel)
-
Wavelength
- 850 nm (VCSEL, multimode fiber)
-
Cable Length (typical)
- 10 m (model dependent)
-
Max Distance
- Up to 300 m (OM3 MMF), 100 m (other specs)
-
Fiber Type
- Multimode (OM3)
-
Transmitter Optical Power
- -6.5 to -1 dBm (average launched into MMF)
-
Receiver Sensitivity
- -11.1 dBm (max), Overload -1 dBm
-
Extinction Ratio
- ≥3.5 dB
-
Operating Temperature
- 0°C to +70°C
-
Storage Temperature
- -20°C to +85°C
-
Supply Voltage/Current
- 3.3V, 230 mA per end (typical)
-
Power Consumption
- <1W per end
-
EMI Protection
- All-metal housing
-
Compliance
- RoHS, MSA (SFF-8431/8432/8472), 10G FC
-
Warranty
- Lifetime (some brands)
