Καλώδιο Δικτύου Zyxel 100G QSFP28 DAC 1M
εως 36 δόσεις με πιστωτική κάρτα
Need Help? Fill in your details so we can call you immediately!
Πιστωτική Κάρτα
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)

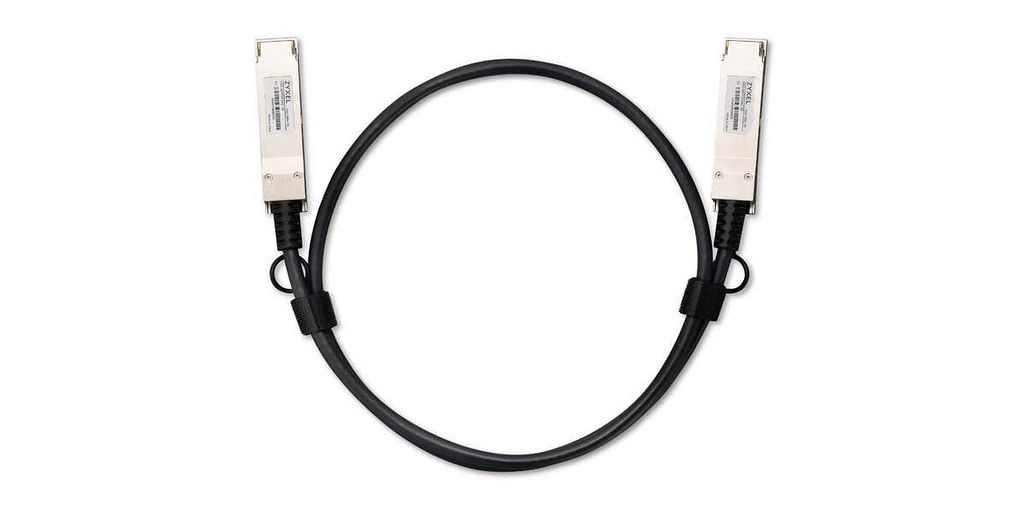

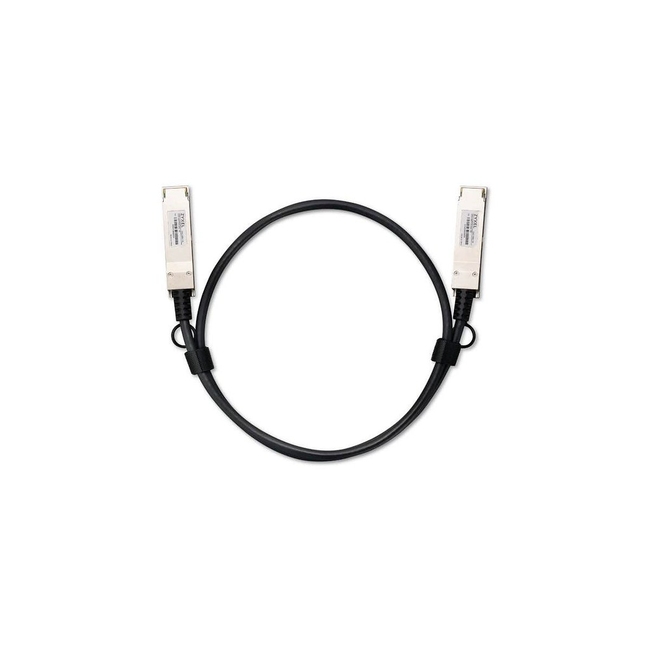

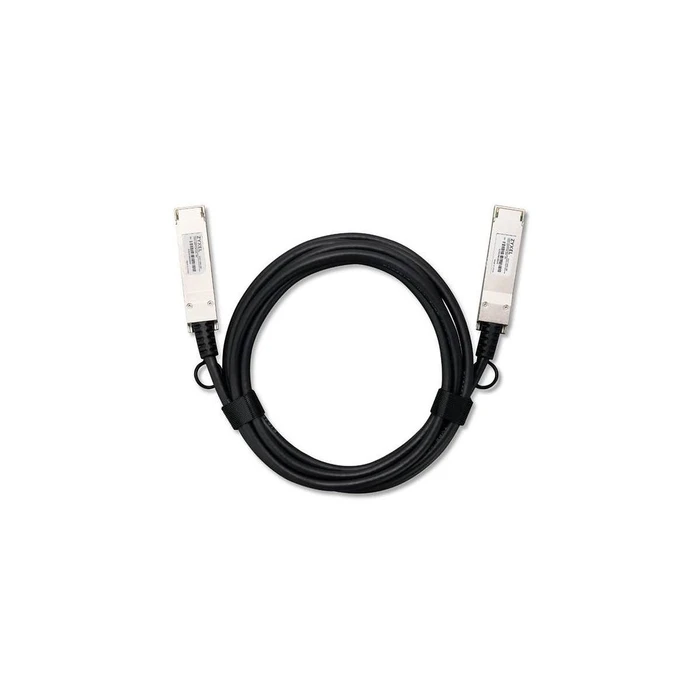

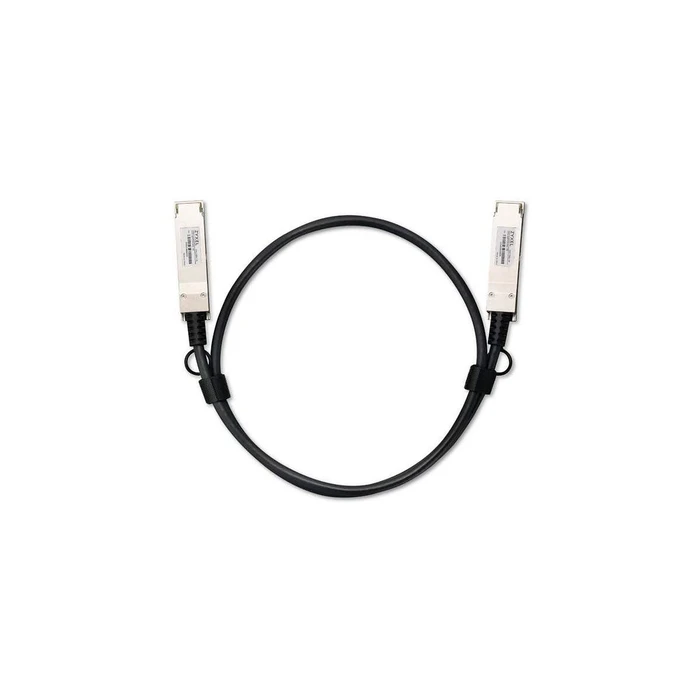

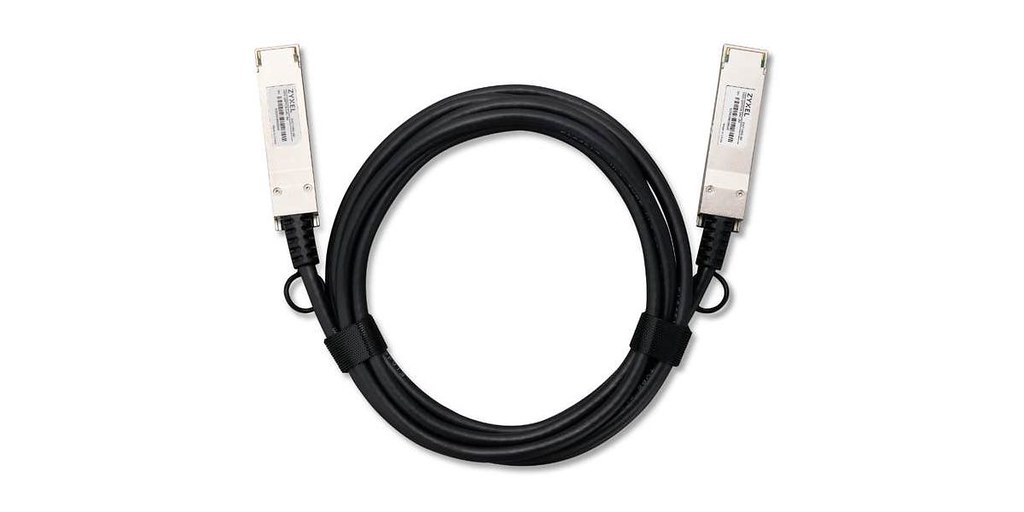

The Zyxel 100G QSFP28 DAC 1M Network Cable is an essential component for achieving high-speed connectivity in modern data centers.
Designed specifically for 100 Gigabit Ethernet, this 1-meter direct attach copper (DAC) cable provides exceptional performance with a maximum data transfer rate of 100 Gbit/s. It features a dual QSFP28 male connector on both ends, ensuring seamless compatibility with various networking devices.
Features:
- Data Rate: Max 100 Gbit/s, leveraging four lanes of 25.78 Gbit/s each.
- Electrical Characteristics: Bit Error Rate (BER) ≤ 10-12, suitable for high-density applications.
- Cable Structure: 26 AWG, with a cable diameter of approximately 9.5 to 9.8 mm.
- Operating Temperature: - from 0 to 70 °C.
This cable excels in environments such as Storage Area Networks (SAN) and high-performance computing, making it a versatile choice for enterprise network infrastructures.
With plug-and-play functionality, the Zyxel 100G QSFP28 DAC 1M assures a cost-effective and reliable solution for short-range, high-speed network interconnections.
-
Cable Type100G QSFP28 Passive DAC copper cable
-
ConnectorQSFP28 male on both ends
-
Data Rate100 Gbit/s
-
Bit Error Rate≤ 10^-12
-
Cable impedance90 - 110 Ω
-
Cable Diameter9.5 - 9.8 mm
-
Wire gauge26 AWG
-
Minimum Bend Radius50 mm
-
Operating Temperature Range0 to 70 °C
-
Power Supply3.135 V to 3.465 V
-
Max Current150 mA
Ratings
Description
The Zyxel 100G QSFP28 DAC 1M Network Cable is an essential component for achieving high-speed connectivity in modern data centers.
Designed specifically for 100 Gigabit Ethernet, this 1-meter direct attach copper (DAC) cable provides exceptional performance with a maximum data transfer rate of 100 Gbit/s. It features a dual QSFP28 male connector on both ends, ensuring seamless compatibility with various networking devices.
Features:
- Data Rate: Max 100 Gbit/s, leveraging four lanes of 25.78 Gbit/s each.
- Electrical Characteristics: Bit Error Rate (BER) ≤ 10-12, suitable for high-density applications.
- Cable Structure: 26 AWG, with a cable diameter of approximately 9.5 to 9.8 mm.
- Operating Temperature: - from 0 to 70 °C.
This cable excels in environments such as Storage Area Networks (SAN) and high-performance computing, making it a versatile choice for enterprise network infrastructures.
With plug-and-play functionality, the Zyxel 100G QSFP28 DAC 1M assures a cost-effective and reliable solution for short-range, high-speed network interconnections.
Technical Specifications
-
Cable Type100G QSFP28 Passive DAC copper cable
-
ConnectorQSFP28 male on both ends
-
Data Rate100 Gbit/s
-
Bit Error Rate≤ 10^-12
-
Cable impedance90 - 110 Ω
-
Cable Diameter9.5 - 9.8 mm
-
Wire gauge26 AWG
-
Minimum Bend Radius50 mm
-
Operating Temperature Range0 to 70 °C
-
Power Supply3.135 V to 3.465 V
-
Max Current150 mA
