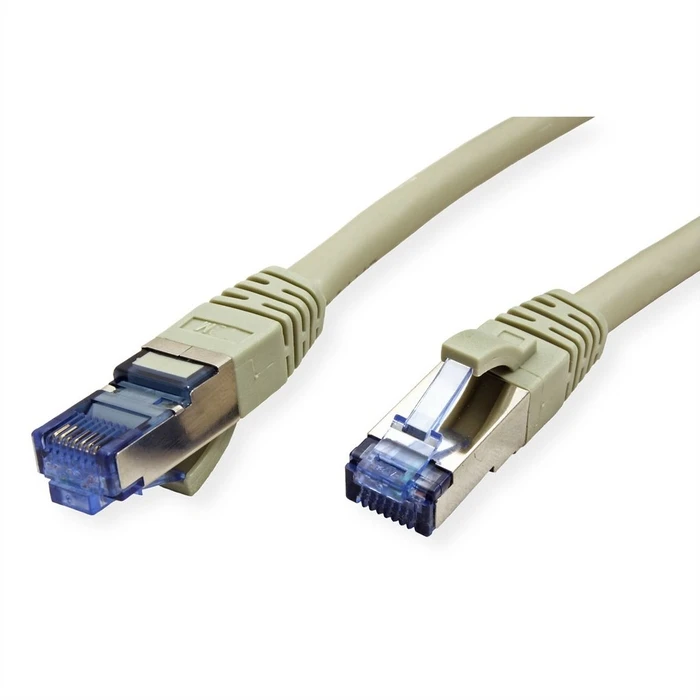

Καλώδιο Δικτύου Value S/Ftp(Pimf) Kat6A 7m
| Installment plan | Amount / month |
|---|---|
| 2 | 43,05 € |
| 4 | 21,64 € |
| 6 | 14,50 € |
| 8 | 10,93 € |
| 10 | 8,79 € |
| 12 | 7,37 € |
| 18 | 4,99 € |
| 24 | 3,80 € |
| 36 | 2,61 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The S/FTP (PiMF) PATCHKABEL KAT6A is designed for high-performance Ethernet networking, suitable for demanding environments. Its advanced shielding technology ensures minimal interference and crosstalk, making it a reliable choice for professional installations.
Key features include:
- Cable Type: S/FTP (Screened Foiled Twisted Pair) with PiMF shielding, offering superior protection.
- Category: Cat 6A (Class EA), capable of supporting 10 Gigabit Ethernet networks.
- Sheath Material: Low Smoke Zero Halogen (LSOH), ensuring safety in indoor environments.
The connector type is RJ45 with gold-plated pins, ensuring excellent contact reliability and minimizing signal loss. Its molded design with shielding helps maintain high transmission quality.
Electrically, the cable features an impedance of 100 Ohms ± 5 Ohms and operates at frequencies up to 500 MHz. It is compliant with several important international standards, including EN 50173-1 and ISO/IEC 11801. This patch cable supports power over Ethernet as well and performs reliably between temperatures of 0°C to 60°C.
With its robust construction and top-notch specifications, the S/FTP (PiMF) PATCHKABEL KAT6A is an ideal solution for high-density networking setups, data centers, and enterprise LANs.
Specifications
-
Cable Category
- Cat 6A (Class EA)
-
Shielding Type
- S/FTP (PiMF)
-
Cable Construction
- 4 pairs x 7 strands (0.15mm copper wire) + foil + braid
-
Core Diameter / AWG
- AWG 26
-
Outer Diameter
- 4.1 mm
-
Sheath Material
- LSOH
-
Connector Type
- Shielded RJ45, 8P8C, gold-plated pins
-
Frequency Support
- Up to 500 MHz
-
Impedance
- 100 Ω ± 5 Ω
-
Operating Temperature Range
- 0°C to 60°C
-
Standards Compliance
- EN 50173-1, ISO/IEC 11801, IEC60332-1, IEC60603-7-5, TIA/EIA 568B
-
RoHS Compliance
- Yes (2011/65/EU)
-
Typical Cable Length
- 5.0 meters
-
Color
- Grey
