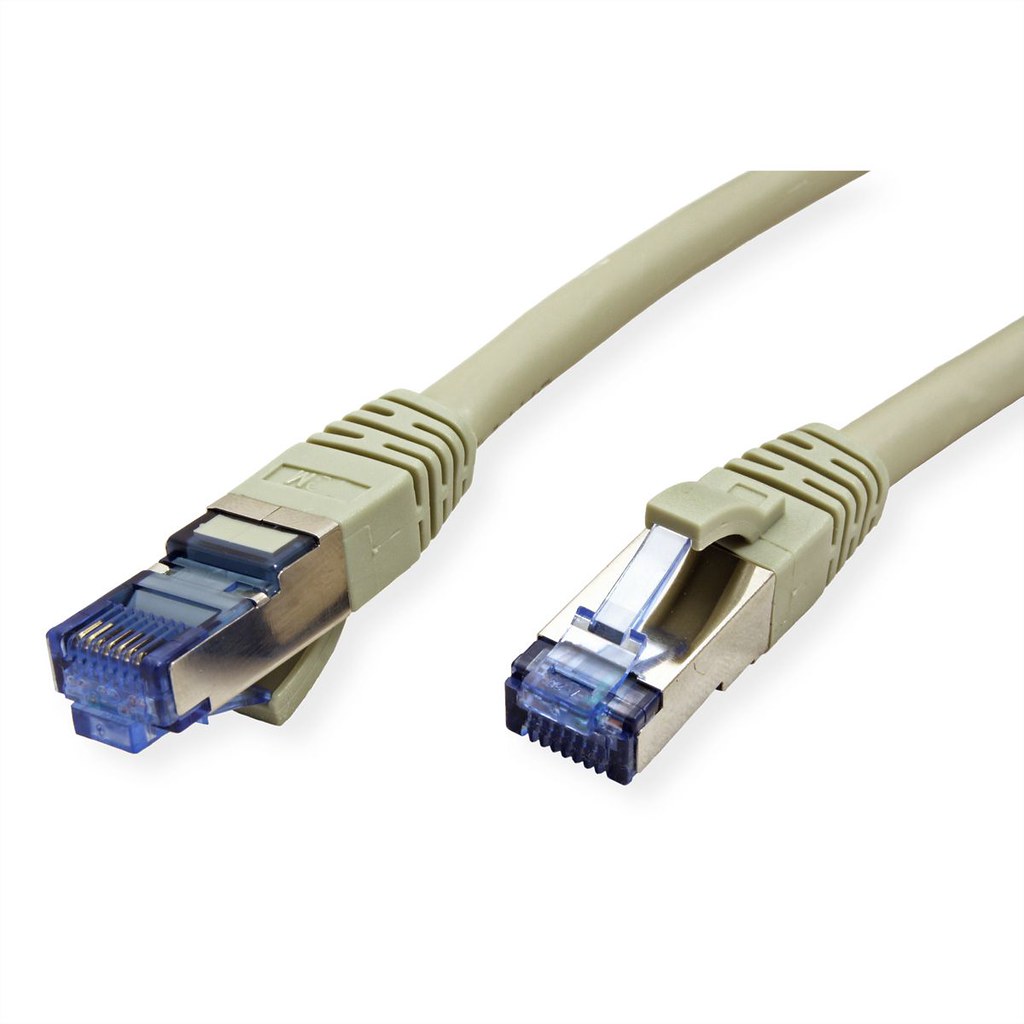

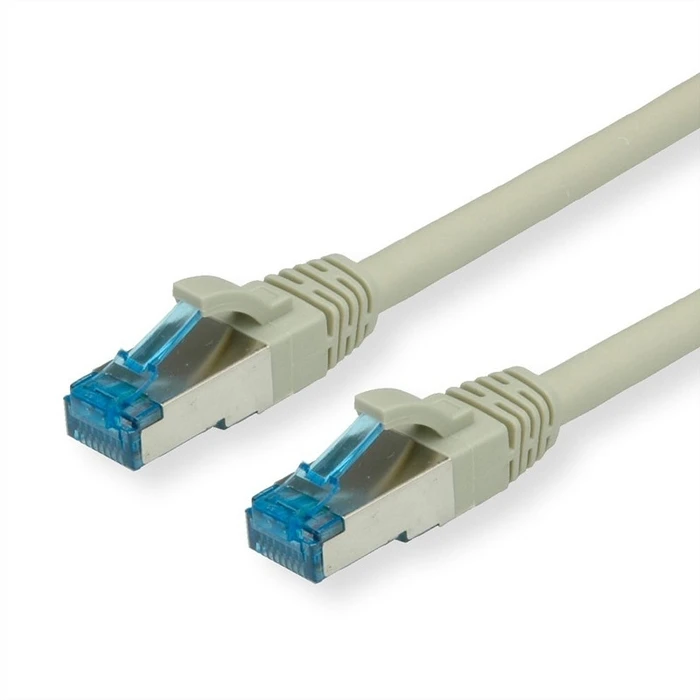

Καλώδιο Δικτύου Value S/Ftp(Pimf) Kat6A 2m
| Installment plan | Amount / month |
|---|---|
| 2 | 43,06 € |
| 4 | 21,64 € |
| 6 | 14,51 € |
| 8 | 10,94 € |
| 10 | 8,80 € |
| 12 | 7,37 € |
| 18 | 4,99 € |
| 24 | 3,80 € |
| 36 | 2,61 € |
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description
The S/FTP (PIMF) PATCHKABEL KAT6A is a high-performance patch cable crafted for reliable and efficient networking solutions. This cable adheres strictly to Category 6A standards, making it perfect for 10 Gigabit Ethernet applications.
Key Features:
- Data Transmission: Supports frequencies up to 500 MHz.
- Shielding: Utilizes S/FTP shielding, with both overall foil and individual pair shielding to minimize electromagnetic interference (EMI).
- Safety: Constructed with a low smoke zero halogen (LSOH/LSZH) jacket, reducing toxic emissions in fire situations.
This patch cable is especially beneficial in crowded environments where multiple devices are present, as it effectively reduces crosstalk and ensures stable connectivity. Moreover, it features high-quality copper conductors that provide exceptional signal integrity.
With robust RJ45 connectors fitted with gold-plated pins, users can expect reliable connections and resistance to corrosion. The cable comes with certified testing, confirming compliance with stringent Cat6A standards.
In summary, the S/FTP (PIMF) PATCHKABEL KAT6A is your go-to solution for modern networking demands, ensuring efficiency, reliability, and safety.
Specifications
-
Cable Category
- Cat 6A
-
Shielding Type
- S/FTP (PiMF) – Pair in Metal Foil + Overall Foil + Braid
-
Conductor Material
- Copper (Cu)
-
Conductor Diameter/AWG
- 26 AWG, typically 7 strands of 0.15 mm or 0.2 mm diameter wire bundles
-
Cable Construction
- 4 twisted pairs, each individually foil shielded, plus an overall combined shield plus braid
-
Outer Diameter
- Approximately 4.1 to 5.9 mm
-
Cable Jacket Material
- LSOH/LSZH (Low Smoke Zero Halogen)
-
Connector Type
- RJ45 8P8C shielded, gold-plated pins with molded strain relief
-
Impedance
- 100 Ω +/- 5 Ω
-
Frequency Range
- Up to 500 MHz
-
Maximum Data Rate
- Supports 10 Gbps Ethernet
-
Operating Temperature
- 0°C to +60°C (some versions -20°C to +60°C)
-
Standards Compliance
- EN 50173-1, ISO/IEC 11801, IEC60332-1, IEC-60603-7-5, TIA/EIA 568B, RoHS 2011/65/EU
-
Fire Classification
- Typically CPR class Fca (non-permanent installations)
-
Color
- Grey
