Καλώδιο Δικτύου RJ45 7.50m Gray Cat5e SF/UTP
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

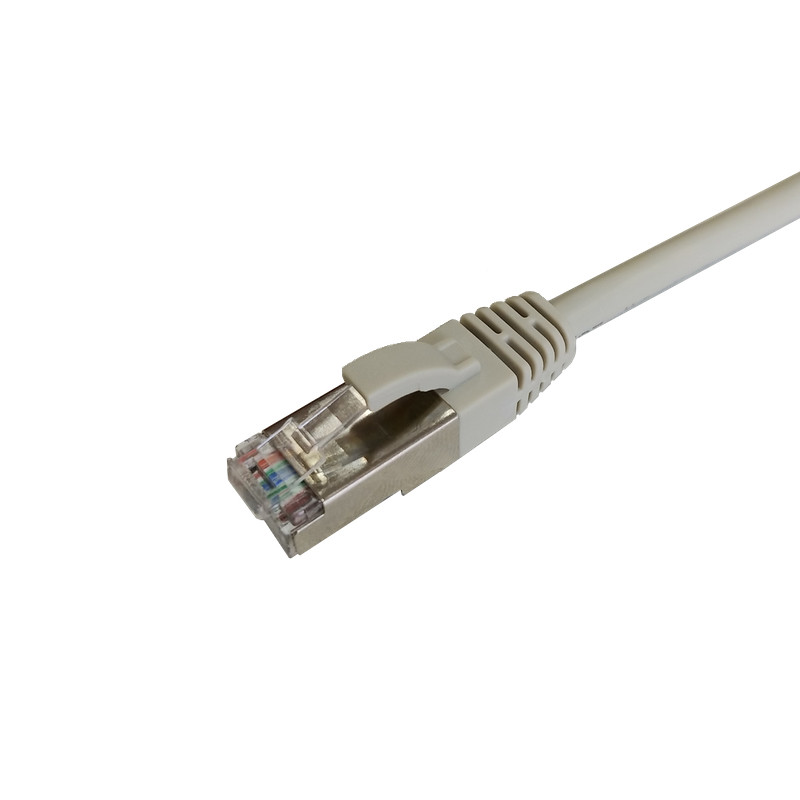

The Kαλώδιο Δικτύου RJ45 7.50m Gray Cat5e SF/UTP is engineered for high-speed performance, designed to facilitate data transmission up to 1 Gbps (1000 Mbps) over a 7.5 meter length. This Ethernet network cable features an RJ45 connector on both ends, allowing seamless connections between various devices such as PCs and network hardware.
One of the standout features of this cable is its CAT5e SF/UTP (Screened Foiled/Unshielded Twisted Pair) design. The integrated shielding consists of a protective foil around the twisted pairs, complemented by an overall copper braid, effectively reducing electromagnetic interference (EMI) and radio frequency interference (RFI). This significant shielding enhancement ensures optimal signal integrity and minimizes data errors, especially in electronically noisy environments.
Key Technical Specifications:
- Conductor: Composed typically of copper-clad aluminum (CCA) or pure copper (24 AWG gauge wire) for superior conductivity.
- Data Rate: Capable of supporting speeds up to 1 Gbps with a bandwidth frequency of 100 MHz, making it ideal for Gigabit Ethernet applications.
- Shielding: SF/UTP architecture combining aluminum foil and tinned copper braiding for effective noise protection.
- Cable Jacket: Made from durable gray PVC material, which offers flexibility and robust physical protection.
- Impedance: Characteristic impedance at 100 Ω ±15%, ensuring compatibility with networking standards.
- Operating Temperature: Functions efficiently between -20°C and +70°C, supporting diverse indoor conditions.
- Physical Features: Cable's bending radius is less than 8 times its diameter, with a pulling force capacity of around 9.5 kg.
- Connector Design: RJ45 connectors that are often gold-plated for enhanced corrosion resistance.
- Color: A gray outer sheath that suits professional installations.
This cable proves to be an excellent solution for both residential and office settings, providing reliable, high-speed wired connectivity while complying with TIA/EIA Cat5e networking standards.
Specifications
-
Conductor
- Copper-clad aluminum (CCA) or pure copper 24 AWG
-
Data rate
- Up to 1 Gbps
-
Bandwidth frequency
- 100 MHz
-
Shielding
- SF/UTP construction
-
Cable jacket
- Gray PVC
-
Impedance
- 100 Ω ±15%
-
Nominal capacitance
- 5.6 nF/100m
-
Operating temperature
- -20°C to +70°C
-
Bending radius
- Less than 8 times the cable diameter
-
Pulling force
- Around 9.5 kg
-
Connector design
- RJ45 straight connectors, gold-plated
-
Color
- Gray
