Detailed Description

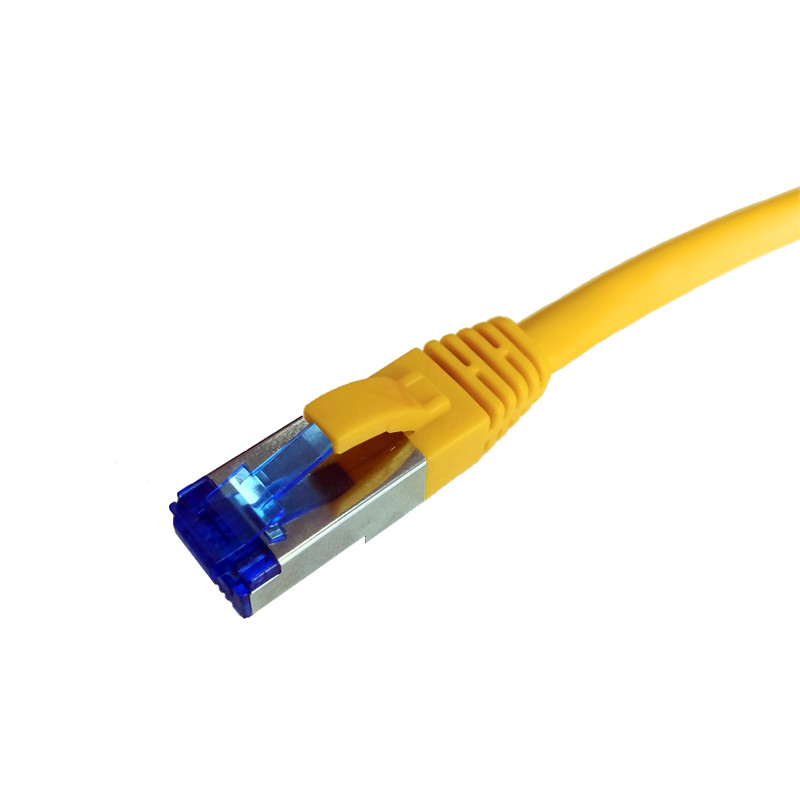

The Kαλώδιο Δικτύου RJ45 0.25m Yellow Cat6A S/FTP is engineered for high-performance Ethernet applications demanding superior speed. Its compliance with international standards such as IEC 61156-6 ensures reliability and efficiency. Key features include:
- Transmission Speed: Up to 10 Gbps
- Cable Length: 0.25 meters
- Shielding: S/FTP configuration for excellent EMI and RFI protection
This cable integrates four twisted pairs of copper conductors, each pair individually shielded, enhancing signal integrity. The outer sheath is made from a durable, low smoke zero halogen (LSZH) material, allowing it to resist flame, oil, ozone, and abrasion.
Raj45 connectors provide optimal connectivity with:
- Gold-plated contacts for corrosion resistance
- Capacity for over 750 mating cycles
- Recommended bending radius over 30 mm
Its electrical characteristics include:
- Characteristic Impedance: 100 ±15 Ω
- Nominal Velocity of Propagation: around 74%
- Contact Resistance: about 30 mΩ
Specifications
-
Transmission Speed
- 10 Gbps
-
Cable Length
- 0.25 m
-
Shielding
- S/FTP
-
Conductor AWG
- 24/7 or 27/7
-
Sheath Material
- Low Smoke Zero Halogen (LSZH)
-
Connector Type
- RJ45 8(8)
-
Diameter
- 6.0 mm
-
Characteristic Impedance
- 100 ±15 Ω
-
Nominal Velocity of Propagation
- 74%
-
Conductor DC Resistance
- 185 Ω/km
-
Resistance Unbalance
- <3%
-
Contact Resistance
- 30 mΩ
-
Test Voltage
- 1000 V DC
