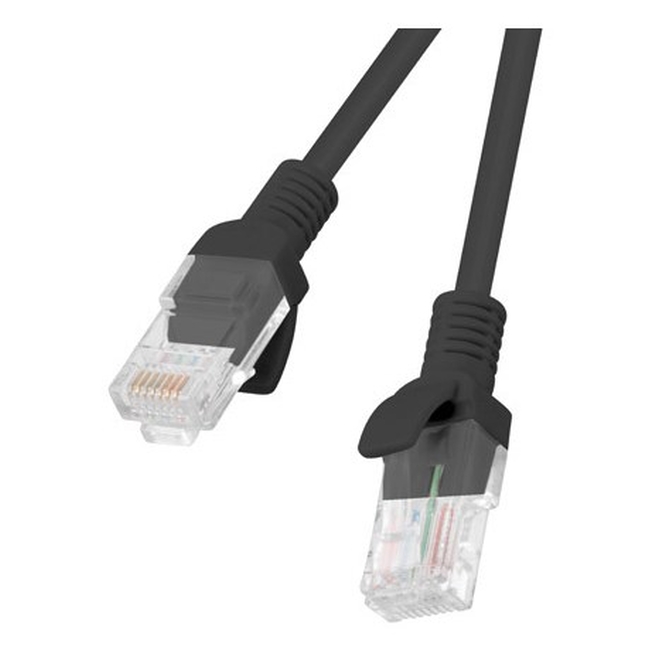

Καλώδιο Δικτύου Lanberg PCU5-20CC-0050-BK Black 0.5m Cat5e U/UTP (UTP)
Need Help? Fill in your details so we can call you immediately!
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The Lanberg PCU5-20CC-0050-BK is a Category 5e (Cat5e) Unshielded Twisted Pair (UTP) networking cable that excels in high-speed data transmission. This cable is meticulously designed to comply with modern networking requirements, facilitating reliable and efficient data transfer over distances up to 100 meters.
Key Features:
- Conductor Type: 24 AWG solid copper conductors with high-density polyethylene insulation.
- Cable Structure: Four pairs of twisted conductors to reduce crosstalk.
- Shielding: Unshielded design for effective noise suppression.
- Jacket Material: Flexible and durable PVC.
- Color Coding: Pairs color-coded for quick identification.
Dimensions:
- Cable Diameter: 5.0 mm ± 0.2 mm
- Weight per km: Approximately 28 kg/km
Mechanical Specifications:
- Max Pull Tension: 100 N
- Min Bend Radius (Installation): 8 times the outer diameter
Electrical Performance:
- Characteristic Impedance: 100 ± 15 Ω (1 to 100 MHz)
- DC Resistance (100 m): ? 9.38 Ω
- Operating Temperature: -20°C to +75°C
This cable is compliant with international standards such as ANSI/TIA-568-C.2 and is RoHS compliant, ensuring it meets environmental regulations.
-
Conductor Type24 AWG solid copper conductors
-
Cable StructureFour pairs of twisted conductors
-
ShieldingUnshielded
-
Jacket MaterialPVC
-
Cable Diameter5.0 mm ± 0.2 mm
-
Length0.5 meters
-
Weight28 kg/km
-
Max Pull Tension100 N
-
Min Bend Radius (Installation)8 times the outer diameter
-
Characteristic Impedance100 ± 15 Ω
-
DC Resistance? 9.38 Ω per 100 meters
-
Capacitance Unbalance to Earth? 330 pF/km
-
Delay Skew? 45 ns/100 meters
-
Nominal Velocity of Propagation68%
-
Propagation Delay? 533 ns/100 meters
-
Operating Temperature-20°C to +75°C
-
ComplianceANSI/TIA-568-C.2, ISO 11801, IEC 60603-7
-
RoHS ComplianceYes
-
ETL CertificationYes
Ratings
Description
The Lanberg PCU5-20CC-0050-BK is a Category 5e (Cat5e) Unshielded Twisted Pair (UTP) networking cable that excels in high-speed data transmission. This cable is meticulously designed to comply with modern networking requirements, facilitating reliable and efficient data transfer over distances up to 100 meters.
Key Features:
- Conductor Type: 24 AWG solid copper conductors with high-density polyethylene insulation.
- Cable Structure: Four pairs of twisted conductors to reduce crosstalk.
- Shielding: Unshielded design for effective noise suppression.
- Jacket Material: Flexible and durable PVC.
- Color Coding: Pairs color-coded for quick identification.
Dimensions:
- Cable Diameter: 5.0 mm ± 0.2 mm
- Weight per km: Approximately 28 kg/km
Mechanical Specifications:
- Max Pull Tension: 100 N
- Min Bend Radius (Installation): 8 times the outer diameter
Electrical Performance:
- Characteristic Impedance: 100 ± 15 Ω (1 to 100 MHz)
- DC Resistance (100 m): ? 9.38 Ω
- Operating Temperature: -20°C to +75°C
This cable is compliant with international standards such as ANSI/TIA-568-C.2 and is RoHS compliant, ensuring it meets environmental regulations.
Technical Specifications
-
Conductor Type24 AWG solid copper conductors
-
Cable StructureFour pairs of twisted conductors
-
ShieldingUnshielded
-
Jacket MaterialPVC
-
Cable Diameter5.0 mm ± 0.2 mm
-
Length0.5 meters
-
Weight28 kg/km
-
Max Pull Tension100 N
-
Min Bend Radius (Installation)8 times the outer diameter
-
Characteristic Impedance100 ± 15 Ω
-
DC Resistance? 9.38 Ω per 100 meters
-
Capacitance Unbalance to Earth? 330 pF/km
-
Delay Skew? 45 ns/100 meters
-
Nominal Velocity of Propagation68%
-
Propagation Delay? 533 ns/100 meters
-
Operating Temperature-20°C to +75°C
-
ComplianceANSI/TIA-568-C.2, ISO 11801, IEC 60603-7
-
RoHS ComplianceYes
-
ETL CertificationYes
