Detailed Description

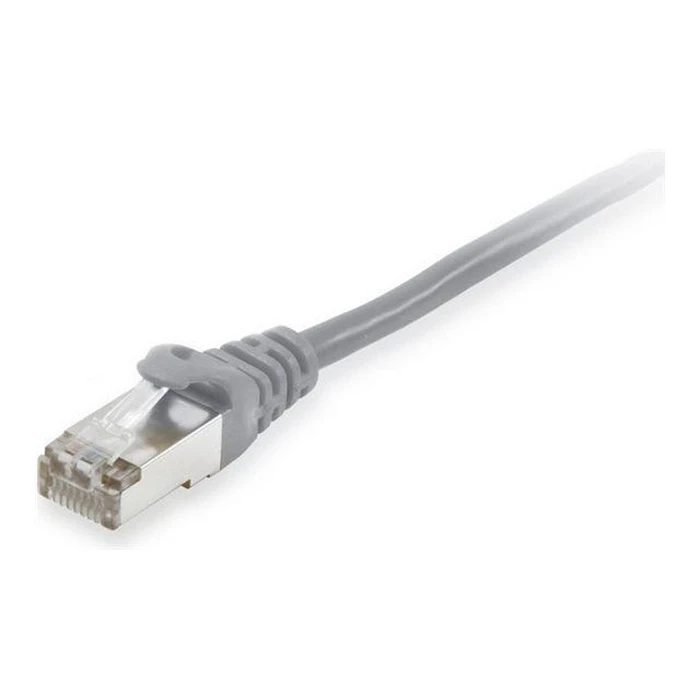

The Equip Cat6A S/FTP 2xRJ45 0.15m Gray LSZH polybag is a high-performance network patch cable designed for optimal data transmission. This cable boasts a Cat.6A certification, ensuring it meets stringent performance standards. Its S/FTP shielding structure provides enhanced protection, with individual foil shielding for each twisted pair, complemented by an overall braided shield, safeguarding against electromagnetic interference.
With the capability to support data transmission rates up to 10 Gbit/s, it is ideal for 10G Ethernet networks and applications that demand high-speed, error-free connectivity.
Key technical specifications include:
- Category: Cat.6A compliant (supports frequencies up to 500 MHz minimum, with some cables rated up to 650 MHz).
- Shielding: S/FTP (Screened Foiled Twisted Pair) — incorporating a foil shield on each twisted pair and an overall braided shield.
- Connectors: Two RJ45 male connectors.
- Length: 0.15 meters (15 cm), ideal for short patch connections.
- Conductor: Stranded bare copper with AWG 26 size.
- Jacket Material: Low Smoke Zero Halogen (LSZH) gray jacket, designed to minimize smoke emission and avoid halogen gases in fire situations.
- Impedance: 100 ohms characteristic impedance.
- Voltage and Resistance: Capable of handling operating voltages up to 80 V with low DC resistance for high-speed data transmission.
- Transmission: Compatible with 10G Ethernet standards, PoE, and PoE+.
- Compliance: RoHS compliant for environmentally friendly manufacturing.
This cable is engineered for reliable, high-speed networking in professional settings, combining robustness through effective shielding with premium materials while adhering to fire safety standards. The 0.15 m length caters perfectly to close-proximity device connections, thereby reducing cable clutter.
Specifications
-
Category
- Cat.6A compliant
-
Shielding
- S/FTP
-
Connectors
- Two RJ45 male connectors
-
Length
- 0.15 meters
-
Conductor
- Stranded bare copper with AWG 26 size
-
Jacket Material
- Low Smoke Zero Halogen (LSZH) gray
-
Impedance
- 100 ohms
-
Voltage
- Up to 80 V
-
Resistance
- Low DC resistance
-
Transmission
- Supports 10G Ethernet, PoE, and PoE+
-
Compliance
- RoHS compliant
