Καλώδιο Δικτύου EFB RJ45 SF/UTP, Cat.5e, PVC, CCA, 3m, Black
για καλύτερη τιμή!
Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα.
-
Pickup from the store:El. Ave. Venizelou 73 (formerly Theseos), Kallithea
-
Pick up from a BoxNow machine:With BoxNow you can pick up your parcel from an Automatic Pickup Machine that is near you at all hours of the day 24/7. Possibility of cash on delivery with an additional fee of €1
-
Shipping to your location (Calculate shipping):
Detailed Description

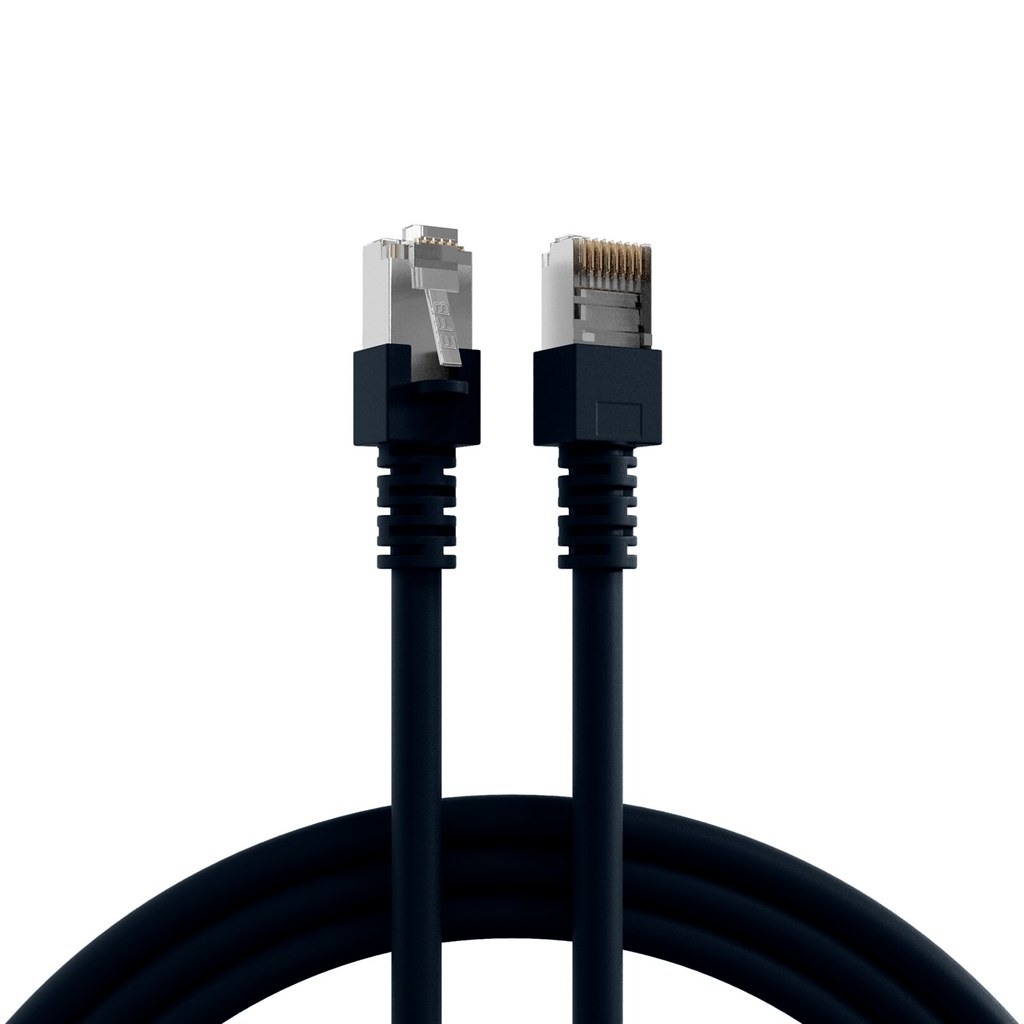

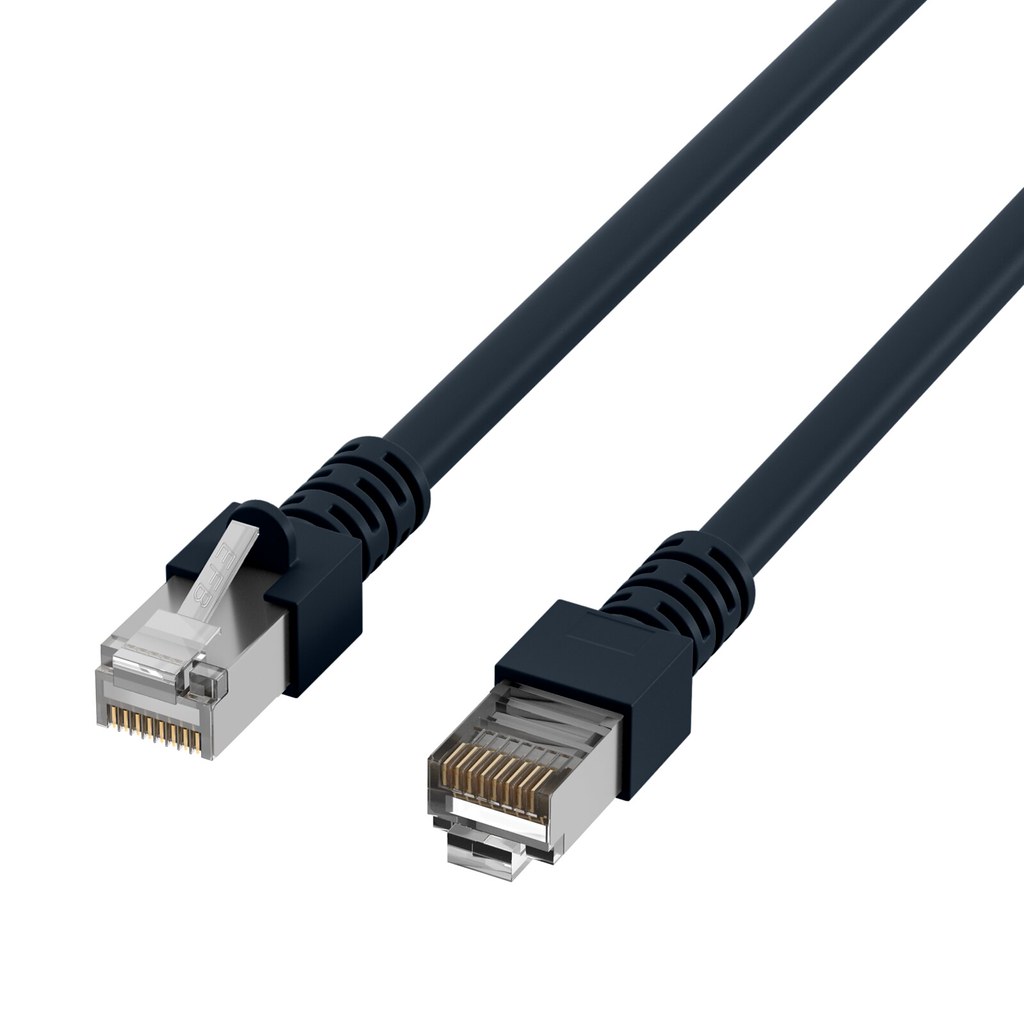

The EFB RJ45 SF/UTP Network Cable, Cat.5e, PVC, CCA, 3m, Black is a high-quality shielded Ethernet patch cable designed for reliable and stable network connectivity in both home and office environments.
Featuring a robust SF/UTP (Shielded Foiled / Unshielded Twisted Pair) construction, this cable offers excellent protection against electromagnetic interference (EMI), ensuring clear signal transmission even in demanding environments.
Equipped with gold-plated RJ45 connectors on both ends, the cable guarantees low contact resistance and long-term durability. The patented anti-kink grommet provides strain relief and prevents cable damage at the connector junction, while the molded locking lever ensures a secure connection.
Key Features:
- Supports data transmission speeds up to 1 Gbps
- Suitable for 2.5 Gigabit Ethernet applications
- 1:1 pin configuration (straight-through)
The cable is constructed with CCA (Copper Clad Aluminum) conductors, offering a cost-effective solution with good conductivity, and is jacketed in flexible, durable black PVC for added resilience.
Applications include structured cabling, industrial Ethernet, and data center installations.
Specifications
-
Category
- Cat.5e
-
Cable Type
- SF/UTP
-
Conductor Material
- CCA
-
Conductor Gauge
- 4 pairs, AWG 26/7 stranded
-
Jacket Material
- PVC
-
Connector Type
- RJ45 male
-
Pin Configuration
- 1:1
-
Wiring Standard
- TIA/EIA 568B
-
Shielding
- Double shielding
-
Bandwidth
- 100 MHz
-
Max. Data Rate
- 2.5 Gbit/s
-
Temperature Range
- -5°C to +70°C
-
Outer Diameter
- 5.7 mm
-
Anti-kink Grommet
- Yes
-
Locking Lever
- Yes
-
Gold Plated Contacts
- Yes
-
Halogen Free
- No
-
Mating Cycles
- ≥750
-
Bending Radius
- >25 mm
-
Conductor Resistance
- 146 Ω/km
-
Loop Resistance
- 292 Ω/km
-
Insulation Resistance
- 10 MΩ
-
Contact Resistance
- 30 mΩ
-
Test Voltage
- 1000 V DC
-
Approvals
- IEC 60603-7-3, EN 50173
