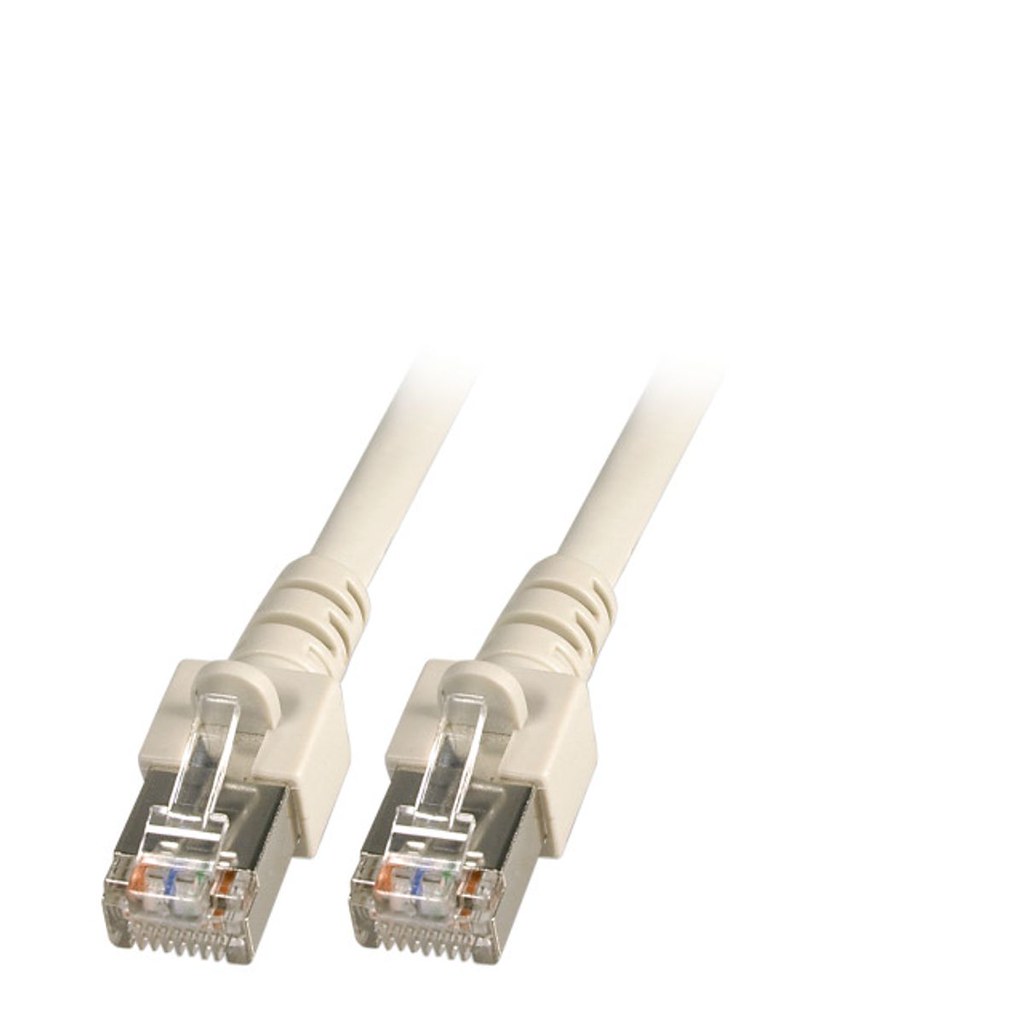

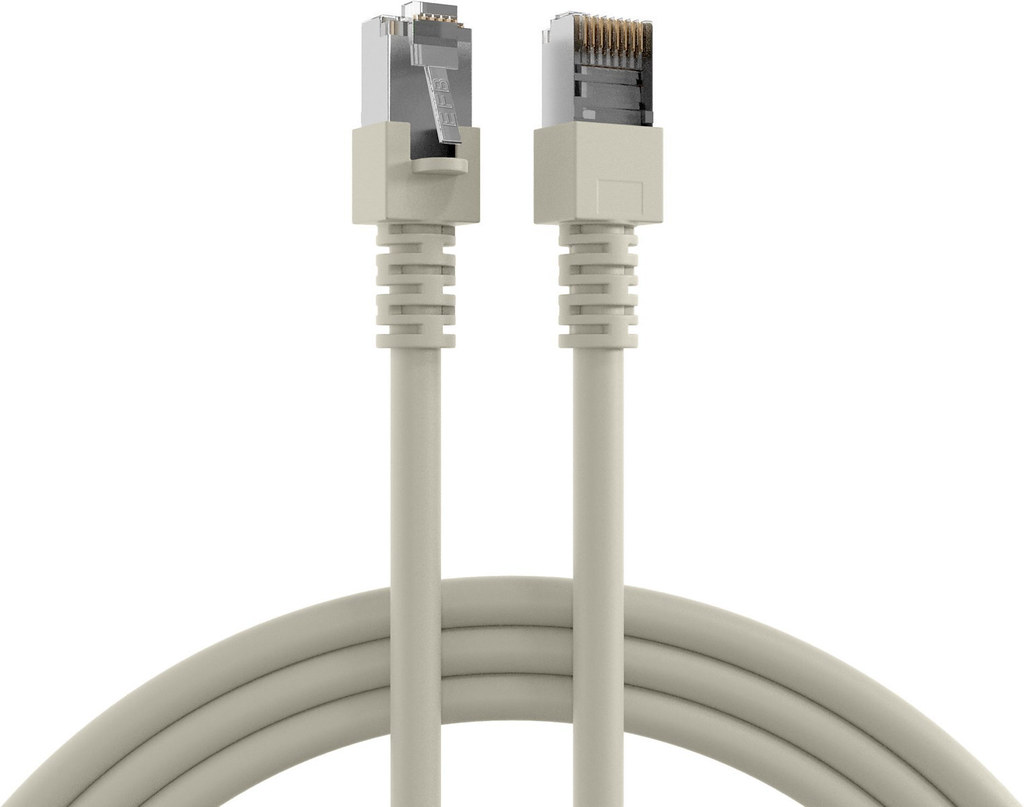

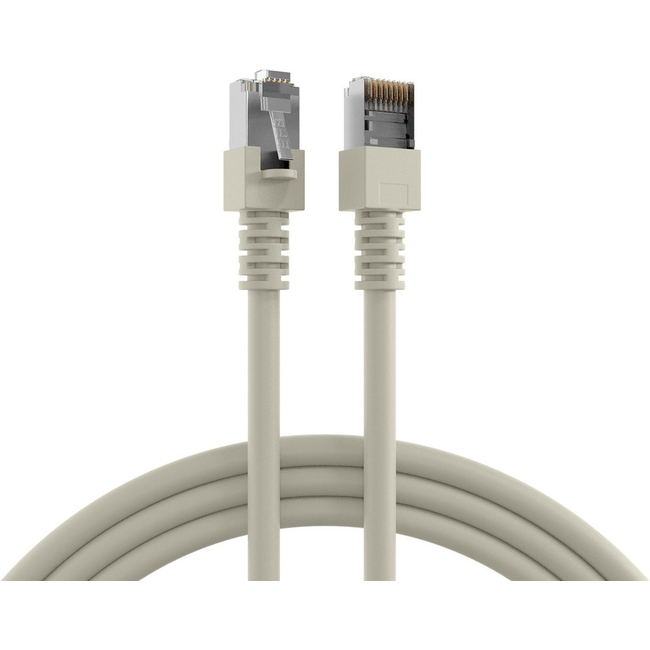

Καλώδιο Δικτύου EFB RJ45 SF/UTP, Cat.5e, PVC, CCA, 25m, Gray
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The EFB K5455.25 is a professional-grade shielded Ethernet patch cable designed for high-performance network applications. This Cat.5e rated cable delivers reliable connectivity for modern Gigabit and multi-gigabit networks, making it suitable for data centers, industrial Ethernet installations, and structured building cabling systems.
Technical Specifications
Cable Characteristics
- Construction: SF/UTP (Shielded Foil/Unshielded Twisted Pair)
- Conductor Material: CCA (Copper-Clad Aluminium)
- Cross-Section Rating: AWG 26/7
- Outer Diameter: 5.7 mm
- Jacket Material: PVC (polyvinyl chloride)
Electrical Performance
- 2.5 Gigabit Ethernet Transmission at 100 MHz
- Conductor Resistance: 146 Ω/km
- Loop Resistance: 292 Ω/km
- Insulation Resistance: 10 MΩ
- Test Voltage: 1000 V DC
Connectors and Pinning
- Connector Type: RJ45 8(8) shielded connectors
- Gold-Plated Contacts: Supports maximum current of 1 A
- Pin Configuration: 1:1 straight-through assignment
Environmental Specifications
- Operating Temperature Range: -5 to 70°C
- Bending Radius: Greater than 25 mm
This patch cable is ideally suited for structured building cabling installations, industrial Ethernet applications, and data center deployments.
-
Cable CharacteristicsSF/UTP (Shielded Foil/Unshielded Twisted Pair)
-
Conductor MaterialCCA (Copper-Clad Aluminium)
-
Cross-Section RatingAWG 26/7
-
Outer Diameter5.7 mm
-
Jacket MaterialPVC
-
Ethernet Transmission2.5 Gigabit
-
Bandwidth100 MHz
-
Conductor Resistance146 Ω/km
-
Loop Resistance292 Ω/km
-
Insulation Resistance10 MΩ
-
Test Voltage1000 V DC
-
Connector TypeRJ45 8(8) shielded connectors
-
Gold-Plated Contacts1 A
-
Operating Temperature Range-5 to 70°C
-
Bending RadiusGreater than 25 mm
Ratings
Description
The EFB K5455.25 is a professional-grade shielded Ethernet patch cable designed for high-performance network applications. This Cat.5e rated cable delivers reliable connectivity for modern Gigabit and multi-gigabit networks, making it suitable for data centers, industrial Ethernet installations, and structured building cabling systems.
Technical Specifications
Cable Characteristics
- Construction: SF/UTP (Shielded Foil/Unshielded Twisted Pair)
- Conductor Material: CCA (Copper-Clad Aluminium)
- Cross-Section Rating: AWG 26/7
- Outer Diameter: 5.7 mm
- Jacket Material: PVC (polyvinyl chloride)
Electrical Performance
- 2.5 Gigabit Ethernet Transmission at 100 MHz
- Conductor Resistance: 146 Ω/km
- Loop Resistance: 292 Ω/km
- Insulation Resistance: 10 MΩ
- Test Voltage: 1000 V DC
Connectors and Pinning
- Connector Type: RJ45 8(8) shielded connectors
- Gold-Plated Contacts: Supports maximum current of 1 A
- Pin Configuration: 1:1 straight-through assignment
Environmental Specifications
- Operating Temperature Range: -5 to 70°C
- Bending Radius: Greater than 25 mm
This patch cable is ideally suited for structured building cabling installations, industrial Ethernet applications, and data center deployments.
Technical Specifications
-
Cable CharacteristicsSF/UTP (Shielded Foil/Unshielded Twisted Pair)
-
Conductor MaterialCCA (Copper-Clad Aluminium)
-
Cross-Section RatingAWG 26/7
-
Outer Diameter5.7 mm
-
Jacket MaterialPVC
-
Ethernet Transmission2.5 Gigabit
-
Bandwidth100 MHz
-
Conductor Resistance146 Ω/km
-
Loop Resistance292 Ω/km
-
Insulation Resistance10 MΩ
-
Test Voltage1000 V DC
-
Connector TypeRJ45 8(8) shielded connectors
-
Gold-Plated Contacts1 A
-
Operating Temperature Range-5 to 70°C
-
Bending RadiusGreater than 25 mm
