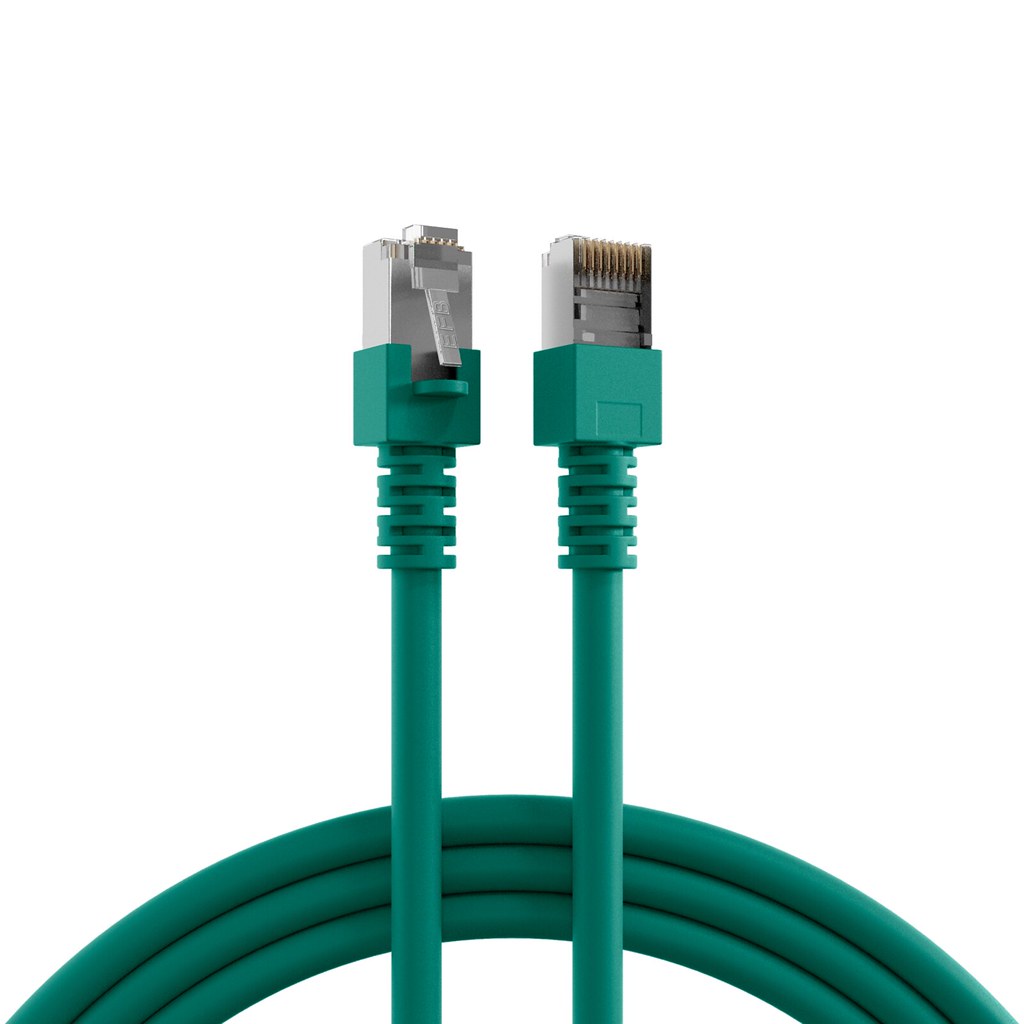

Καλώδιο Δικτύου EFB RJ45 SF/UTP, Cat.5e, PVC, CCA, 1m, Green
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The EFB RJ45 SF/UTP Network Cable, Cat.5e, PVC, CCA, 1m, Green is designed to provide exceptional connectivity. It meets the Category 5e (Cat.5e) standard, which is crucial for high-speed Ethernet applications.
With a SF/UTP structure, this cable offers outstanding protection against electromagnetic interference (EMI) and crosstalk, making it ideal for noisy environments. Here are some of its notable features:
- Durable PVC Jacket: Ensures flexibility and longevity.
- Cost-Effective CCA Conductors: Provides excellent conductivity without compromising performance.
The cable is equipped with standard male RJ45 connectors that feature patented anti-kink grommets for added protection. This design ensures the connectors remain secure and damage-free.
In summary, this network cable is perfect for linking devices such as computers and routers, delivering fast data transmission with minimal disruption.
-
CategoryCat.5e (up to 1 Gbps, supports 2.5 Gbit Ethernet)
-
Cable StructureSF/UTP (Shielded Foiled / Unshielded Twisted Pair)
-
Conductor MaterialCCA (Copper Clad Aluminum)
-
Conductor Cross Section4 pairs (8 wires) with AWG 26/7 strands
-
Cable Jacket MaterialPVC
-
ColorGreen
-
Connector TypeStandard male RJ45 connectors with anti-kink grommets
-
Pin Configuration1:1 (straight)
-
ShieldingDouble shielding for enhanced EMC protection
-
Outer Diameter5.7 mm
-
Temperature Range-5°C to 70°C
-
Frequency100 MHz
-
Max. Data Transfer Rate2.5 Gbit/s
-
Mating Cycles≥750
-
Bending Radius>25 mm
-
Conductor Resistance DC146 Ω/km
-
Loop Resistance292 Ω/km
-
Resistance Unbalance5%
-
Insulation Resistance10 MΩ
-
Contact Resistance30 mΩ
-
Test Voltage1000 V DC (1 min) core/core and core/screen
-
StandardsIEC 60603-7-3, TIA/EIA 568B
Ratings
Description
The EFB RJ45 SF/UTP Network Cable, Cat.5e, PVC, CCA, 1m, Green is designed to provide exceptional connectivity. It meets the Category 5e (Cat.5e) standard, which is crucial for high-speed Ethernet applications.
With a SF/UTP structure, this cable offers outstanding protection against electromagnetic interference (EMI) and crosstalk, making it ideal for noisy environments. Here are some of its notable features:
- Durable PVC Jacket: Ensures flexibility and longevity.
- Cost-Effective CCA Conductors: Provides excellent conductivity without compromising performance.
The cable is equipped with standard male RJ45 connectors that feature patented anti-kink grommets for added protection. This design ensures the connectors remain secure and damage-free.
In summary, this network cable is perfect for linking devices such as computers and routers, delivering fast data transmission with minimal disruption.
Technical Specifications
-
CategoryCat.5e (up to 1 Gbps, supports 2.5 Gbit Ethernet)
-
Cable StructureSF/UTP (Shielded Foiled / Unshielded Twisted Pair)
-
Conductor MaterialCCA (Copper Clad Aluminum)
-
Conductor Cross Section4 pairs (8 wires) with AWG 26/7 strands
-
Cable Jacket MaterialPVC
-
ColorGreen
-
Connector TypeStandard male RJ45 connectors with anti-kink grommets
-
Pin Configuration1:1 (straight)
-
ShieldingDouble shielding for enhanced EMC protection
-
Outer Diameter5.7 mm
-
Temperature Range-5°C to 70°C
-
Frequency100 MHz
-
Max. Data Transfer Rate2.5 Gbit/s
-
Mating Cycles≥750
-
Bending Radius>25 mm
-
Conductor Resistance DC146 Ω/km
-
Loop Resistance292 Ω/km
-
Resistance Unbalance5%
-
Insulation Resistance10 MΩ
-
Contact Resistance30 mΩ
-
Test Voltage1000 V DC (1 min) core/core and core/screen
-
StandardsIEC 60603-7-3, TIA/EIA 568B
