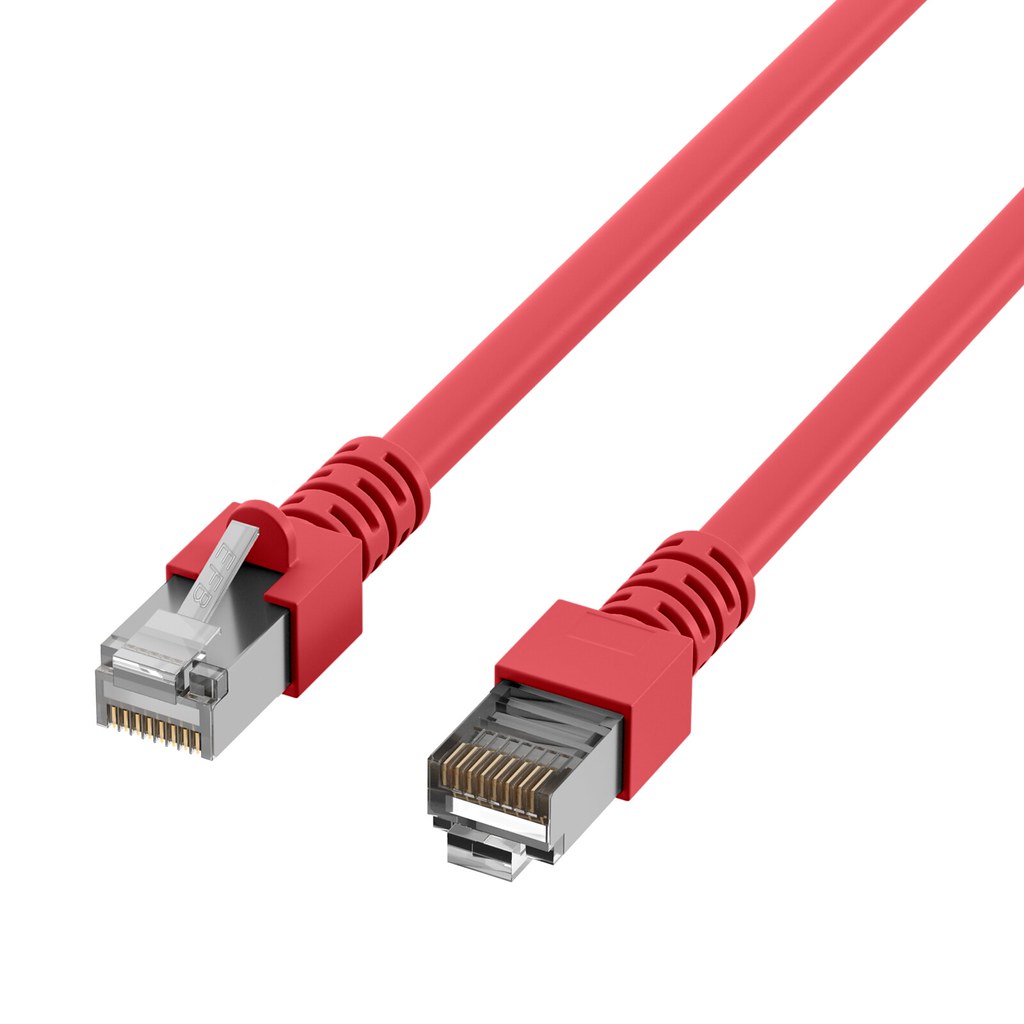

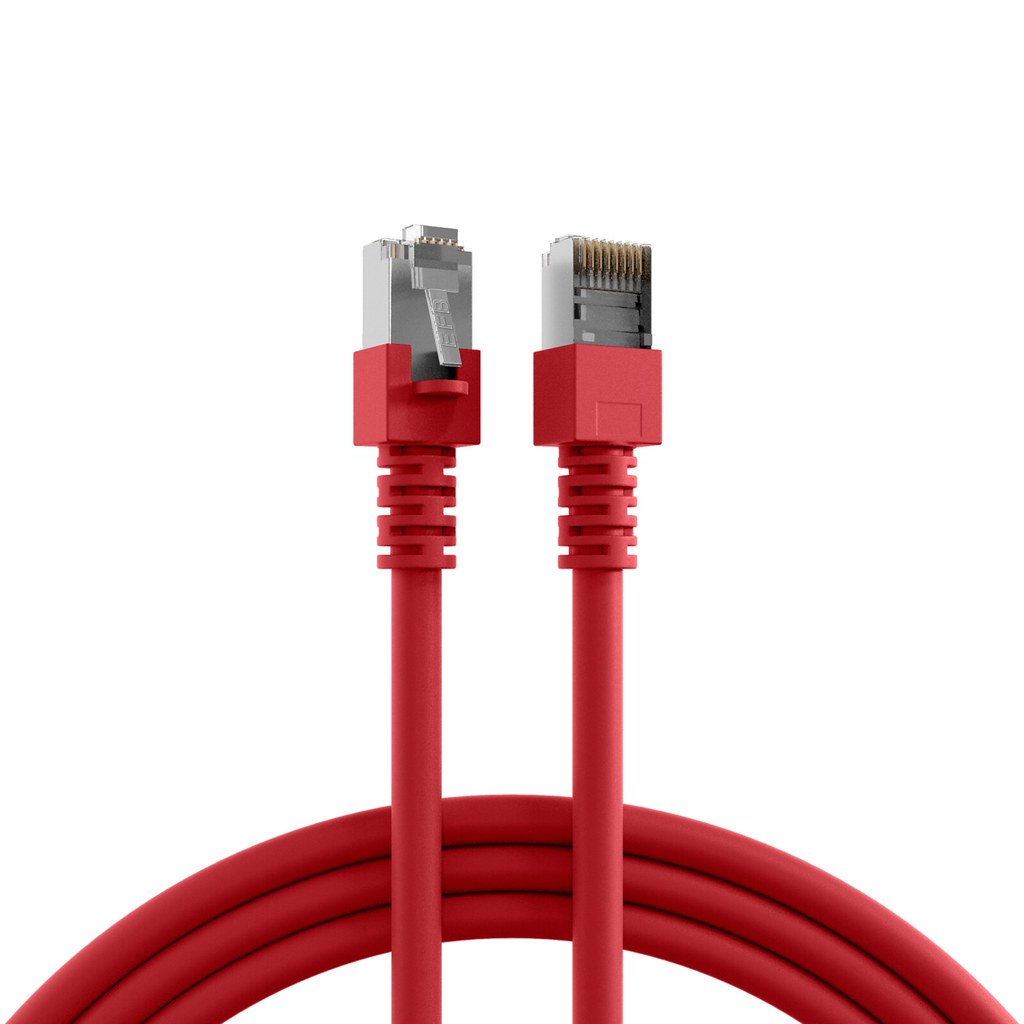

Καλώδιο Δικτύου EFB RJ45 SF/UTP, Cat.5e, PVC, CCA, 10m, Red
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The EFB RJ45 Patch Cable SF/UTP, Cat.5e, PVC, CCA, 10m, Red is a high-quality shielded network cable designed for reliable and stable Ethernet connections. In both office and industrial environments, this cable ensures optimal signal integrity and performance.
Featuring double shielding (SF/UTP), it offers excellent protection against electromagnetic interference (EMI). The robust PVC outer jacket provides durability while the conductors, made of copper-clad aluminum (CCA), strike a good balance between conductivity and cost-efficiency.
The gold-plated RJ45 connectors enhance corrosion resistance and ensure reliable signal transmission. Additionally, the molded anti-kink grommet and protective latch prevent accidental disconnection, ensuring long-term reliability.
Key Features:
- Double shielding (SF/UTP) for maximum EMI protection
- Gold-plated RJ45 connectors for reliable and corrosion-resistant connections
- Molded anti-kink grommet and latch protection for durability
- Supports PoE (Power over Ethernet) according to IEEE802.3af and PoE+ according to IEEE802.3at
- Ideal for high-speed network applications up to 2.5 Gbit/s
This cable is an excellent choice for users seeking a reliable, high-performance network solution with robust shielding and durable construction.
-
CategoryCat.5e
-
Cable TypeSF/UTP
-
Connector TypeRJ45 (8P8C), straight
-
Pin Configuration1:1 (straight-through)
-
Conductor MaterialCCA
-
Cross-Section4 x 2 x AWG26/7
-
Outer Diameter5.7 mm
-
Jacket MaterialPVC
-
ColorRed
-
Length10 m
-
ShieldingDouble shielding (SF/UTP)
-
Bandwidth100 MHz
-
Transmission Standard2.5 Gbit/s Ethernet
-
Contact PlatingGold-plated contacts
-
Temperature Range-5°C to +70°C
-
Mechanical CharacteristicsMating cycles: ≥750, Bending radius: >25 mm
-
Conductor resistance (DC)146 Ω/km
-
Loop resistance292 Ω/km
-
Resistance unbalance5%
-
Insulation resistance10 MΩ
-
Contact resistance30 mΩ
-
Test voltage1000 V DC (1 min, core/core and core/screen)
-
StandardsIEC 60603-7-3, TIA/EIA 568B
Ratings
Description
The EFB RJ45 Patch Cable SF/UTP, Cat.5e, PVC, CCA, 10m, Red is a high-quality shielded network cable designed for reliable and stable Ethernet connections. In both office and industrial environments, this cable ensures optimal signal integrity and performance.
Featuring double shielding (SF/UTP), it offers excellent protection against electromagnetic interference (EMI). The robust PVC outer jacket provides durability while the conductors, made of copper-clad aluminum (CCA), strike a good balance between conductivity and cost-efficiency.
The gold-plated RJ45 connectors enhance corrosion resistance and ensure reliable signal transmission. Additionally, the molded anti-kink grommet and protective latch prevent accidental disconnection, ensuring long-term reliability.
Key Features:
- Double shielding (SF/UTP) for maximum EMI protection
- Gold-plated RJ45 connectors for reliable and corrosion-resistant connections
- Molded anti-kink grommet and latch protection for durability
- Supports PoE (Power over Ethernet) according to IEEE802.3af and PoE+ according to IEEE802.3at
- Ideal for high-speed network applications up to 2.5 Gbit/s
This cable is an excellent choice for users seeking a reliable, high-performance network solution with robust shielding and durable construction.
Technical Specifications
-
CategoryCat.5e
-
Cable TypeSF/UTP
-
Connector TypeRJ45 (8P8C), straight
-
Pin Configuration1:1 (straight-through)
-
Conductor MaterialCCA
-
Cross-Section4 x 2 x AWG26/7
-
Outer Diameter5.7 mm
-
Jacket MaterialPVC
-
ColorRed
-
Length10 m
-
ShieldingDouble shielding (SF/UTP)
-
Bandwidth100 MHz
-
Transmission Standard2.5 Gbit/s Ethernet
-
Contact PlatingGold-plated contacts
-
Temperature Range-5°C to +70°C
-
Mechanical CharacteristicsMating cycles: ≥750, Bending radius: >25 mm
-
Conductor resistance (DC)146 Ω/km
-
Loop resistance292 Ω/km
-
Resistance unbalance5%
-
Insulation resistance10 MΩ
-
Contact resistance30 mΩ
-
Test voltage1000 V DC (1 min, core/core and core/screen)
-
StandardsIEC 60603-7-3, TIA/EIA 568B
