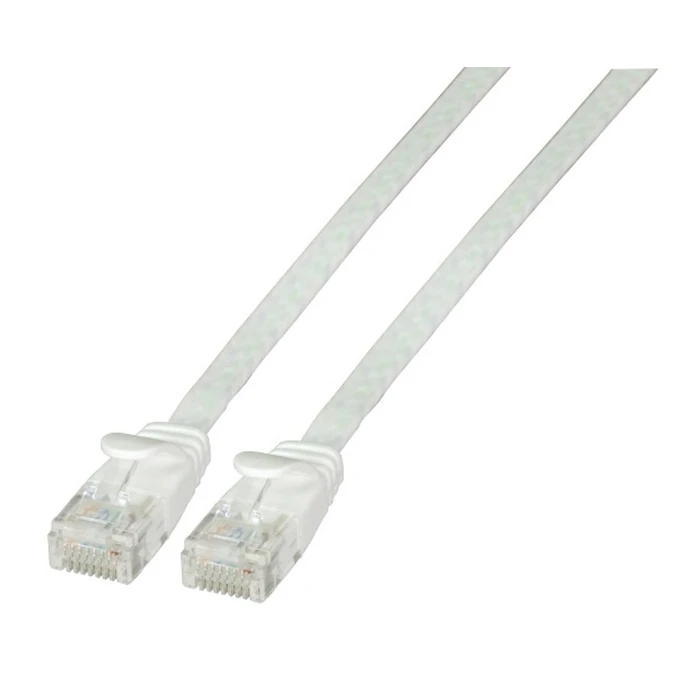

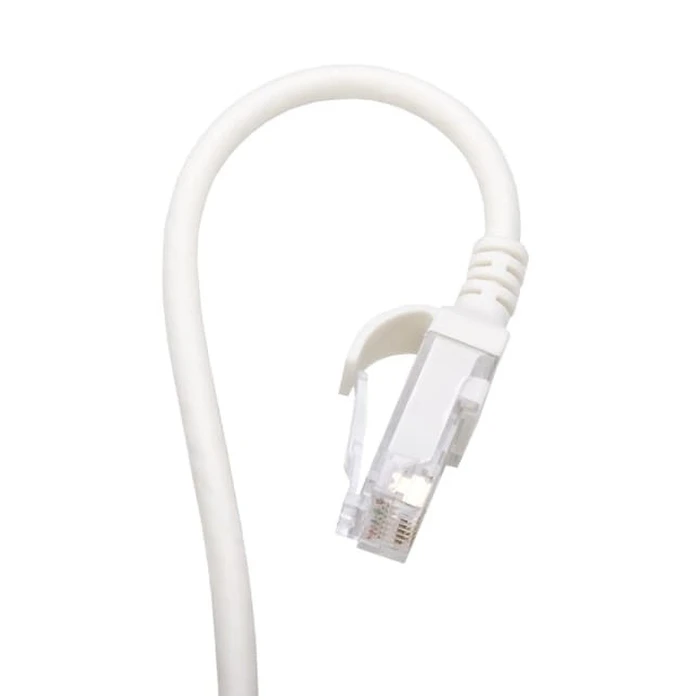

Καλώδιο Δικτύου EFB RJ45 flat U/UTP, Cat.6A, PVC, 3m, White
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)
The Kαλώδιο Δικτύου EFB RJ45 flat U/UTP, Cat.6A, PVC, 3m, White is designed specifically for network applications. This cable offers a variety of features:
- Cable Type: Flat RJ45 patch cable, unshielded twisted pair (U/UTP).
- Category: Cat.6A compliant with TIA standards, capable of supporting 10Gbit Ethernet transmission.
- Connector Type: RJ45 with gold-plated contacts for enhanced conductivity.
With a length of 3 meters, this cable has been engineered for optimal performance:
- Wire Gauge: 4 pairs of AWG30 / 7 strands conductors.
- Electrical Characteristics: Characteristic impedance of 100 ± 15 Ω and a transmission bandwidth of 500 MHz.
- Mechanical Features: Minimum bending radius of 10 mm and durability of up to 2000 mating cycles.
Its flat design makes it particularly suitable for installation in confined spaces, ensuring flexibility while maintaining the required networking standards.
-
Cable TypeFlat RJ45 patch cable, unshielded twisted pair (U/UTP)
-
CategoryCat.6A
-
Cable Length3.0 meters
-
ColorWhite
-
Connector TypeRJ45, gold-plated contacts
-
Wire Gauge4 pairs of AWG30 / 7 strands
-
Cable Diameter6.0 mm x 1.6 mm
-
Sheath MaterialPVC
-
Pin Assignment1:1 wiring TIA/EIA 568B
-
Characteristic Impedance100 ± 15 Ω
-
Conductor DC Resistance376 Ω/km
-
Transmission Bandwidth500 MHz
-
Insulation Resistance100 MΩ
-
Nominal Velocity of Propagation76%
-
Bending Radiusminimum 10 mm
-
Mating Cyclesup to 2000 times
-
Locking MechanismYes
-
Temperature Range-20°C to +55°C
-
Standards ComplianceIEC 60603-7-51
Ratings
Description
The Kαλώδιο Δικτύου EFB RJ45 flat U/UTP, Cat.6A, PVC, 3m, White is designed specifically for network applications. This cable offers a variety of features:
- Cable Type: Flat RJ45 patch cable, unshielded twisted pair (U/UTP).
- Category: Cat.6A compliant with TIA standards, capable of supporting 10Gbit Ethernet transmission.
- Connector Type: RJ45 with gold-plated contacts for enhanced conductivity.
With a length of 3 meters, this cable has been engineered for optimal performance:
- Wire Gauge: 4 pairs of AWG30 / 7 strands conductors.
- Electrical Characteristics: Characteristic impedance of 100 ± 15 Ω and a transmission bandwidth of 500 MHz.
- Mechanical Features: Minimum bending radius of 10 mm and durability of up to 2000 mating cycles.
Its flat design makes it particularly suitable for installation in confined spaces, ensuring flexibility while maintaining the required networking standards.
Technical Specifications
-
Cable TypeFlat RJ45 patch cable, unshielded twisted pair (U/UTP)
-
CategoryCat.6A
-
Cable Length3.0 meters
-
ColorWhite
-
Connector TypeRJ45, gold-plated contacts
-
Wire Gauge4 pairs of AWG30 / 7 strands
-
Cable Diameter6.0 mm x 1.6 mm
-
Sheath MaterialPVC
-
Pin Assignment1:1 wiring TIA/EIA 568B
-
Characteristic Impedance100 ± 15 Ω
-
Conductor DC Resistance376 Ω/km
-
Transmission Bandwidth500 MHz
-
Insulation Resistance100 MΩ
-
Nominal Velocity of Propagation76%
-
Bending Radiusminimum 10 mm
-
Mating Cyclesup to 2000 times
-
Locking MechanismYes
-
Temperature Range-20°C to +55°C
-
Standards ComplianceIEC 60603-7-51
