Καλώδιο Δικτύου EFB RJ45 flat U/FTP, Cat.6A, PVC, 5m, Green
Need Help? Fill in your details so we can call you immediately!
Buy now, pay later με tbi bank
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
σε όλη την Ελλάδα
Related Products
Καλώδιο Techly ICOC U3C-RJ45-010 networking Silver, Black 1 m Cat6 F/UTP (FTP)
Καλώδιο Dahua Technology PFM920I-5EUN networking White 305 m Cat5e U/UTP (UTP)
Καλώδιο Δικτύου Lanberg PCF6-20CC-0025-G Green 0.25m Cat6 U/UTP (UTP)

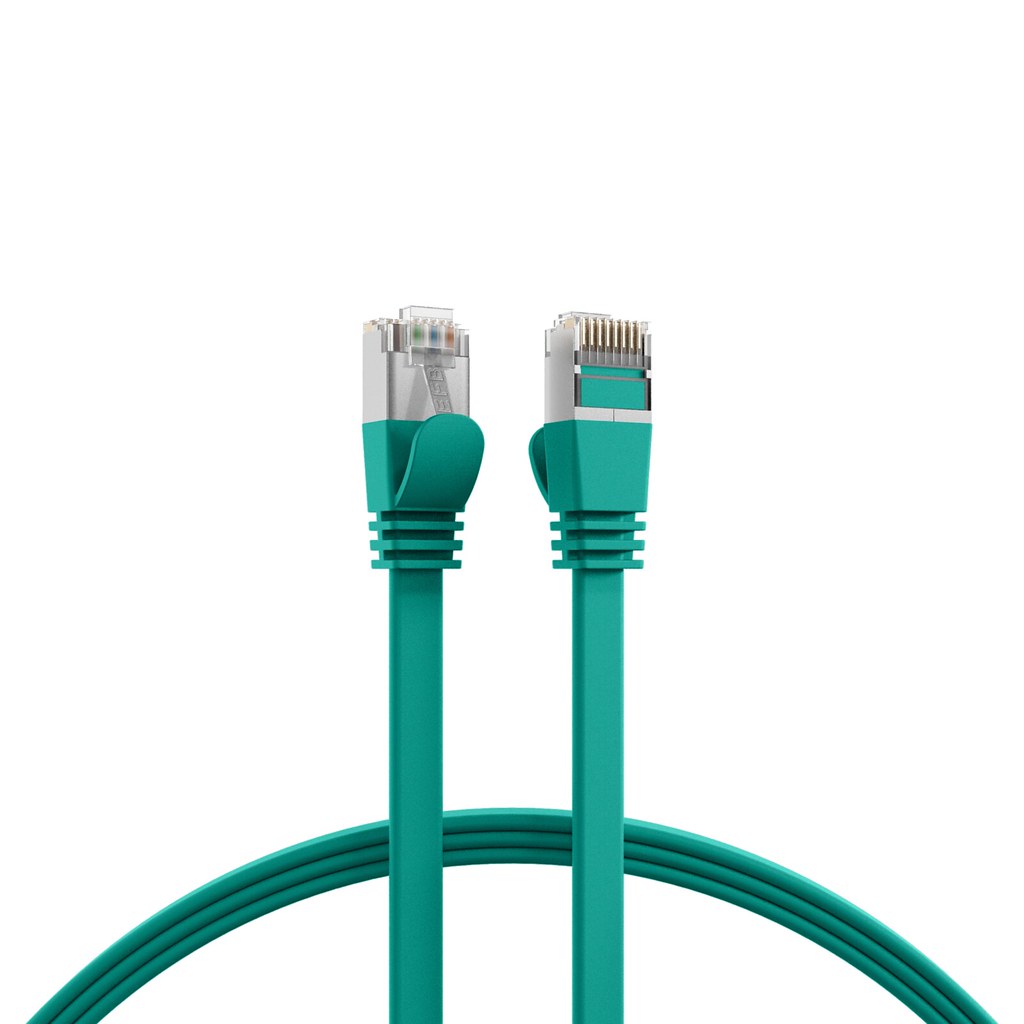

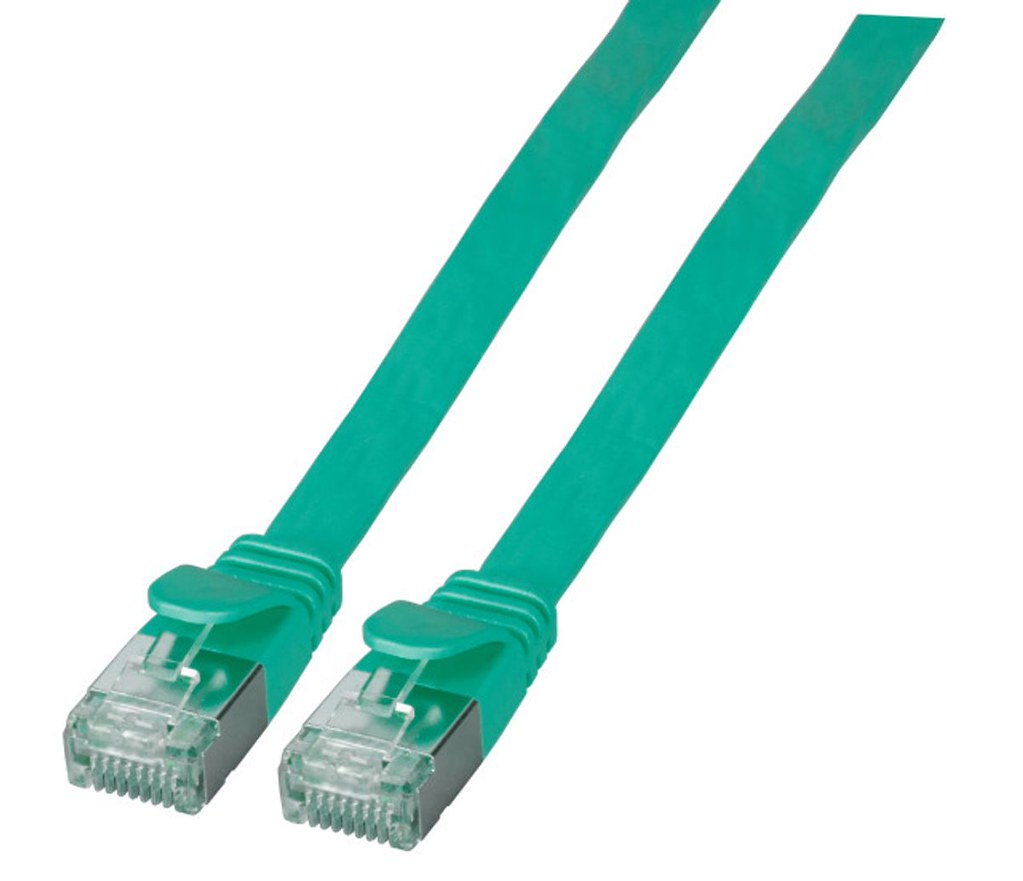

The EFB RJ45 Flat Patch Cable U/FTP, Cat.6A, PVC, 5m, Green is designed for high-performance network applications. With its flat construction, it seamlessly fits in tight spaces, making it perfect for installation behind baseboards and under carpets.
Key Features:
- High-performance Cat.6A cable
- Flat cable design (7.0 x 2.2 mm)
- Excellent shielding against EMI
- Gold-plated RJ45 connectors
It is compliant with TIA/EIA 568B standards and supports Power over Ethernet, ensuring your devices are powered and connected efficiently. The molded anti-kink sleeve enhances its durability, making this cable a reliable choice for any network.
Technical Specifications:
- Bandwidth: Up to 500 MHz
- Speed: Supports 10 Gigabit Ethernet
- Temperature Range: -20°C to 55°C
-
Cable CategoryCat.6A (TIA/EIA 568B)
-
Cable TypeU/FTP (Unshielded Foiled Twisted Pairs)
-
Outer Diameter7.0 x 2.2 mm
-
Jacket MaterialPVC (Polyvinyl Chloride)
-
Conductor MaterialCopper (AWG 30/7)
-
ShieldingPair-shielded (U/FTP)
-
Connector TypeRJ45 8(8), straight to straight
-
Pin Assignment1:1 (TIA/EIA 568B)
-
Locking LeverYes
-
Anti-kink SleeveMolded, green
-
Contact MaterialGold-plated
-
Speed10 Gigabit Ethernet
-
Power over EthernetPoE (IEEE 802.3af), PoE+ (IEEE 802.3at), 4PPoE (IEEE 802.3bt)
-
Temperature Range-20°C to 55°C
-
Mating Cycles≥750
-
Bending Radius>20 mm
-
Impedance100 ±15 Ω
-
Conductor Resistance376 Ω/km
-
Loop Resistance752 Ω/km
-
Resistance Unbalance<4%
-
Insulation Resistance100 MΩ
-
Test Voltage1000 V DC (core/core and core/screen)
-
NVP Value76%
-
StandardsTIA/EIA 568B, IEC 60603-7-51
Ratings
Description
The EFB RJ45 Flat Patch Cable U/FTP, Cat.6A, PVC, 5m, Green is designed for high-performance network applications. With its flat construction, it seamlessly fits in tight spaces, making it perfect for installation behind baseboards and under carpets.
Key Features:
- High-performance Cat.6A cable
- Flat cable design (7.0 x 2.2 mm)
- Excellent shielding against EMI
- Gold-plated RJ45 connectors
It is compliant with TIA/EIA 568B standards and supports Power over Ethernet, ensuring your devices are powered and connected efficiently. The molded anti-kink sleeve enhances its durability, making this cable a reliable choice for any network.
Technical Specifications:
- Bandwidth: Up to 500 MHz
- Speed: Supports 10 Gigabit Ethernet
- Temperature Range: -20°C to 55°C
Technical Specifications
-
Cable CategoryCat.6A (TIA/EIA 568B)
-
Cable TypeU/FTP (Unshielded Foiled Twisted Pairs)
-
Outer Diameter7.0 x 2.2 mm
-
Jacket MaterialPVC (Polyvinyl Chloride)
-
Conductor MaterialCopper (AWG 30/7)
-
ShieldingPair-shielded (U/FTP)
-
Connector TypeRJ45 8(8), straight to straight
-
Pin Assignment1:1 (TIA/EIA 568B)
-
Locking LeverYes
-
Anti-kink SleeveMolded, green
-
Contact MaterialGold-plated
-
Speed10 Gigabit Ethernet
-
Power over EthernetPoE (IEEE 802.3af), PoE+ (IEEE 802.3at), 4PPoE (IEEE 802.3bt)
-
Temperature Range-20°C to 55°C
-
Mating Cycles≥750
-
Bending Radius>20 mm
-
Impedance100 ±15 Ω
-
Conductor Resistance376 Ω/km
-
Loop Resistance752 Ω/km
-
Resistance Unbalance<4%
-
Insulation Resistance100 MΩ
-
Test Voltage1000 V DC (core/core and core/screen)
-
NVP Value76%
-
StandardsTIA/EIA 568B, IEC 60603-7-51
