Καλώδιο Δικτύου Cisco 100GBASE-CR4 PASSIVE COPPER

The Cisco QSFP-100G-CU5M= is a passive direct attach copper (DAC) twinax cable assembly designed for short-range, high-speed 100G Ethernet connectivity in data centers. This product features QSFP28 connectors on both ends, enabling point-to-point links up to 5 meters (16.4 feet). Key Features: ...

Καλώδιο Δικτύου Cisco 100GBASE-CR4 PASSIVE COPPER

Name: Καλώδιο Δικτύου Cisco 100GBASE-CR4 PASSIVE COPPER
Brand: Cisco
SKU: 1173620531
Price: 651.36 EUR
Availability: OutOfStock

Product Code: 1173620531

: Cisco

Available in 4 - 10 days

651,36 €

20,34€ / month

εως 36 δόσεις με πιστωτική κάρτα

Quantity:

Add

Need Help? Fill in your details so we can call you immediately!

Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:

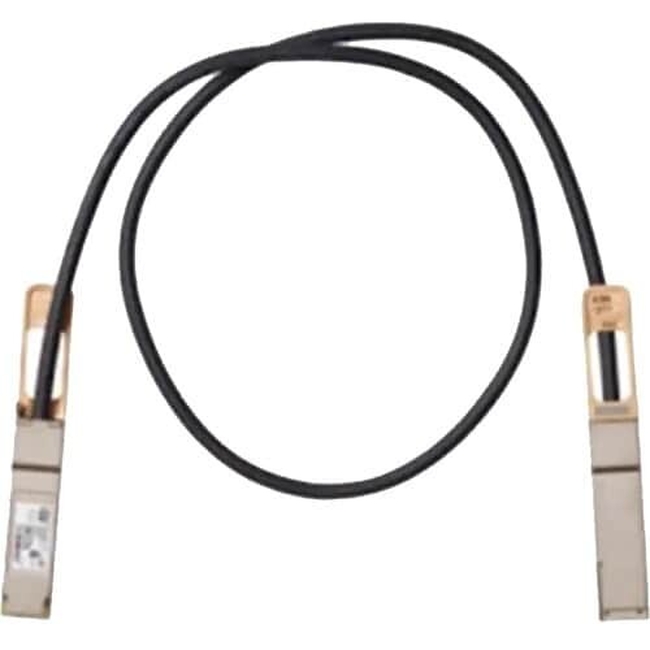

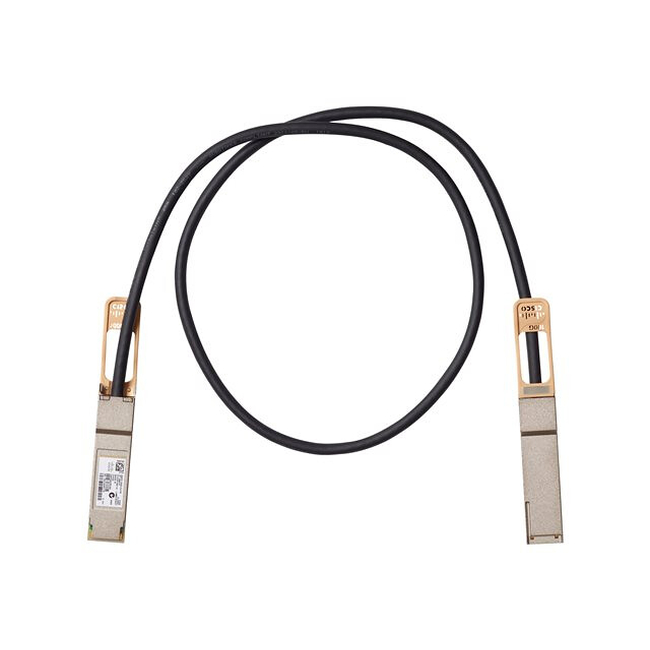

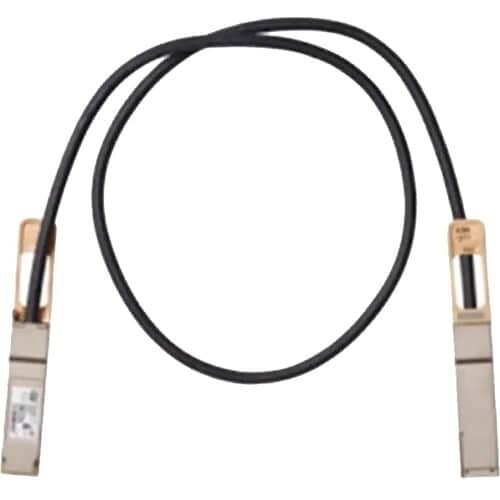

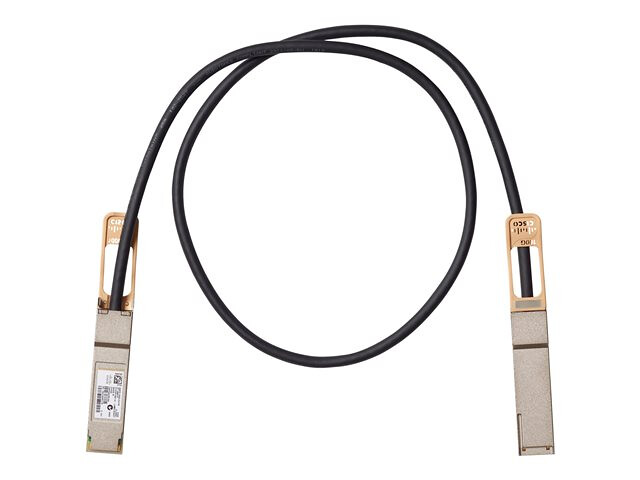

The Cisco QSFP-100G-CU5M= is a passive direct attach copper (DAC) twinax cable assembly designed for short-range, high-speed 100G Ethernet connectivity in data centers.

This product features QSFP28 connectors on both ends, enabling point-to-point links up to 5 meters (16.4 feet).

Key Features:

Cable Type: Passive Direct Attach Copper (PDAC) twinax cable assembly
Supported Data Rates: 100Gbps (103.125 Gbps Ethernet)
Maximum Distance: 5 meters
Power Consumption: 1.5W maximum per end
Temperature Range: 0° to 70°C
Mean Time Between Failures (MTBF): 1,000,000 hours

With a compact design, the Cisco QSFP-100G-CU5M= provides a reliable solution for fast networking, ensuring superior signal integrity and low latency. It's a cost-effective alternative to optical transceivers for rack-to-rack connections, and features hot-swappable QSFP28 ends that are compatible with Cisco 100G ports.

Cable Type

Passive Direct Attach Copper (PDAC)
Form Factor/Connector Type

QSFP28 to QSFP28
Supported Data Rates

100Gbps (103.125 Gbps Ethernet)
Maximum Distance

5 meters
Wire Gauge (AWG)

AWG26
Power Consumption

1.5W maximum per end
Digital Diagnostic Monitoring

Supported
Temperature Range

0° to 70°C
Mean Time Between Failures (MTBF)

1,000,000 hours
Compliance

IEEE 802.3ba, QSFP28 MSA, SFF-8436, SFF-8665, CE, RoHS, QDR InfiniBand
Pull Tab Color

Gray
Minimum Bend Radius

33 mm

Ratings

How do you rate this product?

0/5

Description

The Cisco QSFP-100G-CU5M= is a passive direct attach copper (DAC) twinax cable assembly designed for short-range, high-speed 100G Ethernet connectivity in data centers.

This product features QSFP28 connectors on both ends, enabling point-to-point links up to 5 meters (16.4 feet).

Key Features:

Cable Type: Passive Direct Attach Copper (PDAC) twinax cable assembly
Supported Data Rates: 100Gbps (103.125 Gbps Ethernet)
Maximum Distance: 5 meters
Power Consumption: 1.5W maximum per end
Temperature Range: 0° to 70°C
Mean Time Between Failures (MTBF): 1,000,000 hours

Technical Specifications

Cable Type

Passive Direct Attach Copper (PDAC)
Form Factor/Connector Type

QSFP28 to QSFP28
Supported Data Rates

100Gbps (103.125 Gbps Ethernet)
Maximum Distance

5 meters
Wire Gauge (AWG)

AWG26
Power Consumption

1.5W maximum per end
Digital Diagnostic Monitoring

Supported
Temperature Range

0° to 70°C
Mean Time Between Failures (MTBF)

1,000,000 hours
Compliance

IEEE 802.3ba, QSFP28 MSA, SFF-8436, SFF-8665, CE, RoHS, QDR InfiniBand
Pull Tab Color

Gray
Minimum Bend Radius

33 mm
