Jung LS5074TSM is a flush-mounted KNX push-button sensor module (Standard, 4-gang) with integrated bus coupler for use in KNX smart home installations. It supports switching, dimming, blind/shutter control, value setting and scene recall. Each button pair has a red status LED; a configurable mode...
More

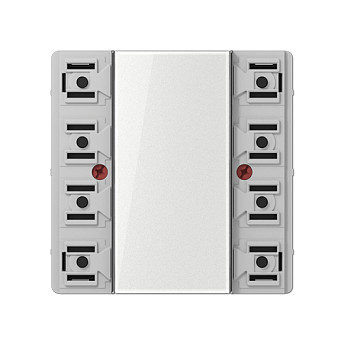

Jung LS5074TSM KNX Push-Button Sensor Module Standard 4-gang
Product Code: 1173701330
Available in 4 - 6 days
270,09 €
or
8,43€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 811 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Jung LS5074TSM is a flush-mounted KNX push-button sensor module (Standard, 4-gang) with integrated bus coupler for use in KNX smart home installations. It supports switching, dimming, blind/shutter control, value setting and scene recall. Each button pair has a red status LED; a configurable mode LED (red, green, blue) can be used as orientation lighting or programming indicator. The unit includes an integrated labeling field and is supplied for completion with a 4-gang button set and a transparent temporary cover for on-site operation. Protection rating IP20. Mounting: flush installation in a device box conforming to DIN 49073. KNX medium: TP 256.
-
BrandJUNG
-
Model / MPNLS5074TSM
-
EAN / Barcode4011377106956
-
Product typeKNX Tastsensor-Modul / 4‑fach push-button sensor module
-
MountingFlush-mounted (Unterputz), device box DIN 49073
-
Bus systemKNX (TP 256)
-
Integrated bus couplerYes
-
Number of buttons / actuation points4 (4‑fach)
-
Binary inputs4
-
LEDsOne red status LED per button pair; one configurable mode LED (red/green/blue)
-
FunctionsSwitching, dimming, blinds/shutter control, value setting, scene recall
-
Labeling fieldIntegrated
-
Included accessoriesTransparent cover / temporary button set for on-site operation
-
MaterialPlastic
-
Protection ratingIP20
-
ETS product familyTaster (push-button)
-
CompatibilityCompatible with LS / F50 cover/button sets (4-gang key sets)
-
CertificationCradle to Cradle (stated on product page)
-
Intended useControl lights, dimmers, blinds/shutters, scenes in KNX smart home installations
Ratings
Description
Jung LS5074TSM is a flush-mounted KNX push-button sensor module (Standard, 4-gang) with integrated bus coupler for use in KNX smart home installations. It supports switching, dimming, blind/shutter control, value setting and scene recall. Each button pair has a red status LED; a configurable mode LED (red, green, blue) can be used as orientation lighting or programming indicator. The unit includes an integrated labeling field and is supplied for completion with a 4-gang button set and a transparent temporary cover for on-site operation. Protection rating IP20. Mounting: flush installation in a device box conforming to DIN 49073. KNX medium: TP 256.
Technical Specifications
-
BrandJUNG
-
Model / MPNLS5074TSM
-
EAN / Barcode4011377106956
-
Product typeKNX Tastsensor-Modul / 4‑fach push-button sensor module
-
MountingFlush-mounted (Unterputz), device box DIN 49073
-
Bus systemKNX (TP 256)
-
Integrated bus couplerYes
-
Number of buttons / actuation points4 (4‑fach)
-
Binary inputs4
-
LEDsOne red status LED per button pair; one configurable mode LED (red/green/blue)
-
FunctionsSwitching, dimming, blinds/shutter control, value setting, scene recall
-
Labeling fieldIntegrated
-
Included accessoriesTransparent cover / temporary button set for on-site operation
-
MaterialPlastic
-
Protection ratingIP20
-
ETS product familyTaster (push-button)
-
CompatibilityCompatible with LS / F50 cover/button sets (4-gang key sets)
-
CertificationCradle to Cradle (stated on product page)
-
Intended useControl lights, dimmers, blinds/shutters, scenes in KNX smart home installations
