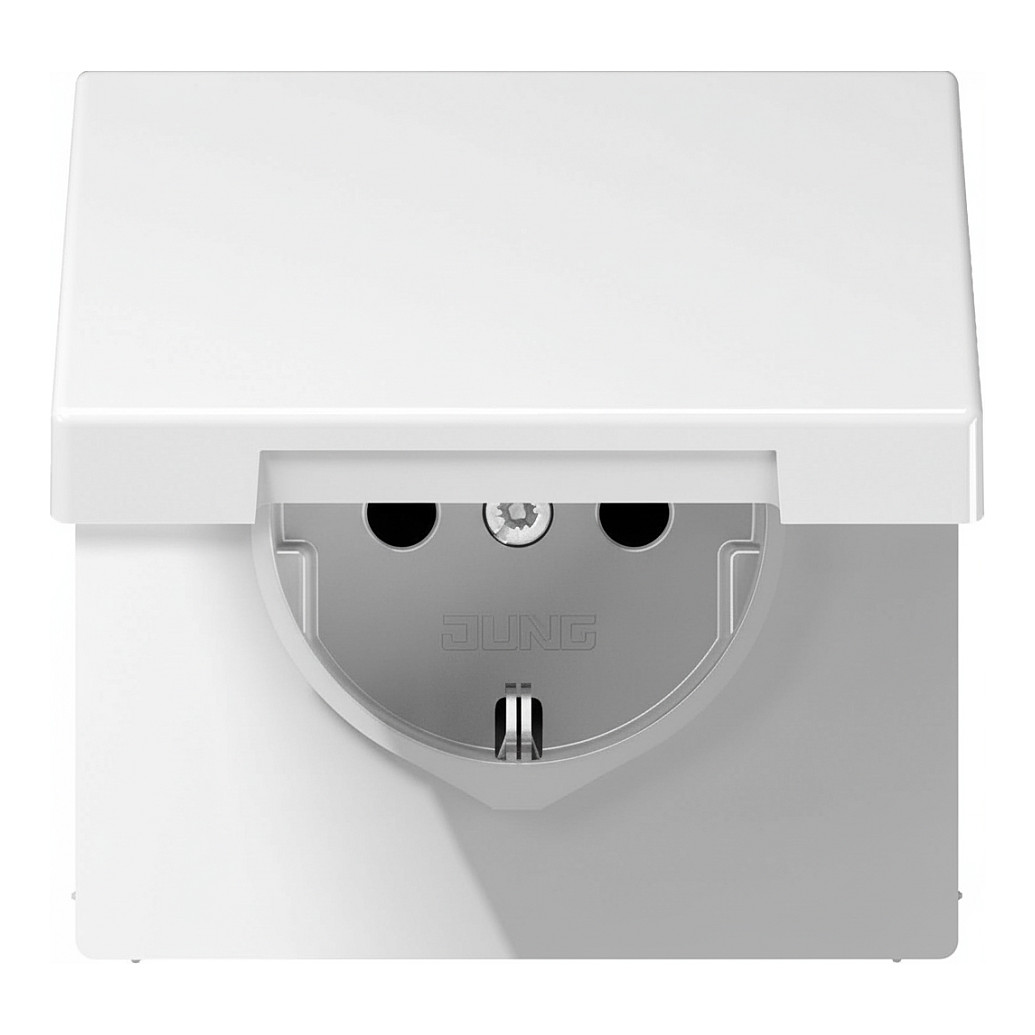

Jung LS1520KLWW SCHUKO socket outlet with hinged lid (Klappdeckel), white (alpine white)

Description

Technical Specifications

• Brand
  JUNG
• Model / MPN
  LS1520KLWW (LS 1520 KL WW)
• EAN / GTIN
  4011377064027
• Type
  SCHUKO® socket outlet (CEE 7/3, Type F)
• Series
  LS
• Colour / RAL-equivalent
  White (Alpinweiß), RAL 9016
• Material
  Duroplastic (plastic)
• Surface finish
  Glossy (untreated)
• Cover
  Hinged lid (Klappdeckel) with spring return
• Terminal type
  Screwless terminals (Steckklemme) for rigid and flexible conductors
• Conductor cross-section
  Up to 2.5 mm²
• Rated current
  16 A
• Rated voltage
  250 V
• Frequency
  50 Hz (sources vary 50–60 Hz)
• Mounting type
  Flush mount (Unterputz)
• Fixing method
  Claw / screw fixing
• Protection rating
  IP44 (when used with matching sealing gasket/frame)
• Number of phases
  1
• Active contacts
  2 round contacts + protective earth contact
• Schuko standard
  CEE 7/3 (Type F)
• Device front dimensions
  70 × 70 mm
• Device depth
  ~29.5 mm
• Minimum device box depth
  required ~38 mm (reported by retailers)
• Through-wiring
  Yes (through-wiring count: 1)
• Halogen-free
  Yes
• Weight (product)
  ~101 g
• Packaging weight (estimate)
  ~150 g
• Lockable
  No
• Overvoltage / RCD protection
  No
• Antibacterial treatment
  No
• Transparency
  No
