KNX Touch Sensor Module Universal 3-gang (F50, LS series) by JUNG (LS 5293 1ST / LS52931ST). Device for KNX TP256 building automation with integrated bus coupler and KNX Data Secure compatibility. Controls lighting (switch/dim), blinds/shutters, setpoint/value inputs, scene store/recall,...
More

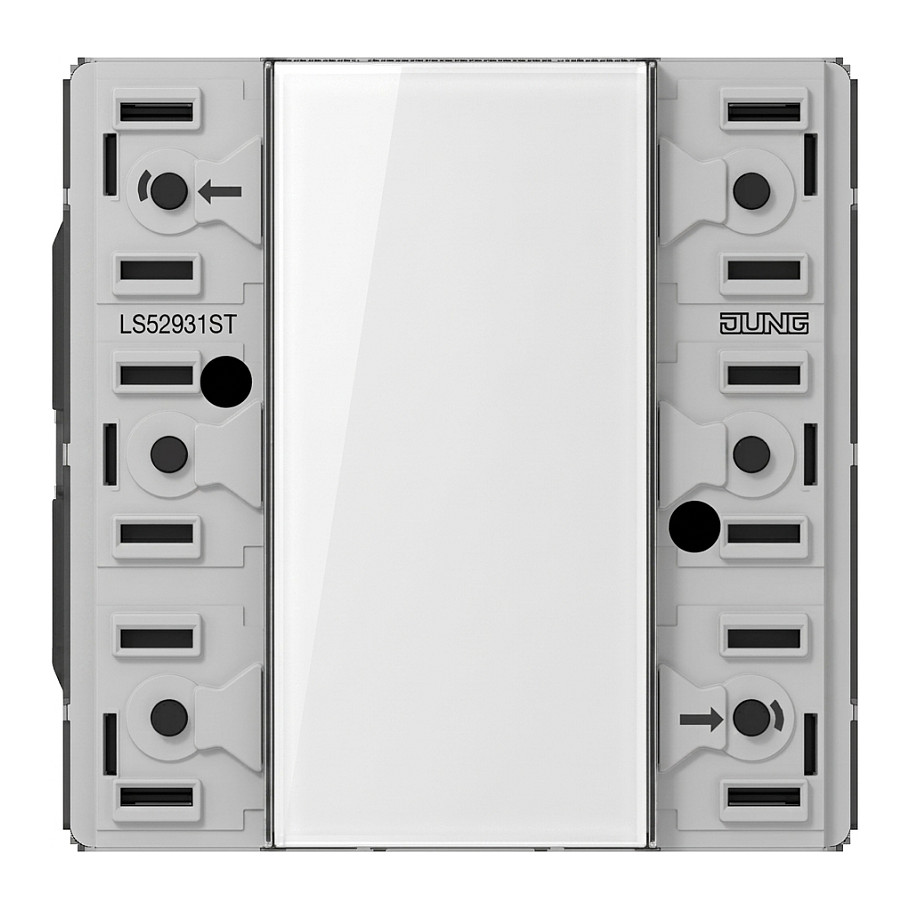

Jung LS 52931 ST KNX Touch Sensor Module Universal, 3-gang, F50, LS series
Product Code: 1173701359
Available in 4 - 6 days
273,69 €
or
8,55€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 822 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
KNX Touch Sensor Module Universal 3-gang (F50, LS series) by JUNG (LS 5293 1ST / LS52931ST). Device for KNX TP256 building automation with integrated bus coupler and KNX Data Secure compatibility. Controls lighting (switch/dim), blinds/shutters, setpoint/value inputs, scene store/recall, alarm/acknowledge, and room temperature measurement (-5 to +45 °C sensing range). Configurable button behavior (press or rocker functions), per-button LEDs (RGB), separate operating LED and illuminated labeling field. Mounts into standard DIN 49073 device box. KNX nominal voltage DC 21–32 V SELV; current consumption typically 5–8 mA (5–11 mA with expansion module). S-Mode commissioning, connection terminal for KNX bus. Includes transparent cover for construction-phase operation and supports 1–4 gang expansion module input.
-
BrandAlbrecht Jung GmbH & Co. KG
-
Model / MPNLS 5293 1ST (LS52931ST)
-
SKU21181799
-
EAN4011377321335
-
Product TypeKNX Tastsensor / Touch sensor module, universal, 3-gang
-
Series / Design LineSerie LS, F50
-
KNX MediumTP 256
-
KNX SecurityKNX Data Secure compatible
-
Bus InterfaceIntegrated bus coupler
-
FunctionsSwitching, dimming, blind/shutter control, value/setpoint input, scene recall/store, alarm
-
Button Configuration1 or 2 functions per button; tastenfunktion or wippenfunktion (press or rocker)
-
LEDsOne status LED per button + separate operating LED; RGB (red/green/blue) selectable
-
Label FieldLarge illuminated labeling field (F50)
-
Temperature SensingRoom temperature measurement; sensing range -5 to +45 °C; operating ambient +5 to +45 °C
-
Power Supply (KNX)DC 21–32 V SELV
-
Current ConsumptionTypical 5–8 mA (5–11 mA with expansion module)
-
ConnectionConnection terminal; KNX cable EIB-Y (St)Y 2x2x0.8
-
Protection ClassIII
-
MountingFlush-mounted in device box per DIN 49073
-
Commissioning ModeS-Mode
-
Firmware/UpdatesUpdateable via ETS Service App
-
AccessoriesTransparent cover (LS 50 NA), 1–4-gang expansion module support
-
Operating / Storage TempOperating +5 to +45 °C; storage/transport -25 to +70 °C
-
Dimensions (device)(not specified in sources)
-
Package DimensionsApprox. 12 x 10 x 4 cm (estimate)
-
Package WeightApprox. 200 g (estimate)
-
Country of Manufacture(not specified)
Ratings
Description
KNX Touch Sensor Module Universal 3-gang (F50, LS series) by JUNG (LS 5293 1ST / LS52931ST). Device for KNX TP256 building automation with integrated bus coupler and KNX Data Secure compatibility. Controls lighting (switch/dim), blinds/shutters, setpoint/value inputs, scene store/recall, alarm/acknowledge, and room temperature measurement (-5 to +45 °C sensing range). Configurable button behavior (press or rocker functions), per-button LEDs (RGB), separate operating LED and illuminated labeling field. Mounts into standard DIN 49073 device box. KNX nominal voltage DC 21–32 V SELV; current consumption typically 5–8 mA (5–11 mA with expansion module). S-Mode commissioning, connection terminal for KNX bus. Includes transparent cover for construction-phase operation and supports 1–4 gang expansion module input.
Technical Specifications
-
BrandAlbrecht Jung GmbH & Co. KG
-
Model / MPNLS 5293 1ST (LS52931ST)
-
SKU21181799
-
EAN4011377321335
-
Product TypeKNX Tastsensor / Touch sensor module, universal, 3-gang
-
Series / Design LineSerie LS, F50
-
KNX MediumTP 256
-
KNX SecurityKNX Data Secure compatible
-
Bus InterfaceIntegrated bus coupler
-
FunctionsSwitching, dimming, blind/shutter control, value/setpoint input, scene recall/store, alarm
-
Button Configuration1 or 2 functions per button; tastenfunktion or wippenfunktion (press or rocker)
-
LEDsOne status LED per button + separate operating LED; RGB (red/green/blue) selectable
-
Label FieldLarge illuminated labeling field (F50)
-
Temperature SensingRoom temperature measurement; sensing range -5 to +45 °C; operating ambient +5 to +45 °C
-
Power Supply (KNX)DC 21–32 V SELV
-
Current ConsumptionTypical 5–8 mA (5–11 mA with expansion module)
-
ConnectionConnection terminal; KNX cable EIB-Y (St)Y 2x2x0.8
-
Protection ClassIII
-
MountingFlush-mounted in device box per DIN 49073
-
Commissioning ModeS-Mode
-
Firmware/UpdatesUpdateable via ETS Service App
-
AccessoriesTransparent cover (LS 50 NA), 1–4-gang expansion module support
-
Operating / Storage TempOperating +5 to +45 °C; storage/transport -25 to +70 °C
-
Dimensions (device)(not specified in sources)
-
Package DimensionsApprox. 12 x 10 x 4 cm (estimate)
-
Package WeightApprox. 200 g (estimate)
-
Country of Manufacture(not specified)
