The Jung AS1700WW Steuertaste Standard is a 1-gang control button / push rocker used for manual control of jalousies, roller shutters, awnings and lighting. It is part of JUNG's AS series (LB-Management) and supplied as a glossy Duroplast cover in alpin white (RAL 9016). Cover dimensions: 55 x 55...
More

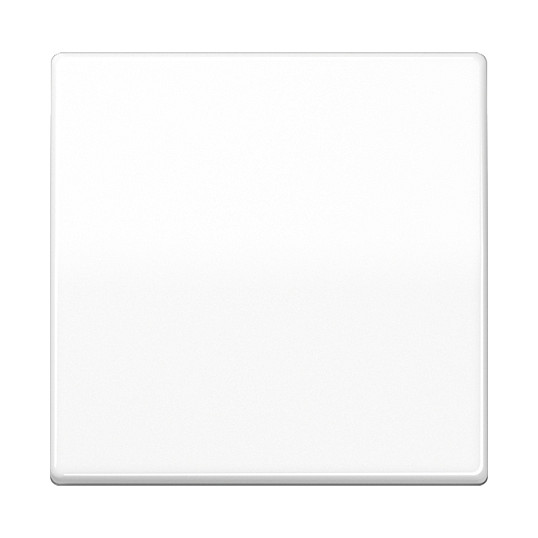

Jung AS1700WW Steuertaste Standard - 1-gang control button / push rocker (alpin white)
Product Code: 1173701317
Available in 4 - 6 days
40,33 €
or
1,26€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 121 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Jung AS1700WW Steuertaste Standard is a 1-gang control button / push rocker used for manual control of jalousies, roller shutters, awnings and lighting. It is part of JUNG's AS series (LB-Management) and supplied as a glossy Duroplast cover in alpin white (RAL 9016). Cover dimensions: 55 x 55 mm; recommended flush-mounted installation with a minimum back box depth of 40 mm. Electrical ratings: 10 A, 250 V, 50 Hz, switching rating 10 AX for fluorescent lamps. Compatible with JUNG switch/dimmer/shutter inserts (see compatible insert list). Features include halogen-free material, replaceable orientation LED option, light-value memory when used with suitable inserts, and side-station/motion-detector capability depending on insert used.
-
BrandJung
-
Model / MPNAS1700WW (AS 1700 WW / ETIAS1700WW)
-
SKU21179038
-
EAN / Barcode4011377152540
-
Product type1-gang control button / push rocker
-
Series / DesignAS series / AS500 (LB-Management Taster 1fach)
-
ColorAlpinweiß (white) - RAL 9016
-
MaterialDuroplast (glossy)
-
Cover dimensions55 x 55 mm
-
Device dimensions (W x H)71 x 71 mm (device listing)
-
Mounting typeFlush-mounted (Unterputz)
-
Minimum back box depthrequired ≥ 40 mm
-
Number of buttons1
-
Number of actuation points3
-
Operating modeRocker / button
-
Rated current10 A
-
Rated voltage250 V
-
Frequency50 Hz
-
Switching rating (fluorescent lamps)10 AX
-
Protection ratingIP20
-
Impact resistanceIK00
-
Wire cross-section supported0.5 mm²
-
Connection typePlug-in terminal
-
FasteningClaw / screw fixing
-
Power consumption4.0 W
-
Halogen-freeYes
-
LED orientation lightOptional, replaceable LED
-
Light value memoryYes (with compatible dimmer / DALI devices)
-
Compatible inserts1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1720 NE, 1723 NE, 1708 IE, 1730 JE, 1731 JE
-
Typical applicationsJalousies, roller shutters, awnings, lighting control
-
Minimum device box depth40 mm
-
Number of units per package1
Ratings
Description
The Jung AS1700WW Steuertaste Standard is a 1-gang control button / push rocker used for manual control of jalousies, roller shutters, awnings and lighting. It is part of JUNG's AS series (LB-Management) and supplied as a glossy Duroplast cover in alpin white (RAL 9016). Cover dimensions: 55 x 55 mm; recommended flush-mounted installation with a minimum back box depth of 40 mm. Electrical ratings: 10 A, 250 V, 50 Hz, switching rating 10 AX for fluorescent lamps. Compatible with JUNG switch/dimmer/shutter inserts (see compatible insert list). Features include halogen-free material, replaceable orientation LED option, light-value memory when used with suitable inserts, and side-station/motion-detector capability depending on insert used.
Technical Specifications
-
BrandJung
-
Model / MPNAS1700WW (AS 1700 WW / ETIAS1700WW)
-
SKU21179038
-
EAN / Barcode4011377152540
-
Product type1-gang control button / push rocker
-
Series / DesignAS series / AS500 (LB-Management Taster 1fach)
-
ColorAlpinweiß (white) - RAL 9016
-
MaterialDuroplast (glossy)
-
Cover dimensions55 x 55 mm
-
Device dimensions (W x H)71 x 71 mm (device listing)
-
Mounting typeFlush-mounted (Unterputz)
-
Minimum back box depthrequired ≥ 40 mm
-
Number of buttons1
-
Number of actuation points3
-
Operating modeRocker / button
-
Rated current10 A
-
Rated voltage250 V
-
Frequency50 Hz
-
Switching rating (fluorescent lamps)10 AX
-
Protection ratingIP20
-
Impact resistanceIK00
-
Wire cross-section supported0.5 mm²
-
Connection typePlug-in terminal
-
FasteningClaw / screw fixing
-
Power consumption4.0 W
-
Halogen-freeYes
-
LED orientation lightOptional, replaceable LED
-
Light value memoryYes (with compatible dimmer / DALI devices)
-
Compatible inserts1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1720 NE, 1723 NE, 1708 IE, 1730 JE, 1731 JE
-
Typical applicationsJalousies, roller shutters, awnings, lighting control
-
Minimum device box depth40 mm
-
Number of units per package1
