The Jung A17182WW LB-Management motion sensor (Bewegungsmelder) is an indoor occupancy detector for automatic lighting control based on heat motion and ambient brightness. Mounting height 1.10 m, 180° detection angle, brightness setting approx. 5–1,000 lx (plus day mode), adjustable run-on time...
More

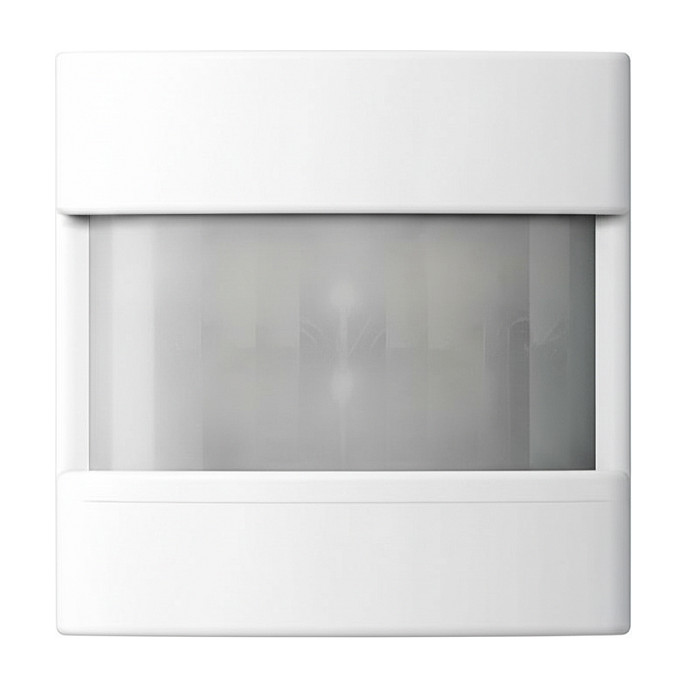

Jung A17182WW LB-Management Motion Sensor (Bewegungsmelder) 1.10 m, Alpine White
Product Code: 1173701356
Available in 4 - 6 days
90,81 €
or
2,84€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 273 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Jung A17182WW LB-Management motion sensor (Bewegungsmelder) is an indoor occupancy detector for automatic lighting control based on heat motion and ambient brightness. Mounting height 1.10 m, 180° detection angle, brightness setting approx. 5–1,000 lx (plus day mode), adjustable run-on time approx. 10 s to 30 min, minimum switch-on 10 s. Designed for flush-mounted system inserts; detection range can be extended with a 3‑wire extension unit. Colour: Alpine white; material: high-gloss, break-resistant thermoplastic; protection class IP20; ambient temperature −20 to +45 °C.
-
BrandJung (Albrecht Jung GmbH & Co. KG)
-
Model / MPNA17182WW
-
SKU21181772
-
EAN / Barcode4011377213098
-
Product TypeLB-Management Bewegungsmelder (motion sensor / Durchgangsmelder)
-
Installation / MountingFlush-mounted system insert / wall mounting
-
Mounting Height1.10 m
-
Detection Angle180°
-
Brightness Setting RangeApprox. 5 to 1,000 lx plus day mode
-
Run-on Time / Switch-off DelayApprox. 10 s to 30 min
-
Minimum Switch-on Duration10 s
-
Maximum Switch-on Duration30 min
-
Operating Voltage3 V (listed by some retailers)
-
Protection Class / IP RatingIP20
-
Ambient Temperature (Operating)−20 to +45 °C
-
Storage / Transport Temperature−25 to +70 °C
-
MaterialHigh-gloss, break-resistant thermoplastic
-
Color / FinishAlpinweiß (Alpine white)
-
Face / Visible DimensionsApprox. 55 × 55 mm (faceplate)
-
Approx. Overall DimensionsApprox. 85 × 85 × 25 mm (some listings)
-
Fixed SensitivityYes (fixed sensitivity listed)
-
Detection Area LimitationClip-on blind for limiting detection area
-
CompatibilityCompatible with Jung system inserts (e.g. 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE)
-
Extension UnitsWorks with 2-wire or 3-wire extension units; detection range extendable with 3-wire extension unit
-
Dimming / Brightness BehaviorCan switch on at last brightness level or fixed switch-on brightness with dimming insert; switch-on brightness can be stored via extension unit
-
Design / SeriesAS/A series, Standard (TIME)
-
IP / Protection NotesIndoor use, IP20
-
Price Group / Catalog DataPrice group 04 (catalog)
-
Weight (product)Approx. 40 g (typical for device, retailer data not explicit)
Ratings
Description
The Jung A17182WW LB-Management motion sensor (Bewegungsmelder) is an indoor occupancy detector for automatic lighting control based on heat motion and ambient brightness. Mounting height 1.10 m, 180° detection angle, brightness setting approx. 5–1,000 lx (plus day mode), adjustable run-on time approx. 10 s to 30 min, minimum switch-on 10 s. Designed for flush-mounted system inserts; detection range can be extended with a 3‑wire extension unit. Colour: Alpine white; material: high-gloss, break-resistant thermoplastic; protection class IP20; ambient temperature −20 to +45 °C.
Technical Specifications
-
BrandJung (Albrecht Jung GmbH & Co. KG)
-
Model / MPNA17182WW
-
SKU21181772
-
EAN / Barcode4011377213098
-
Product TypeLB-Management Bewegungsmelder (motion sensor / Durchgangsmelder)
-
Installation / MountingFlush-mounted system insert / wall mounting
-
Mounting Height1.10 m
-
Detection Angle180°
-
Brightness Setting RangeApprox. 5 to 1,000 lx plus day mode
-
Run-on Time / Switch-off DelayApprox. 10 s to 30 min
-
Minimum Switch-on Duration10 s
-
Maximum Switch-on Duration30 min
-
Operating Voltage3 V (listed by some retailers)
-
Protection Class / IP RatingIP20
-
Ambient Temperature (Operating)−20 to +45 °C
-
Storage / Transport Temperature−25 to +70 °C
-
MaterialHigh-gloss, break-resistant thermoplastic
-
Color / FinishAlpinweiß (Alpine white)
-
Face / Visible DimensionsApprox. 55 × 55 mm (faceplate)
-
Approx. Overall DimensionsApprox. 85 × 85 × 25 mm (some listings)
-
Fixed SensitivityYes (fixed sensitivity listed)
-
Detection Area LimitationClip-on blind for limiting detection area
-
CompatibilityCompatible with Jung system inserts (e.g. 1701 SE, 1701 PSE, 1702 SE, 1704 ESE, 1710 DE, 1711 DE, 1713 DSTE, 1723 NE, 1708 IE)
-
Extension UnitsWorks with 2-wire or 3-wire extension units; detection range extendable with 3-wire extension unit
-
Dimming / Brightness BehaviorCan switch on at last brightness level or fixed switch-on brightness with dimming insert; switch-on brightness can be stored via extension unit
-
Design / SeriesAS/A series, Standard (TIME)
-
IP / Protection NotesIndoor use, IP20
-
Price Group / Catalog DataPrice group 04 (catalog)
-
Weight (product)Approx. 40 g (typical for device, retailer data not explicit)
