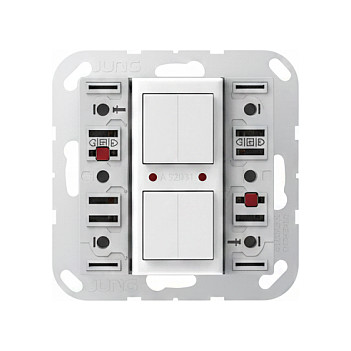

JUNG A 52931 ST KNX Tastsensor-Modul Universal, 3-gang, F50, AS/A series

Description

Technical Specifications

• Brand
  JUNG
• Model / MPN
  A 52931 ST (A52931ST)
• Product Type
  KNX Tastsensor-Modul Universal, 3fach (3-gang) F50, Serie AS/A
• SKU
  21181794
• EAN
  4011377321250
• Intended Use
  Switching, dimming, blind/shutter control, value transmission, scene recall
• Bus System
  KNX (TP 256)
• Integrated Bus Coupler
  Yes
• KNX Data Secure
  Supported (ETS 5.7.7 or ETS 6.3.0 and later)
• Updateable
  Yes, via ETS Service-App
• Number of Keys / Gang
  3-gang (3 operating positions)
• Number of Operating Points
  6
• Binary Inputs
  3
• Status LEDs
  RGB configurable per key (red/green/blue)
• Operating LED
  RGB configurable (orientation light, programming indicator)
• Illuminated Labelling Field
  Yes
• Room Temperature Sensor
  Integrated
• Auxiliary Input
  Yes (for room temperature controller)
• Extension Support
  Connection for Tastsensor extension module 1–4fach
• Lock Function
  Yes (lock individual or all buttons)
• Alarm Function
  Yes (optional acknowledgement by any key)
• Brightness Control
  Adjustable brightness for status LEDs, operating LED and labelling field
• Material
  Plastic
• Protection Rating
  IP20
• Mounting
  Flush-mounted in device box according to DIN 49073
• Minimum Device Box Depth
  25 mm
• Anti-theft / Removal Protection
  Yes
• Number of Functions per Key
  1 or 2 functions assignable per key
• Compatibility / Variants
  AS/A series (A 52931 ST), LS series variant (LS 5293 1ST) exists
• Packaging (approx.)
  Small retail box (dimensions approx. provided)
