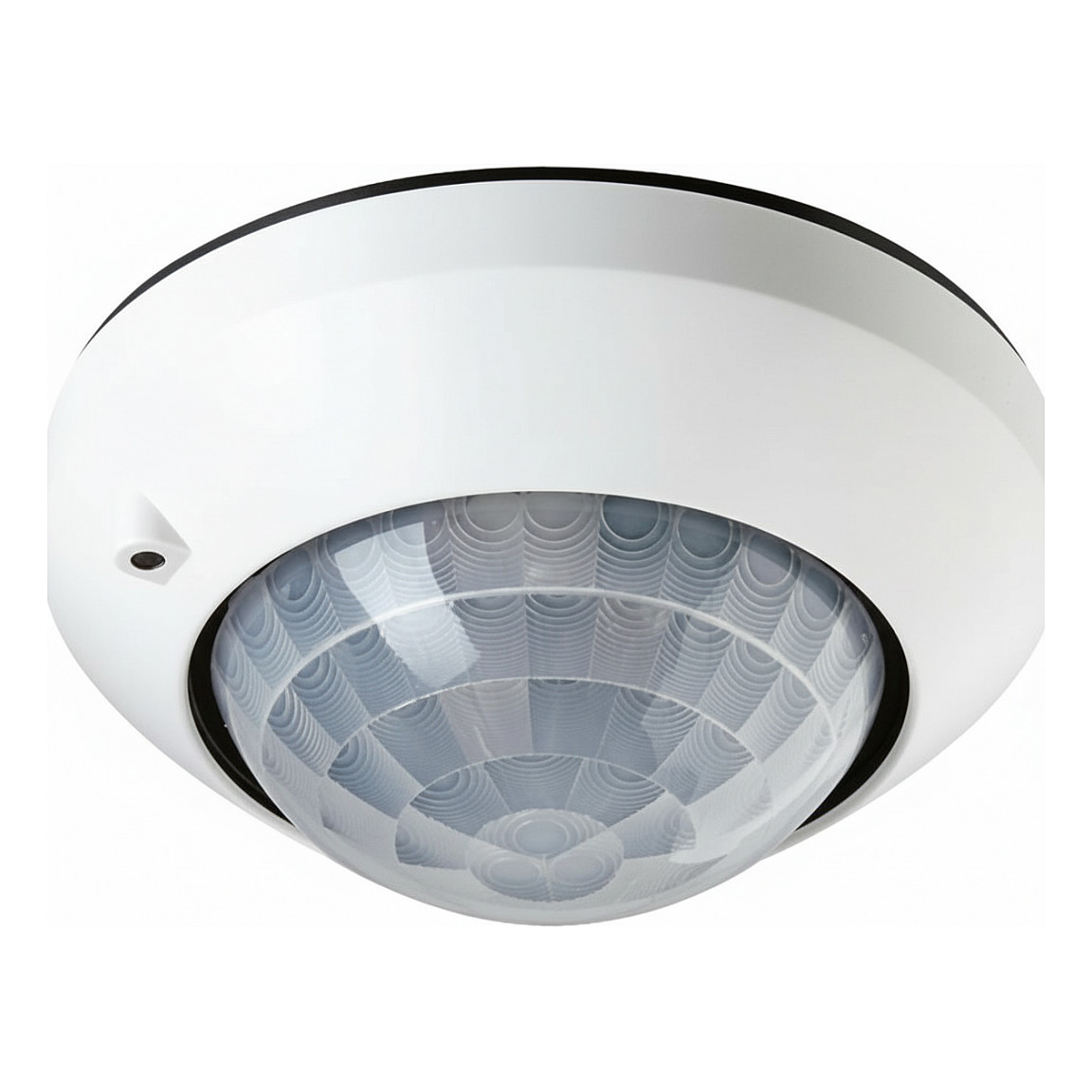

Jung 3361WW KNX Presence Detector / Ceiling Watcher Standard, Alpine White

Description

Technical Specifications

• Brand
  Jung
• Model / MPN
  3361WW
• EAN
  4011377095328
• SKU
  21179635
• Product Type
  KNX Präsenzmelder / Deckenwächter (Ceiling presence detector)
• Color
  Alpinweiß (Alpine White)
• Bus System
  KNX (integrated bus coupler)
• Operating Voltage (KNX)
  DC 21–32 V SELV
• Current Consumption (KNX)
  Max. 12.5 mA
• Detection Technology
  Passive Infrared (PIR) – 3 digital PIR sectors
• Detection Angle
  360° (3 × 120° sectors)
• Detection Range
  Ø ≈ 16–20 m at 3.00 m mounting height (coverage details vary by sector)
• Recommended Mounting Height
  3.00 m
• Brightness Sensor
  Integrated Helligkeitssensor, measuring range 0–2000 lx
• Brightness Control
  3 threshold levels; constant light control configurable
• Operating Modes
  Presence, Motion, Reporting (Meldebetrieb)
• KNX Functions
  Switching, stair-light function, forced switching, value transmitter, scene functions, operating-mode preset for temperature controllers
• Parametrization
  ETS device file included / ETS configurable per sector
• Protection Class
  III (SELV)
• IP Rating
  IP20
• Operating Temperature Range
  −5 °C to +45 °C
• Storage / Transport Temperature
  −25 °C to +70 °C
• Relative Humidity
  5%–93% (no condensation)
• Housing Material
  Plastic (glossy finish)
• Mounting Type
  Ceiling recessed (UP) or surface-mounted (AP) with optional housing
• Optional Accessories
  Surface-mount housing (Aufputzgehäuse) / PM-KAPPE-1
• Dimensions (device)
  not specified (see manufacturer datasheet)
• Weight (product)
  ~80 g (estimated)
• Documentation
  Product datasheet and ETS files available (Jung downloads)
• Typical Applications
  Offices, corridors, stairwells, living rooms, KNX smart building lighting automation
