KNX ceiling presence/motion detector (Universal) with integrated bus coupler. Features 3 PIR sensors for 360° detection, integrated light sensor (0–2000 lx), and programmable function blocks for presence, motion, signaling/monitoring and daylight-dependent light control. Intended for ceiling...
More

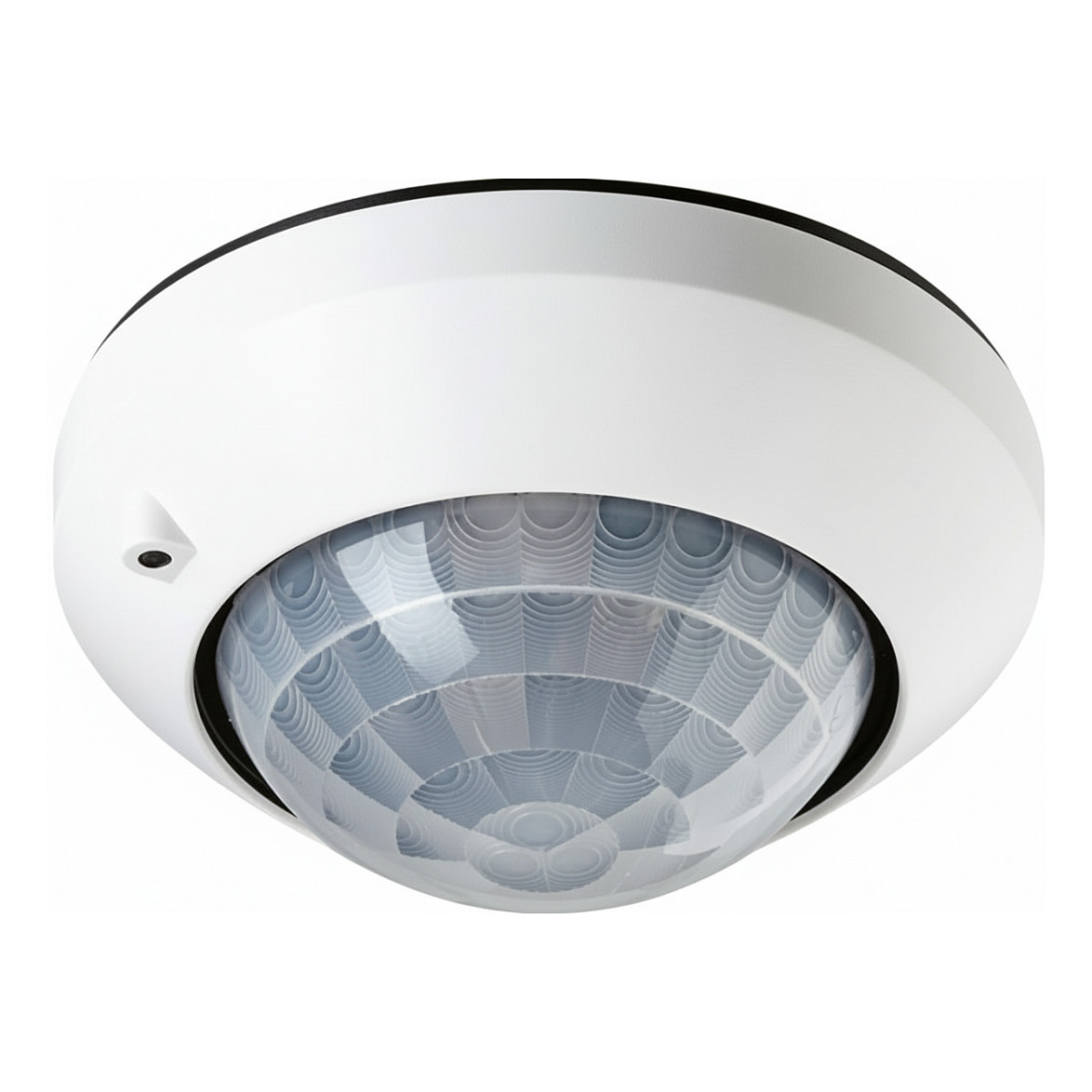

Jung 3361-1WW KNX Presence Detector / Ceiling Motion Detector Universal, 3.00 m, Alpine White
Product Code: 1173701333
Available in 4 - 6 days
301,02 €
or
9,40€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 904 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
KNX ceiling presence/motion detector (Universal) with integrated bus coupler. Features 3 PIR sensors for 360° detection, integrated light sensor (0–2000 lx), and programmable function blocks for presence, motion, signaling/monitoring and daylight-dependent light control. Intended for ceiling mounting (3.00 m nominal mounting height) in a DIN 49073 device box or surface-mounted housing. KNX rated voltage 21–32 V DC (SELV), KNX current consumption max. 12.5 mA. Supports switching, staircase-light, forced position switching, value transmitter, scene auxiliary and room-temperature presets. Manual sensitivity adjustment, status LED for motion indication. Color: Alpine white. Operating temp −5 to +45 °C. Protection class III.
-
BrandJung
-
Model / MPN3361-1WW (3361-1 WW)
-
Product typeKNX presence detector / ceiling motion detector (Präsenzmelder/Deckenwächter)
-
ETS product familyPhys. Sensoren
-
Intended mounting height3.00 m (nominal)
-
Detection method3 x PIR sensors, 360° detection field
-
Detection rangeApprox. 16–20 m (diameter depends on mounting height; typical range ~20 m at 3 m)
-
Light sensor range0–2,000 lx
-
Light sensor detection diameter~2 m
-
KNX rated voltageDC 21–32 V SELV
-
KNX current consumptionmax. 12.5 mA
-
Bus connectionConnection and branch terminal (integrated bus coupler)
-
Function blocks5 motion-detection blocks (Universal version), each with 2 outputs
-
Output functionsSwitching, staircase light, forced position switching, value transmitter, scene auxiliary station, room-temperature operating mode preset
-
Daylight controlUp to 3 channels daylight-dependent light control with adjustable setpoint shifting and ramp-up/control/dim-down phases
-
ModesPresence detection, motion detection, signaling/monitoring
-
Remote controlManual operation via IR remote (Jung KNX PM FB IR) supported (Universal version)
-
Sensitivity adjustmentManual control element
-
Status indicatorStatus LED (blink on motion; behavior programmable)
-
Mounting typesFlush (device box DIN 49073) or surface-mounted housing
-
Installation depthmin. device box depth 30 mm (retailer listing), device installation depth ~22 mm
-
MaterialThermoplastic
-
ColorAlpine white (alpinweiß)
-
Protection classIII
-
Operating temperature−5 to +45 °C
-
Storage/transport temperature−25 to +70 °C
-
Relative humidity5–93% non-condensing
-
DALI-2 certifiedNo
-
Dimensions (nominal)Designed for ceiling mount, typical installation footprint ≈ round detector module (manufacturer page provides mounting details)
-
Weight (product)~70 g (approximate)
-
Packaging weight~200 g (approximate)
Ratings
Description
KNX ceiling presence/motion detector (Universal) with integrated bus coupler. Features 3 PIR sensors for 360° detection, integrated light sensor (0–2000 lx), and programmable function blocks for presence, motion, signaling/monitoring and daylight-dependent light control. Intended for ceiling mounting (3.00 m nominal mounting height) in a DIN 49073 device box or surface-mounted housing. KNX rated voltage 21–32 V DC (SELV), KNX current consumption max. 12.5 mA. Supports switching, staircase-light, forced position switching, value transmitter, scene auxiliary and room-temperature presets. Manual sensitivity adjustment, status LED for motion indication. Color: Alpine white. Operating temp −5 to +45 °C. Protection class III.
Technical Specifications
-
BrandJung
-
Model / MPN3361-1WW (3361-1 WW)
-
Product typeKNX presence detector / ceiling motion detector (Präsenzmelder/Deckenwächter)
-
ETS product familyPhys. Sensoren
-
Intended mounting height3.00 m (nominal)
-
Detection method3 x PIR sensors, 360° detection field
-
Detection rangeApprox. 16–20 m (diameter depends on mounting height; typical range ~20 m at 3 m)
-
Light sensor range0–2,000 lx
-
Light sensor detection diameter~2 m
-
KNX rated voltageDC 21–32 V SELV
-
KNX current consumptionmax. 12.5 mA
-
Bus connectionConnection and branch terminal (integrated bus coupler)
-
Function blocks5 motion-detection blocks (Universal version), each with 2 outputs
-
Output functionsSwitching, staircase light, forced position switching, value transmitter, scene auxiliary station, room-temperature operating mode preset
-
Daylight controlUp to 3 channels daylight-dependent light control with adjustable setpoint shifting and ramp-up/control/dim-down phases
-
ModesPresence detection, motion detection, signaling/monitoring
-
Remote controlManual operation via IR remote (Jung KNX PM FB IR) supported (Universal version)
-
Sensitivity adjustmentManual control element
-
Status indicatorStatus LED (blink on motion; behavior programmable)
-
Mounting typesFlush (device box DIN 49073) or surface-mounted housing
-
Installation depthmin. device box depth 30 mm (retailer listing), device installation depth ~22 mm
-
MaterialThermoplastic
-
ColorAlpine white (alpinweiß)
-
Protection classIII
-
Operating temperature−5 to +45 °C
-
Storage/transport temperature−25 to +70 °C
-
Relative humidity5–93% non-condensing
-
DALI-2 certifiedNo
-
Dimensions (nominal)Designed for ceiling mount, typical installation footprint ≈ round detector module (manufacturer page provides mounting details)
-
Weight (product)~70 g (approximate)
-
Packaging weight~200 g (approximate)
