Combined KNX switch and shutter actuator (JUNG 230061SR). Provides 6 switch outputs and 3 shutter/blind outputs in one REG (DIN-rail) housing (4 TE). Supports AC motor control and shutter modes (lamella/shutter/vent flap/roof window), manual local operation, LED status indication, time functions...
More

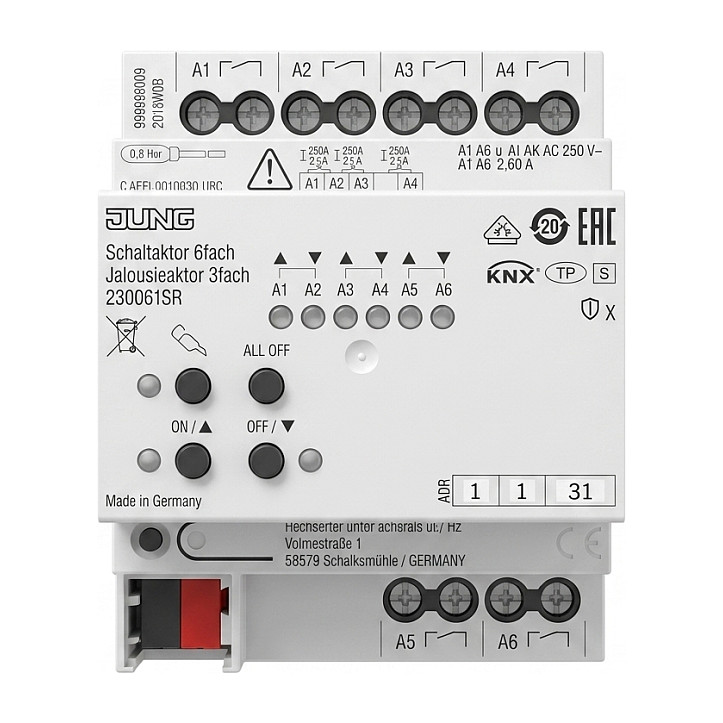

JUNG 230061SR KNX 6-fold Switch Actuator / 3-fold Shutter (Jalousie) Actuator, REG 4 TE, Secure
Product Code: 1173701335
Available in 4 - 6 days
352,55 €
or
11,01€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 1058 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
Combined KNX switch and shutter actuator (JUNG 230061SR). Provides 6 switch outputs and 3 shutter/blind outputs in one REG (DIN-rail) housing (4 TE). Supports AC motor control and shutter modes (lamella/shutter/vent flap/roof window), manual local operation, LED status indication, time functions (on/off delay, staircase light with pre-warning), scenes, operating hours counter and weather alarms (3 wind alarms, rain, frost). KNX Data Secure compatible; commissioning with ETS5 or newer.
-
BrandJUNG
-
Model / MPN230061SR
-
SKU21179720
-
EAN4011377179110
-
Product typeKNX combined switch (6x) and shutter/blind actuator (3x)
-
Bus systemKNX (twisted pair)
-
KNX nominal voltageDC 21–32 V SELV
-
Bus coupling unitYes
-
Switch outputs6
-
Shutter outputs3
-
Rated switching current (per ohmic channel)16 A
-
Maximum switching power (per channel)3000 W
-
Switching voltageAC 250 V~
-
Motor load (shutter output)1380 VA
-
Capacitive load16 A (140 µF)
-
Total current sumΣ 20 A
-
MountingDIN rail (REG)
-
Width4 TE (≈72 mm)
-
HousingREG-Gehäuse (DIN-rail module housing)
-
Manual/local operationYes (local and construction-site mode)
-
LED indicatorYes (status indication)
-
KNX Data SecureCompatible
-
CommissioningETS5 or newer
-
Time functionsSwitch-on delay, switch-off delay, staircase light with pre-warning
-
Scene functionYes
-
Operating hours counterYes
-
Safety alarms3 independent wind alarms, rain alarm, frost alarm
-
Individual channel lockingYes (via manual control or bus)
-
Extensions / ServiceParametrisation with JUNG ETS Service-App
Ratings
Description
Combined KNX switch and shutter actuator (JUNG 230061SR). Provides 6 switch outputs and 3 shutter/blind outputs in one REG (DIN-rail) housing (4 TE). Supports AC motor control and shutter modes (lamella/shutter/vent flap/roof window), manual local operation, LED status indication, time functions (on/off delay, staircase light with pre-warning), scenes, operating hours counter and weather alarms (3 wind alarms, rain, frost). KNX Data Secure compatible; commissioning with ETS5 or newer.
Technical Specifications
-
BrandJUNG
-
Model / MPN230061SR
-
SKU21179720
-
EAN4011377179110
-
Product typeKNX combined switch (6x) and shutter/blind actuator (3x)
-
Bus systemKNX (twisted pair)
-
KNX nominal voltageDC 21–32 V SELV
-
Bus coupling unitYes
-
Switch outputs6
-
Shutter outputs3
-
Rated switching current (per ohmic channel)16 A
-
Maximum switching power (per channel)3000 W
-
Switching voltageAC 250 V~
-
Motor load (shutter output)1380 VA
-
Capacitive load16 A (140 µF)
-
Total current sumΣ 20 A
-
MountingDIN rail (REG)
-
Width4 TE (≈72 mm)
-
HousingREG-Gehäuse (DIN-rail module housing)
-
Manual/local operationYes (local and construction-site mode)
-
LED indicatorYes (status indication)
-
KNX Data SecureCompatible
-
CommissioningETS5 or newer
-
Time functionsSwitch-on delay, switch-off delay, staircase light with pre-warning
-
Scene functionYes
-
Operating hours counterYes
-
Safety alarms3 independent wind alarms, rain alarm, frost alarm
-
Individual channel lockingYes (via manual control or bus)
-
Extensions / ServiceParametrisation with JUNG ETS Service-App
