The Jung 21420 1S R is a compact 1 TE KNX area/line coupler (MPN 214201SR, EAN 4011377322073). It provides galvanic isolation between two KNX lines, supports configuration as area coupler, line coupler, segment coupler (up to 4 segments), or line amplifier. It is compatible with KNX Data Secure and...
More

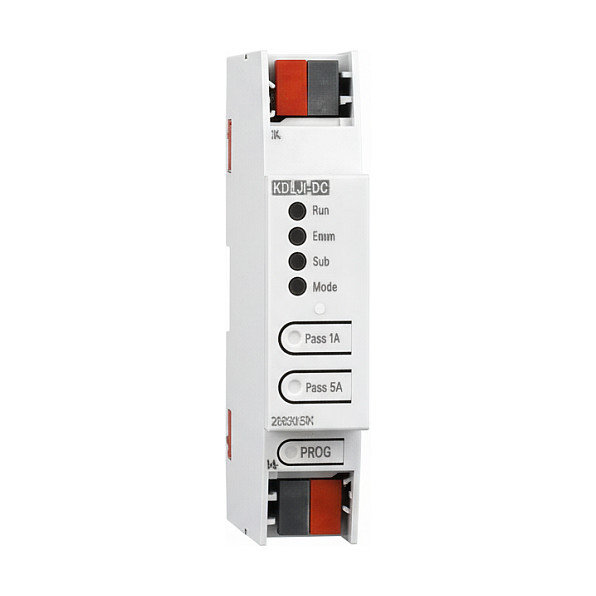

Jung 21420 1S R KNX Area/Line Coupler (214201SR)
Product Code: 1173701391
Available in 4 - 6 days
320,83 €
or
10,02€ / month
εως 36 δόσεις με πιστωτική κάρτα
With the purchase of this product you earn 963 Bytes
Quantity:
Add
Need Help? Fill in your details so we can call you immediately!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 installments 0% επιτόκιο, 20€ έως 300€
3 to 60 installments 300€ έως 100.00€
- 1. Ship with ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Pickup from BoxNow automated machine:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Pickup from the store:
Leof. El. Venizelou 73 (former Theseos), Kallithea
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
The Jung 21420 1S R is a compact 1 TE KNX area/line coupler (MPN 214201SR, EAN 4011377322073). It provides galvanic isolation between two KNX lines, supports configuration as area coupler, line coupler, segment coupler (up to 4 segments), or line amplifier. It is compatible with KNX Data Secure and Secure Proxy, supports filter tables, manual service button and ETS update via the ETS Service App. Typical dimensions ~92 x 75 x 24 mm, weight ~90 g, supply 21–32 V DC (upper line).
-
BrandJung (Albrecht Jung GmbH & Co. KG)
-
Model21420 1S R
-
MPN214201SR
-
SKU21183670
-
EAN4011377322073
-
Product TypeKNX Area/Line Coupler (Bereichs-/Linienkoppler)
-
KNX Data SecureSupported
-
Secure ProxySupported
-
FunctionsArea coupler, Line coupler, Segment coupler (up to 4 segments), Line amplifier
-
Galvanic IsolationYes (isolation between upper and lower line)
-
Filter FunctionSupports filter tables (active/inactive)
-
Manual Service ButtonYes (to deactivate filters manually)
-
Mounting TypeDIN rail (Reiheneinbaugerät / REG)
-
Width (TE)1 TE
-
Dimensions (L x W x H)92 x 75 x 24 mm
-
Product Weight~90 g
-
Package Weight~120 g (estimated)
-
Supply Voltage (KNX)21–32 V DC (via upper line)
-
Current Consumption~6 mA (upper line), ~8 mA (lower line)
-
Operating Temperature-5 °C to +45 °C
-
Storage Temperature-25 °C to +70 °C
-
Protection ClassIP20 (EN 60529)
-
Safety ClassIII (EN 61140)
-
ConnectionKNX screw terminal (upper and lower lines)
-
Country of OriginGermany
-
Customs Code (Tariff)85371098
-
Packaging Unit1
Ratings
Description
The Jung 21420 1S R is a compact 1 TE KNX area/line coupler (MPN 214201SR, EAN 4011377322073). It provides galvanic isolation between two KNX lines, supports configuration as area coupler, line coupler, segment coupler (up to 4 segments), or line amplifier. It is compatible with KNX Data Secure and Secure Proxy, supports filter tables, manual service button and ETS update via the ETS Service App. Typical dimensions ~92 x 75 x 24 mm, weight ~90 g, supply 21–32 V DC (upper line).
Technical Specifications
-
BrandJung (Albrecht Jung GmbH & Co. KG)
-
Model21420 1S R
-
MPN214201SR
-
SKU21183670
-
EAN4011377322073
-
Product TypeKNX Area/Line Coupler (Bereichs-/Linienkoppler)
-
KNX Data SecureSupported
-
Secure ProxySupported
-
FunctionsArea coupler, Line coupler, Segment coupler (up to 4 segments), Line amplifier
-
Galvanic IsolationYes (isolation between upper and lower line)
-
Filter FunctionSupports filter tables (active/inactive)
-
Manual Service ButtonYes (to deactivate filters manually)
-
Mounting TypeDIN rail (Reiheneinbaugerät / REG)
-
Width (TE)1 TE
-
Dimensions (L x W x H)92 x 75 x 24 mm
-
Product Weight~90 g
-
Package Weight~120 g (estimated)
-
Supply Voltage (KNX)21–32 V DC (via upper line)
-
Current Consumption~6 mA (upper line), ~8 mA (lower line)
-
Operating Temperature-5 °C to +45 °C
-
Storage Temperature-25 °C to +70 °C
-
Protection ClassIP20 (EN 60529)
-
Safety ClassIII (EN 61140)
-
ConnectionKNX screw terminal (upper and lower lines)
-
Country of OriginGermany
-
Customs Code (Tariff)85371098
-
Packaging Unit1
